Rear Closure Signal Lamp Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

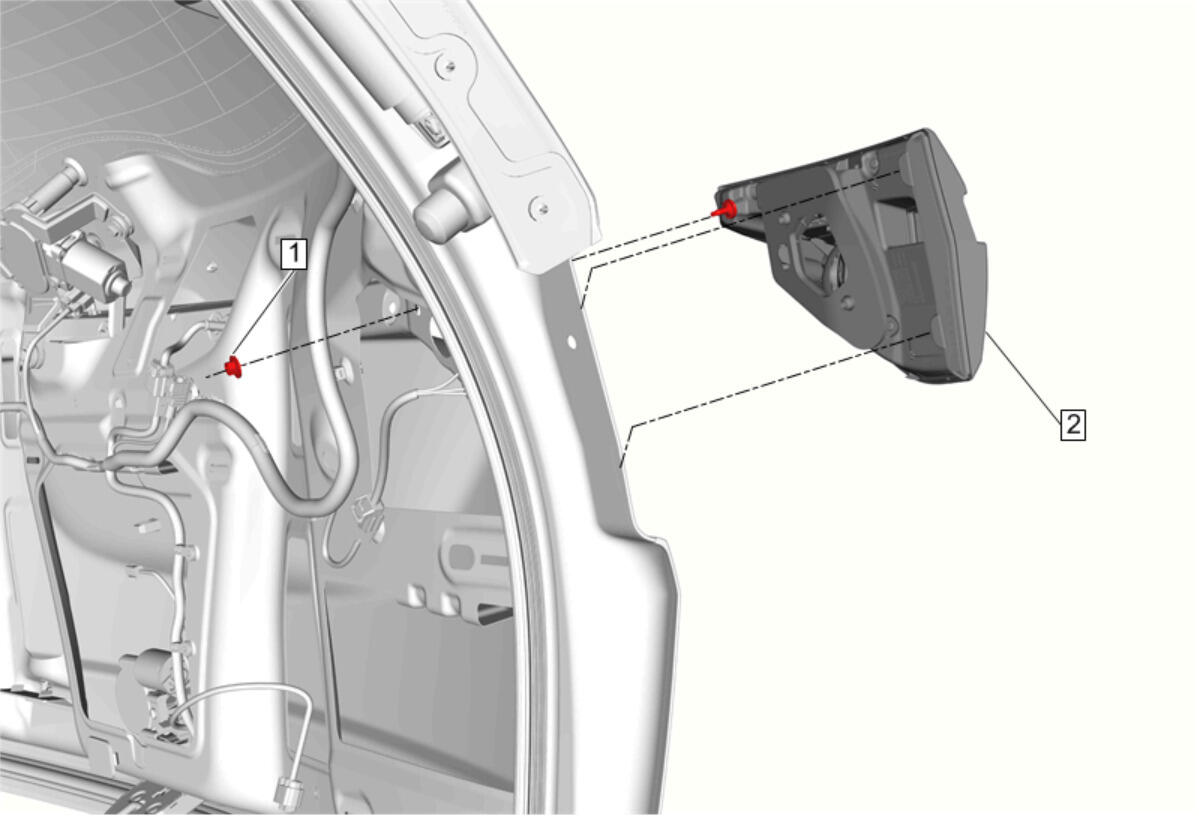

Callout	Component Name
Preliminary Procedure Rear Closure Center Applique Replacement
1	Rear Closure Signal Lamp Nut CAUTION: Refer to Fastener Caution Tighten 4.7 N.m (42 lb/in)
2	Rear Closure Signal Lamp Procedure Disconnect the electrical connector. Pull lamp rearward and tilt outward to remove from liftgate.

Callout

Component Name

Preliminary Procedure
Rear Closure Center Applique Replacement

Rear Closure Signal Lamp Nut

CAUTION:

Refer to Fastener Caution

Tighten
4.7 N.m (42 lb/in)

Rear Closure Signal Lamp

Procedure

Disconnect the electrical connector.
Pull lamp rearward and tilt outward to remove from liftgate.
