Installation Procedure

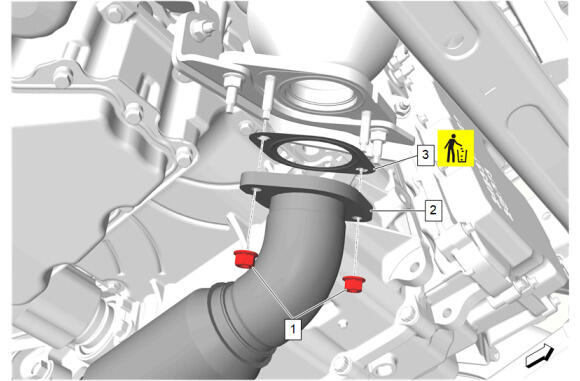

  1. GM5918807Courtesy of GENERAL MOTORS COMPANY

    Exhaust System Front Gasket (3) - Install a NEW gasket.

  2. Exhaust Front Pipe (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Catalytic Converter Nut (1) - Install and tighten [ 2x ] 22 N.m (16 lb ft)

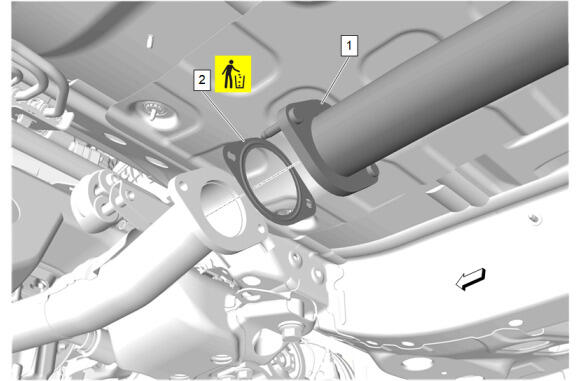

  4. GM5918791Courtesy of GENERAL MOTORS COMPANY

    Exhaust System Intermediate Gasket (2) - Install a NEW gasket.

  5. Exhaust Muffler Assembly (1) @ Exhaust Front Pipe - Install

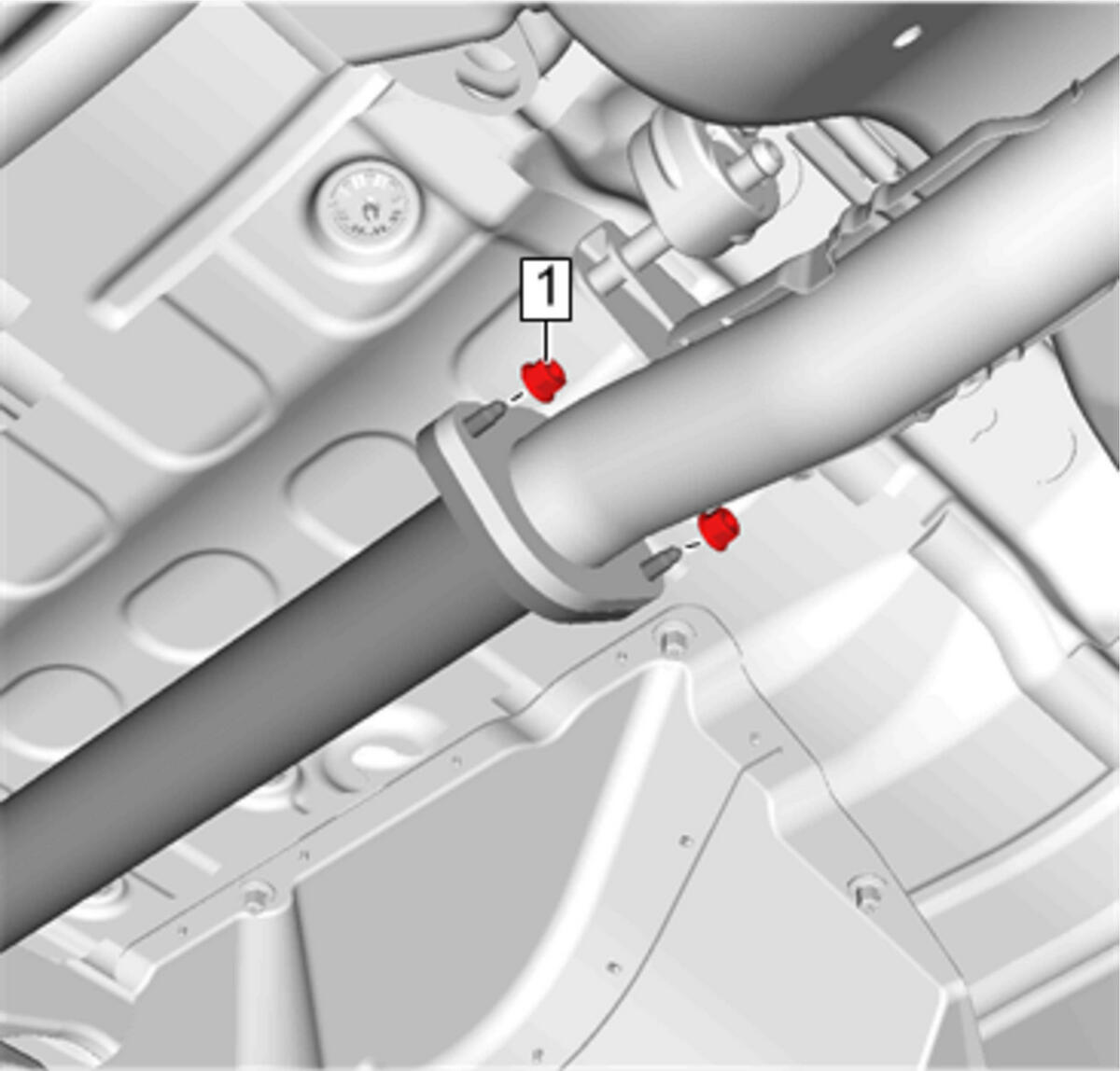

  6. GM4587121Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe Nut (1) - Install and tighten [ 2x ] 25 N.m (18 lb ft)

  7. Remove the supports and lower the vehicle.
