Removal Procedure

  1. Open and support the endgate.

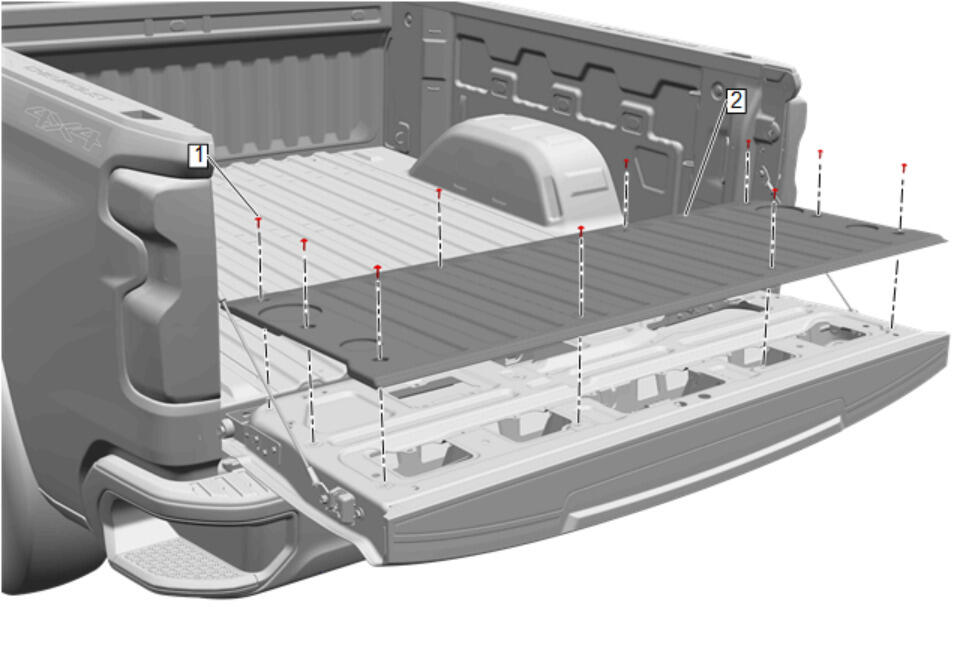

  2. GM5027558Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Remove [10x]

  3. Pickup Box Endgate Access Hole Cover Panel (2) - Remove

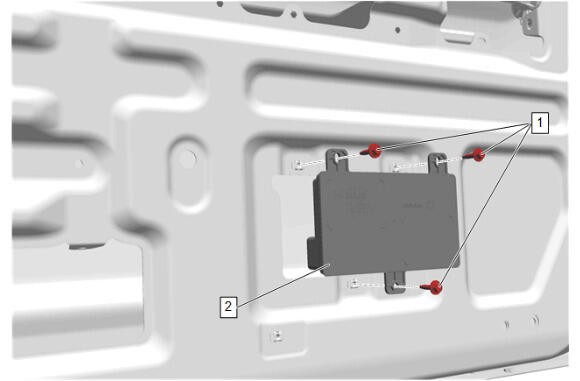

  4. GM5908754Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  5. Latch Control Module Bracket Bolt (1) - Remove [3x]
  6. Rear Gate Module (2) - Remove
