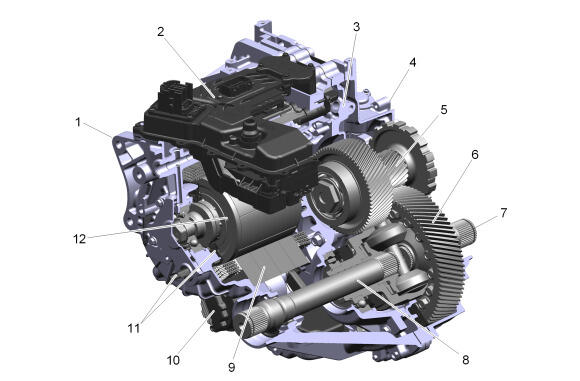

Component Location
| Callout | Component Name |
|---|---|
| 1 | Drive Motor Housing |
| 2 | Drive Motor Power Inverter Module |
| 3 | Center Support |
| 4 | Automatic Transmission Case |
| 5 | Automatic Transmission Differential Final Drive Pinion Gear |
| 6 | Automatic Transmission Differential Carrier |
| 7 | Output Shaft |
| 8 | Output Shaft |
| 9 | Drive Motor Stator |
| 10 | Automatic Transmission Fluid Pump |
| 11 | Drive Motor Position Sensor Stator |
| 12 | Drive Motor Rotor |
