Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

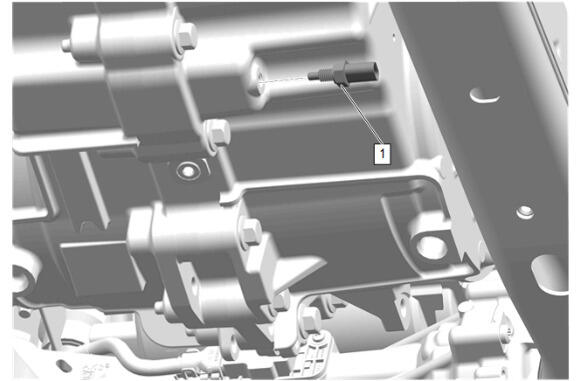

Automatic Transmission Fluid Temperature Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Remove the drain pan.
Check the transmission fluid level. Transmission Fluid Level and Condition Check
Courtesy of GENERAL MOTORS COMPANY

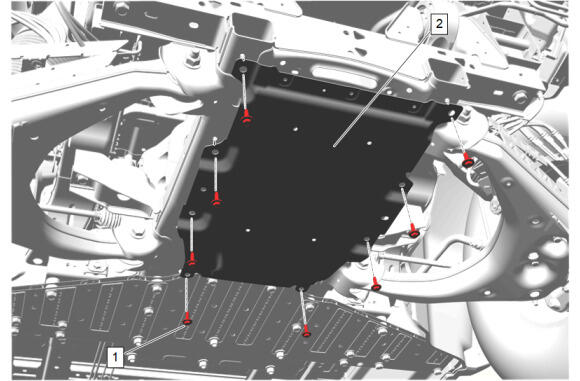

Underbody Skid Rear Shield (2) - Install - Underbody Skid Rear Shield Replacement
