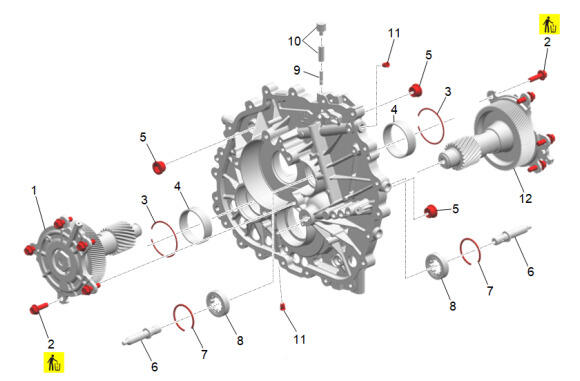

| 1 |
Automatic Transmission Differential Final Drive Pinion Gear Bearing Support- Left Side |
| 2 |
Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt [10x] |
| 3 |
Automatic Transmission Differential Carrier Bearing Retaining Ring [2x] |
| 4 |
Automatic Transmission Differential Carrier Bearing Race [2x] |
| 5 |
Transmission Fluid Drain Plug-Large [3x] |
| 6 |
Drive Motor Rotor Cooling Tube [2x] |
| 7 |
Drive Motor Rotor Bearing Retaining Ring [2x] |
| 8 |
Drive Motor Rotor Bearing [2x] |
| 9 |
Automatic Transmission Vent Pipe |
| 10 |
Transmission Vent Hose |
| 11 |
Transmission Fluid Drain Plug [2x] |
| 12 |
Automatic Transmission Differential Final Drive Pinion Gear Bearing Support- Right Side |
