Component Location

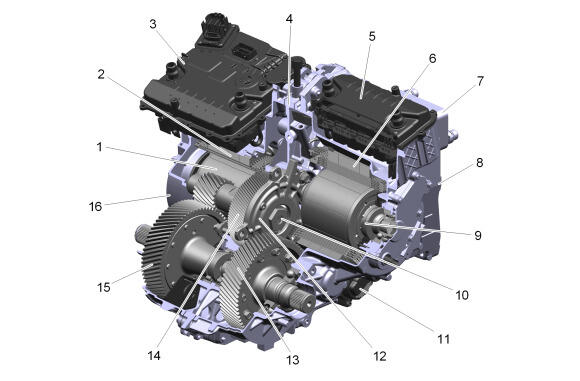

GM5832335Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Drive Motor Rotor-Right Side
2 Drive Motor Stator-Right Side
3 Drive Motor Power Inverter Module-Right Side
4 Center Support
5 Drive Motor Power Inverter Module-Left Side
6 Drive Motor Stator-Left Side
7 Automatic Transmission Fluid Cooling Exchanger
8 Drive Motor Housing-Left Side
9 Drive Motor Rotor-Left Side
10 Automatic Transmission Differential Final Drive Pinion Gear Bearing Bolt
11 Automatic Transmission Fluid Pump
12 Front Differential Transfer Drive Gear Support-Right Side
13 Final Drive Ring Gear-Left Side
14 Automatic Transmission Differential Final Drive Pinion Gear-Right Side
15 Final Drive Ring Gear-Right Side
16 Drive Motor Housing-Right Side
