Installation Procedure

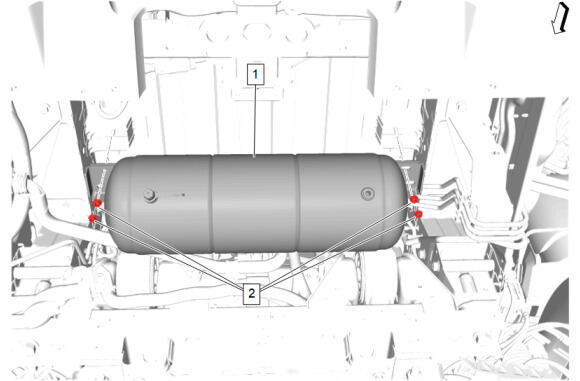

Automatic Level Control Air Supply Reservoir (1) - Install
- Automatic Level Control Air Supply Reservoir Nut (2) - Install and tighten [4x] - Fastener Specifications

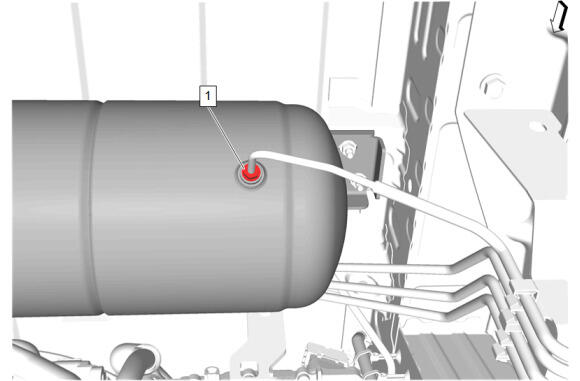

Install the automatic level control air compressor tube fitting (1) to the automatic level control air supply reservoir and tighten. Fastener Specifications
Remove the automatic level control air supply reservoir coupling cap (1).
- Install CH-52667 Air Spring Inflator to the automatic level control air supply reservoir coupling (2) and set the regulator on the nitrogen tank to 16 Bar (232 PSI).
- Using CH-52667 Air Spring Inflator, open the valve on the pressure gage to fill the automatic level control air supply reservoir.
- Using CH-52667 Air Spring Inflator and the shop nitrogen tank, fill the automatic level control air supply reservoir to 16 Bar (232 PSI).
- Close the pressure gauge valve and remove CH-52667 Air Spring Inflator from the automatic level control air supply reservoir coupling.
- Install the automatic level control air supply reservoir coupling cap (1) and tighten. Fastener Specifications
Underbody Rear Air Rear Deflector (1) - Install
- CAUTION:
Refer to Fastener Caution .
Underbody Rear Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications
Underbody Rear Air Deflector Bolt (1) - Install and tighten [17x] - Fastener Specifications
Underbody Rear Air Deflector Retainer (1) - Install [3x]
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
