Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
  3. GM5810325
    NOTE:

    Left side shown, right side similar.

    Rear Wheelhouse Liner Retainer (2) - Remove

  4. Rear Wheelhouse Liner Bolt (1) - Remove [9x]
  5. Rear Wheelhouse Panel Rear Liner (3) - Remove

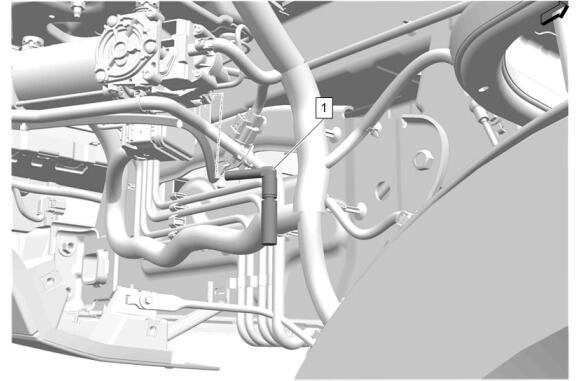

  6. GM5901611

    Remove the automatic level control air compressor tube (1).
