Removal Procedure

  1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

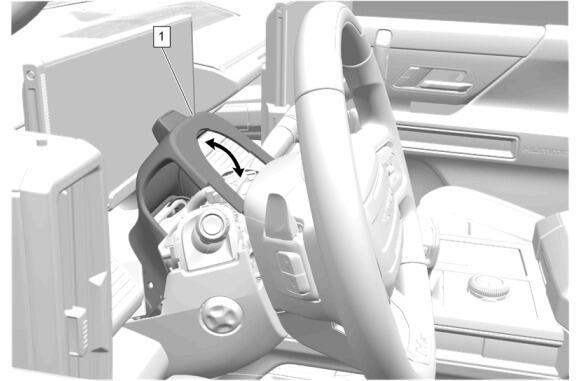

  2. GM5819296Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover and reposition.

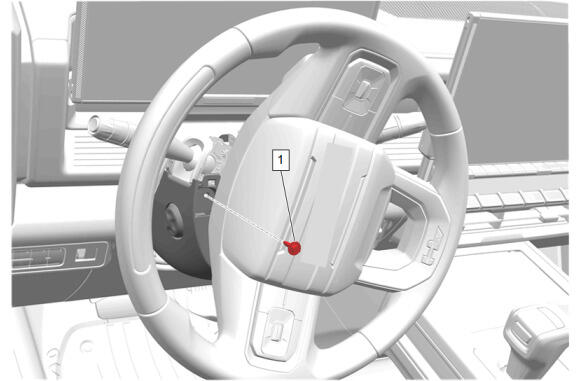

  3. GM5821242Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  4. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove

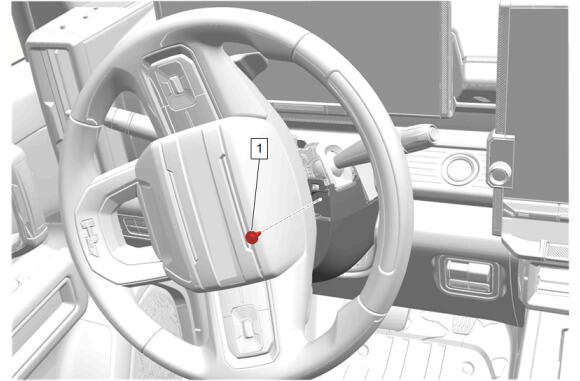

  5. GM5821243Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  6. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
  7. Turn the steering wheel to the centered position.

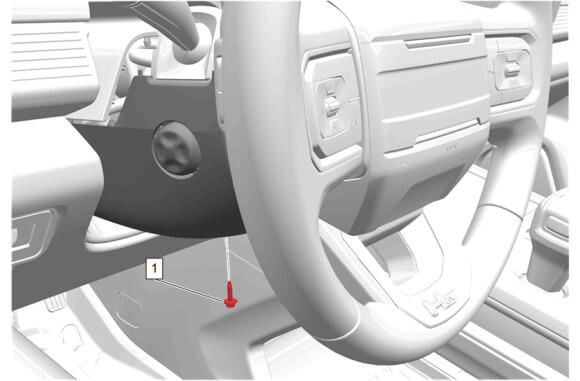

  8. GM5821244Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove

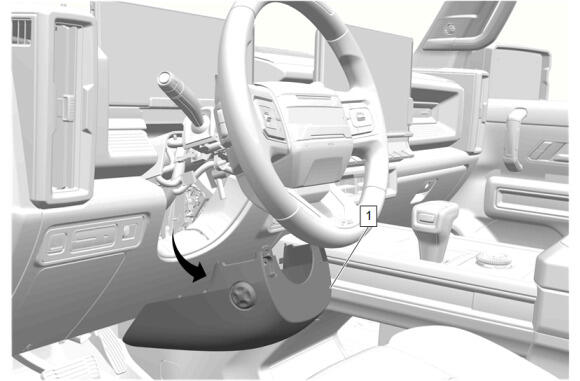

  9. GM5821245Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (1) - Remove

  10. Disconnect the electrical connectors.

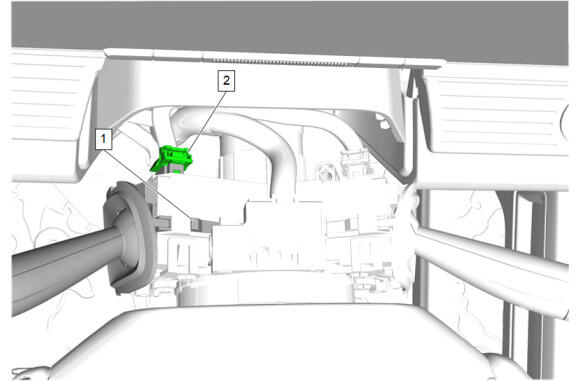

  11. GM5833018Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (2)

  12. Disengage the turn signal switch upper retaining tab (1).

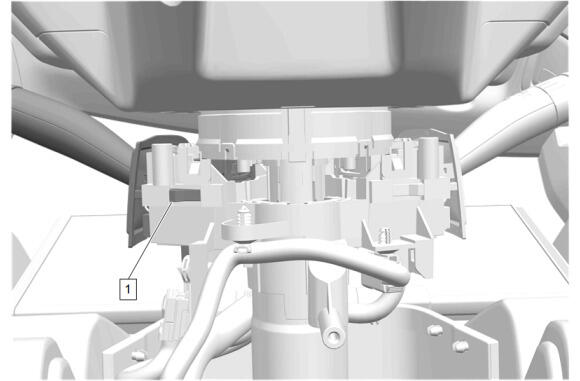

  13. GM5833019Courtesy of GENERAL MOTORS COMPANY

    Disengage the turn signal switch lower retaining tab (1).

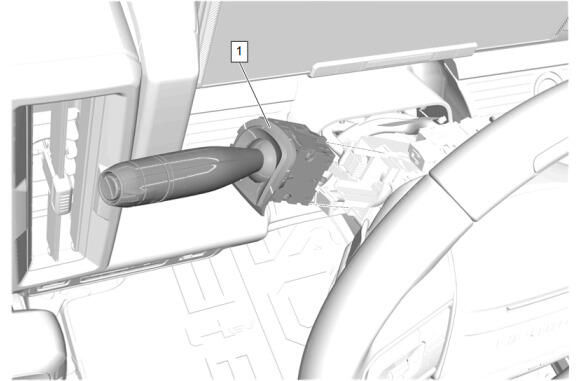

  14. GM5833021Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Remove
