Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5775549Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  3. Instrument Panel Outer Trim Cover (1) - Remove
  4. GM5796820Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Remove

  5. Instrument Panel Knee Bolster Bolt (2) - Remove [2x]
  6. GM5796821Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  7. Reposition the component to access the electrical connectors.
  8. Disconnect the electrical connectors.
  9. Instrument Panel Knee Bolster (1) - Remove
  10. Disconnect the electrical connector.
  11. GM5810457Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Use a flat bladed plastic trim tool to depress the steering wheel airbag access hole cover detents to remove the left and right steering wheel airbag access hole covers (1).

  12. GM5810539Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Bolt (1) - Remove [2x]

  13. Release the connector position assurance (CPA) retainer.
  14. Disconnect the electrical connectors.
  15. Steering Wheel Airbag (2) - Remove
  16. GM5814882Courtesy of GENERAL MOTORS COMPANY

    Upper Intermediate Steering Shaft Bolt (1) @ Steering Column - Loosen

  17. GM5814887Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) - Remove

  18. Steering Wheel (2) - Remove
  19. Disconnect the electrical connector.
  20. Install an appropriate device to prevent steering column rotation.
  21. GM5814882Courtesy of GENERAL MOTORS COMPANY

    Upper Intermediate Steering Shaft Bolt (1) @ Steering Column - Remove

  22. Upper Intermediate Steering Shaft @ Steering Column - Separate
  23. GM5814896Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover and reposition.

  24. Disconnect the electrical connector.
  25. GM5814903Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove [3x]

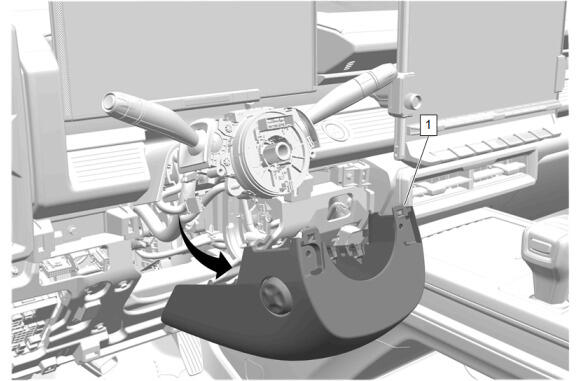

  26. GM5814906Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (1) - Remove

  27. Disconnect the electrical connector.

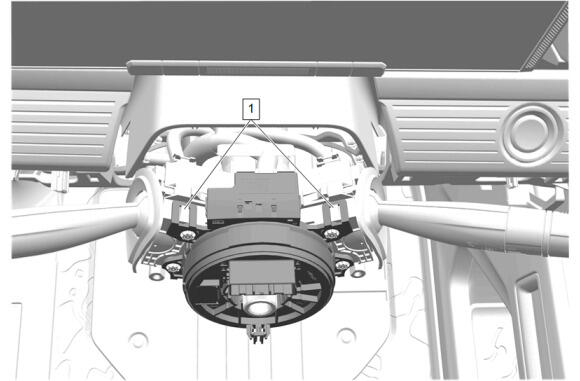

  28. GM5814911Courtesy of GENERAL MOTORS COMPANY

    Disengage the steering wheel airbag coil upper retaining tabs (1).

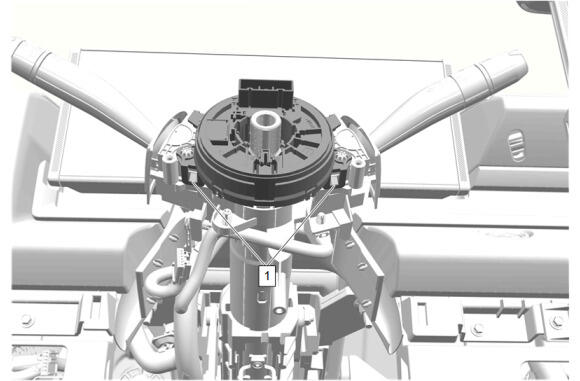

  29. GM5814912Courtesy of GENERAL MOTORS COMPANY

    Disengage the steering wheel airbag coil lower retaining tabs (1).

  30. Disconnect the electrical connector.
  31. GM5814916Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Coil (1) - Remove

  32. GM5819218Courtesy of GENERAL MOTORS COMPANY

    Remove the wiring harness clip (2) and wiring harness retainer (3) on the left side of the turn signal bracket.

  33. Disconnect the electrical connector. (1)
  34. GM5819220Courtesy of GENERAL MOTORS COMPANY

    Remove the wiring harness retainer (2) on the right side of the turn signal bracket.

  35. Disconnect the electrical connector. (1)
  36. GM5819222Courtesy of GENERAL MOTORS COMPANY

    Release the locking tab (1) on the left side of the turn signal switch bracket.

  37. GM5819226Courtesy of GENERAL MOTORS COMPANY

    Release the locking tab (1) on the right side of the turn signal switch bracket.

  38. GM5819228Courtesy of GENERAL MOTORS COMPANY

    Remove the turn signal switch, windshield wiper and windshield washer switch, and turn signal switch bracket (1) as an assembly.

  39. GM5819232Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut (1) - Remove [4x]

  40. Disconnect the steering column electrical connectors as necessary.
  41. GM5819235Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Remove

  42. GM5845933Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module Bracket Bolt (1) - Remove [2x]

  43. GM5832939Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors. (1)

  44. Retainer (2) - Remove
  45. GM5832346Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module (1) - Remove

  46. GM5845846Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel Actuator Bolt (1) - Remove [2x]

  47. GM5823635Courtesy of GENERAL MOTORS COMPANY

    Steering Column Bracket Bolt (1) - Remove [2x]

  48. Steering Column Tilt Wheel Actuator Bracket (2) - Remove
  49. GM5823639Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel Actuator Motor (1) - Remove

  50. GM5845849Courtesy of GENERAL MOTORS COMPANY

    Steering Column Telescope Actuator Bolt (1) - Remove [2x]

  51. GM5832941Courtesy of GENERAL MOTORS COMPANY

    Steering Column Telescope Actuator Motor (1) - Remove
