Installation Procedure

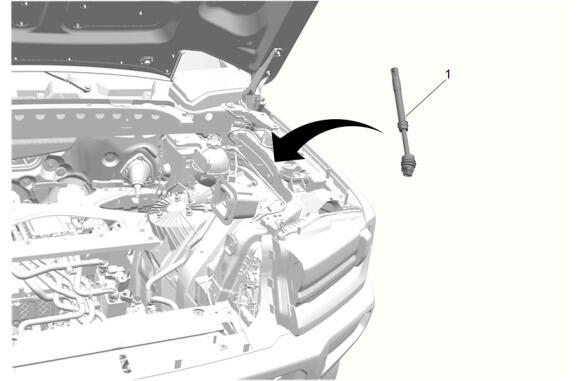

Intermediate Steering Shaft (1) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

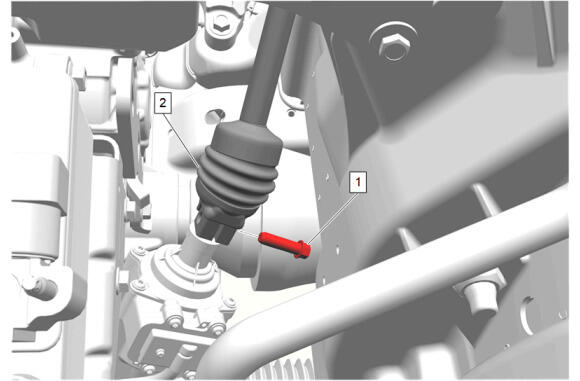

- Intermediate Steering Shaft Lower Bolt (1) - Install and tighten - Fastener Specifications
Intermediate Steering Shaft (1) @ Upper Intermediate Steering Shaft - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
- Mid Intermediate Steering Shaft Bolt (1) - Install and tighten - Fastener Specifications
- Remove the device used to prevent steering column rotation.
- Front Trim Finish Compartment - Install - Front Trim Finish Compartment Replacement
CAUTION:
Refer to Fastener Caution .
