Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

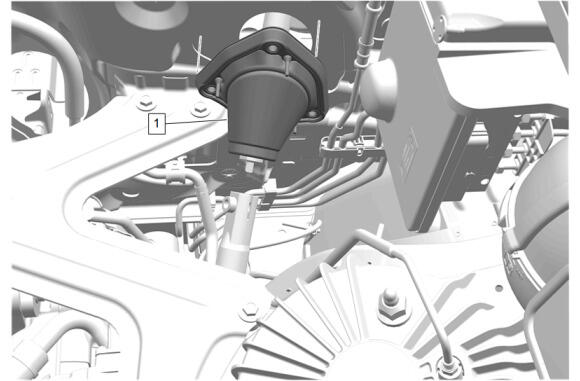

Intermediate Steering Shaft Boot (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

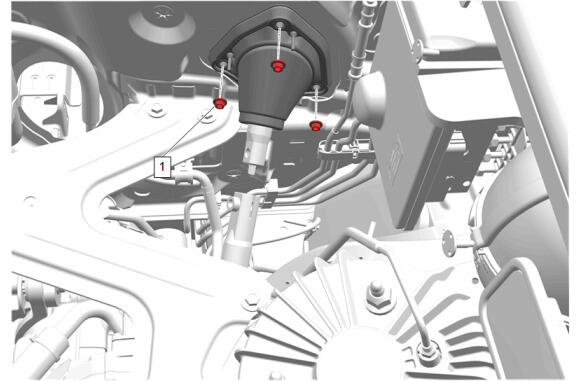

Steering Column Seal Nut (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

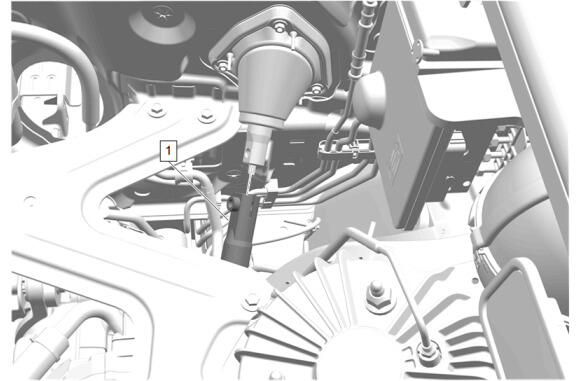

Intermediate Steering Shaft (1) @ Upper Intermediate Steering Shaft - Install
Courtesy of GENERAL MOTORS COMPANY

If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
Mid Intermediate Steering Shaft Bolt (1) - Install and tighten - Fastener Specifications
Remove the device used to prevent steering column rotation.
Front Trim Finish Compartment - Install - Front Trim Finish Compartment Replacement
