Installation Procedure

  1. GM5898743Courtesy of GENERAL MOTORS COMPANY

    Accelerator Pedal (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Accelerator Pedal Nut (1) - Install and tighten [2x] - Fastener Specifications

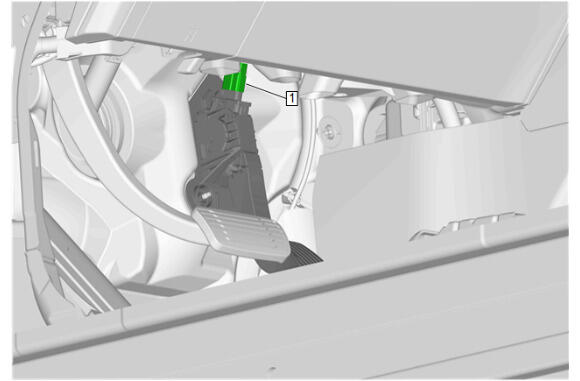

  3. GM5898741Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)
