Removal Procedure

Turn vehicle power OFF and remove all keyless entry transmitters from the vehicle and secure in a place outside the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation
Drain the drive motor battery cooling system. Drive Motor Battery Cooling System Draining and Filling
Courtesy of GENERAL MOTORS COMPANY

Underbody Splash Shield Bolt- Upper (1) - Remove [6x]
Underbody Splash Shield Bolt- Lower (2) - Remove [3x]
Disconnect the electrical connector.
Underbody Splash Shield (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

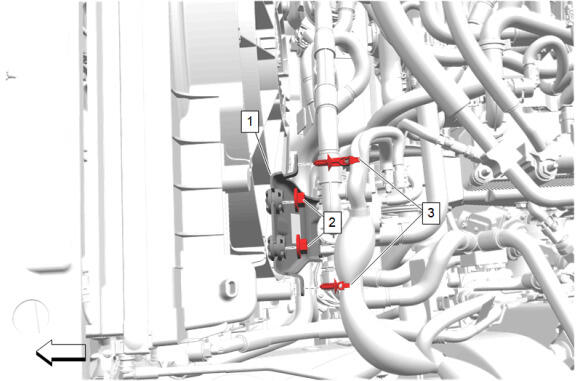

Disconnect and reposition harness as necessary.
Drive Motor Battery Control Module Bracket Nut- Left Side and Right Side (2) - Remove [4x]
Drive Motor Control Module Bracket- Left Side and Right Side (1) - Reposition away [2x]
Courtesy of GENERAL MOTORS COMPANY

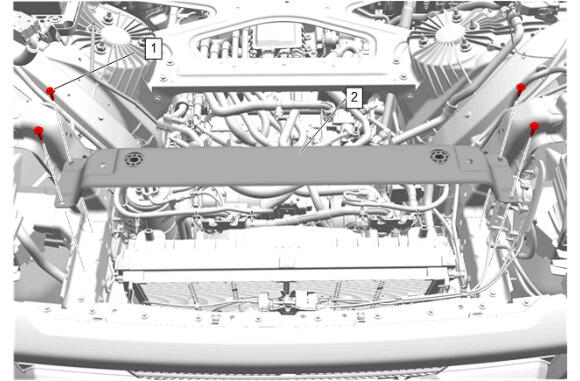

Radiator Support Bolt (1) - Remove [4x]
Radiator Upper Support (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

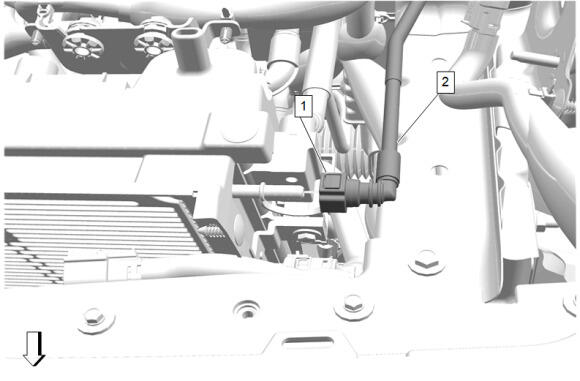

Push in tabs on connector (1) to release internal retainers.
Drive Motor Battery Surge Tank Inlet Hose (2) @ Engine Radiator - Remove
Courtesy of GENERAL MOTORS COMPANY

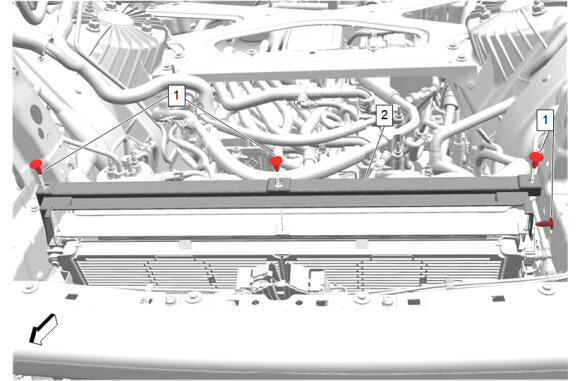

Radiator Air Upper Baffle Retainer (1) - Remove [4x]
Radiator Air Upper Baffle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Bumper Shutter Bolt (1)- Left Side and Right Side - Remove [4x]
Hood Front Bumper Bracket Support- Left Side and Right Side (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Shutter Bolt (1) - Remove [6x]
Disconnect the electrical connector.
Front Bumper Shutter (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

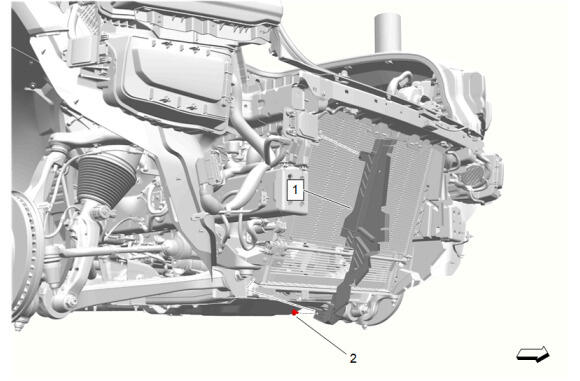

Radiator Air Side Baffle Retainer (2) @ Radiator Air Side Baffle (1) - Remove
Radiator Air Side Baffle- Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Release
Drive Motor Control Module Radiator Outlet Hose (2) @ Engine Radiator - Remove
Courtesy of GENERAL MOTORS COMPANY

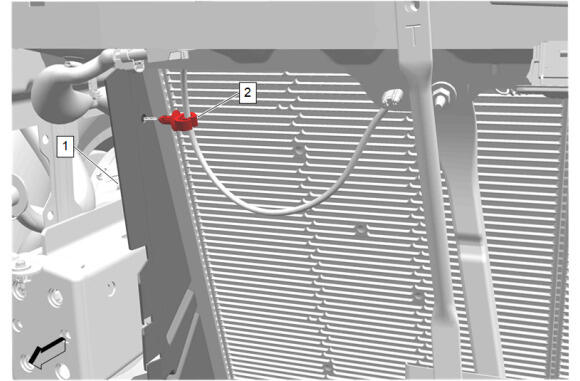

{ If equipped } Hood Primary Latch Release Cable Clip (2) @ Radiator Air Side Baffle (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

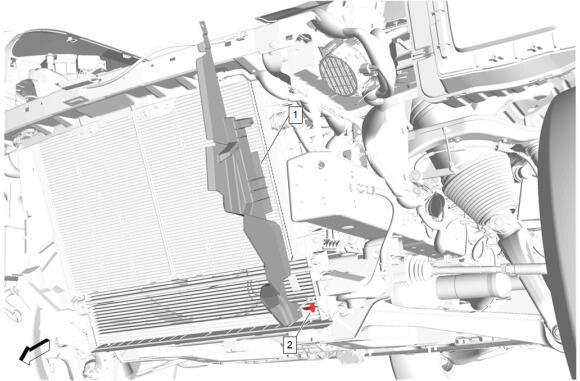

Radiator Air Side Baffle Retainer (2) @ Radiator Air Side Baffle (1) - Remove
Radiator Air Side Baffle- Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Retainer (2) - Release
Drive Motor Control Module Radiator Inlet Hose (1) @ Engine Radiator - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

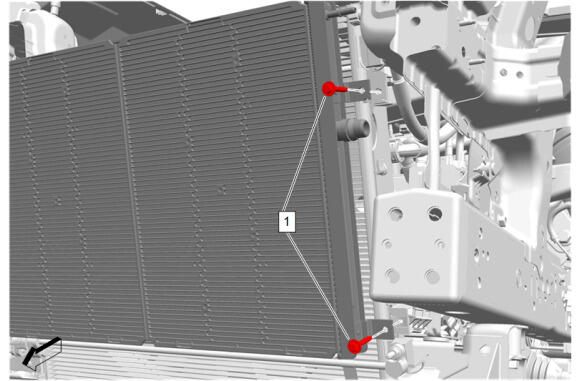

Radiator Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

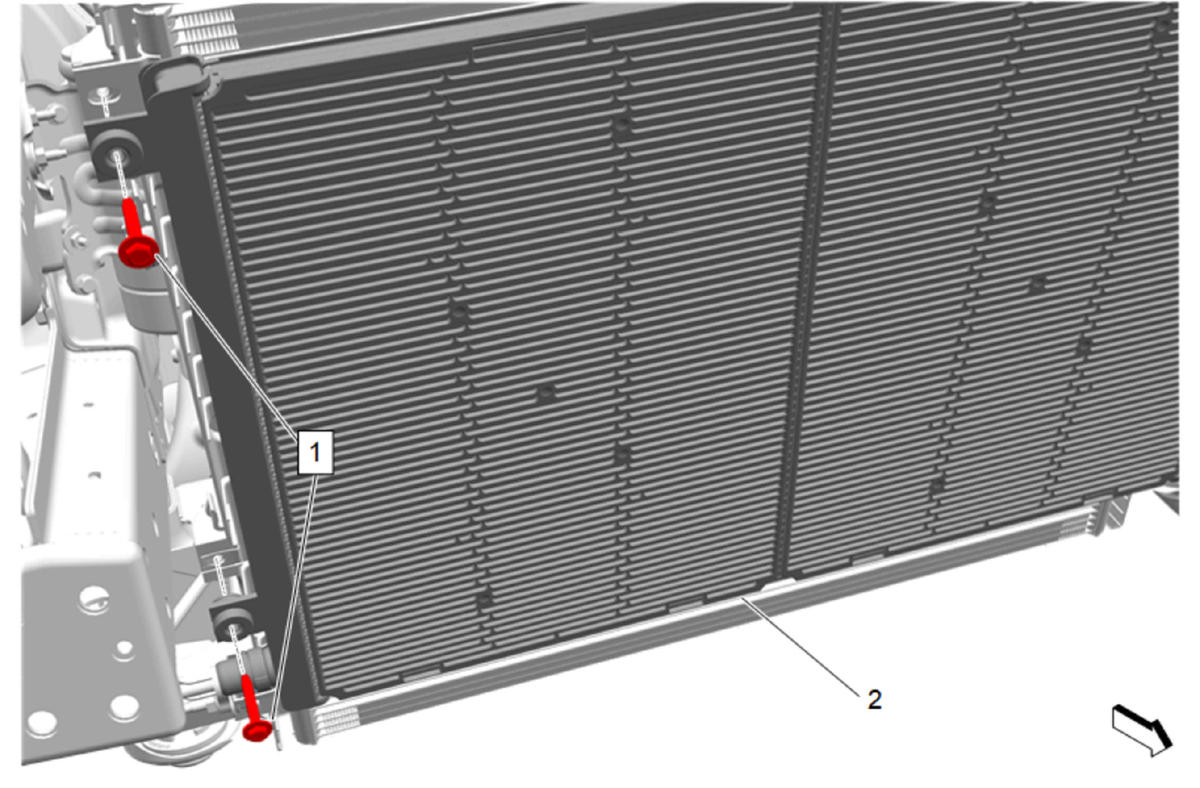

Radiator Bolt (1) - Remove [2x]
Engine Radiator (2) - Remove
