Removal Procedure

  1. Remove the rear cradle assembly. Rear Suspension Cradle Removal and Installation

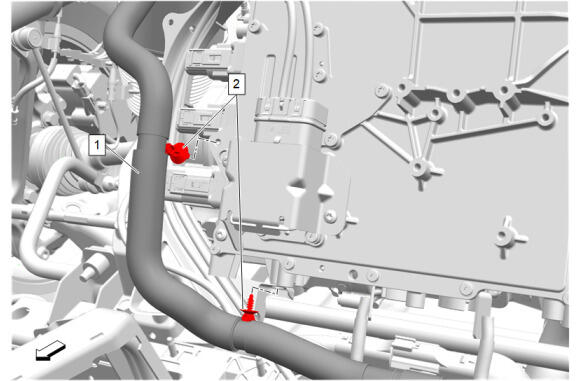

  2. GM5903534Courtesy of GENERAL MOTORS COMPANY

    Generator Control Module Coolant Pipe Clip (2) @ Drive Motor Power Distribution Control Module Hose (1) - Remove [2x]

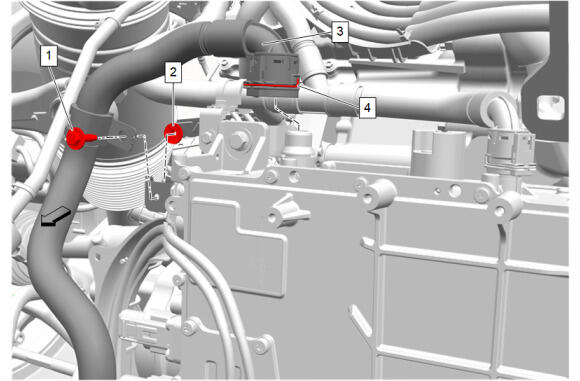

  3. GM5903558Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Bolt (1) - Remove

  4. Drive Motor Power Inverter Module Nut (2) - Remove
  5. Retainer (4) - Disengage
  6. Drive Motor Power Distribution Control Module Hose (3) - Remove
