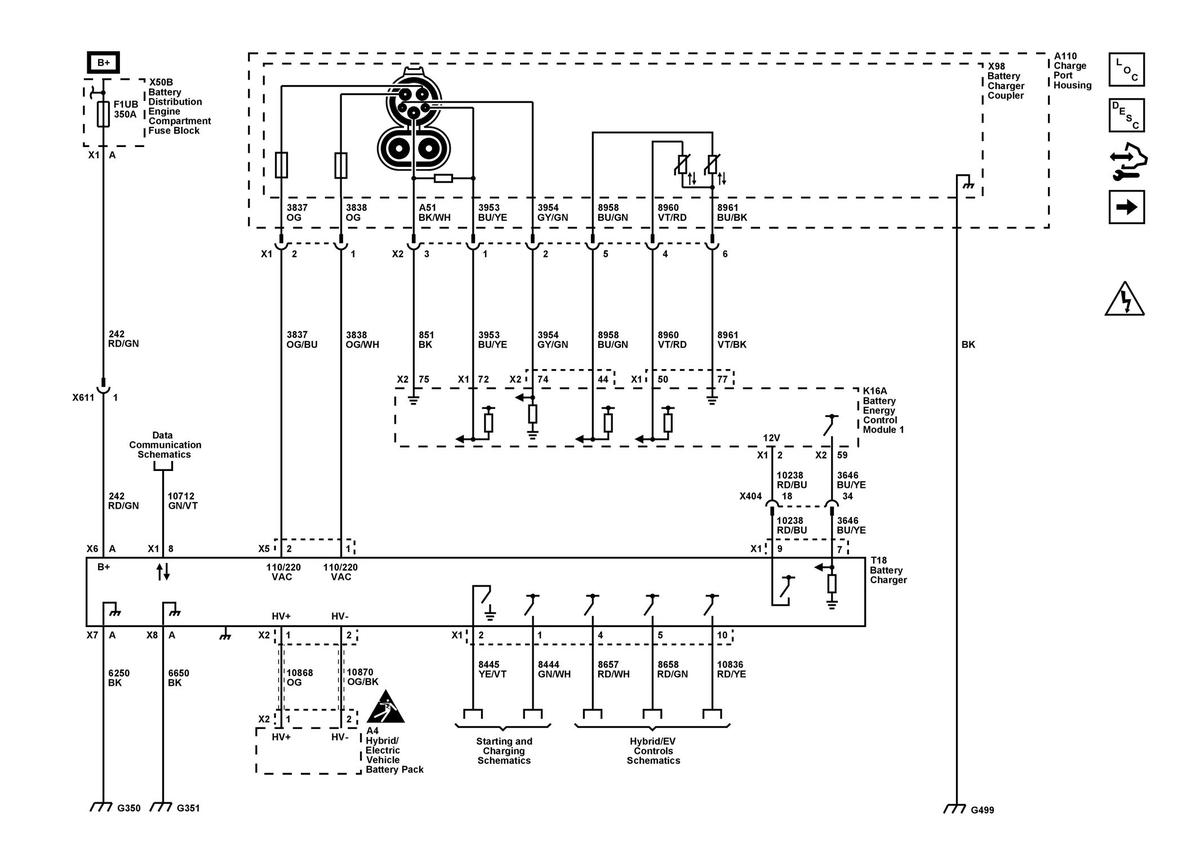

Home >> GMC >> 2022 >> Hummer EV >> Repair and Diagnosis >> Electrical >> Charging Systems >> Plug-In Charging System >> Schematic Wiring Diagrams >> Plug-In Charging Wiring Schematics >> AC Power - Battery Charging
