Installation Procedure

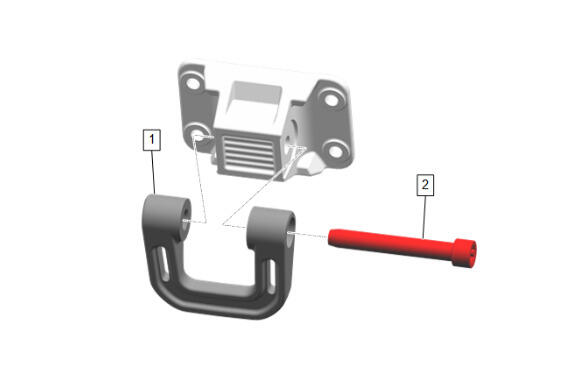

  1. GM5903694

    Front Tow Hook (1) - Install

  2. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  3. Front Tow Hook Bolt (2) - Install and tighten [1x] - Fastener Specifications

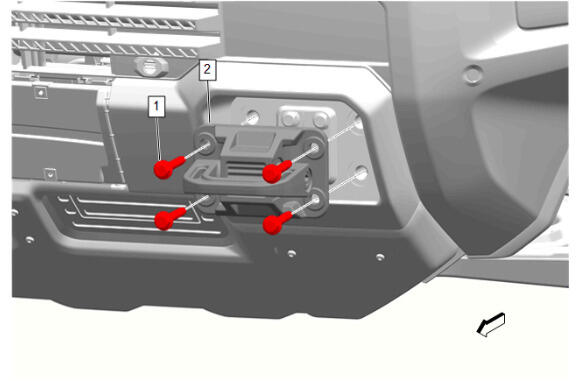

  4. GM5903662

    Front Tow Hook Bracket (2) - Install

  5. Front Tow Hook Bolt (1) - Install and tighten [4x] - Fastener Specifications
