Installation Procedure

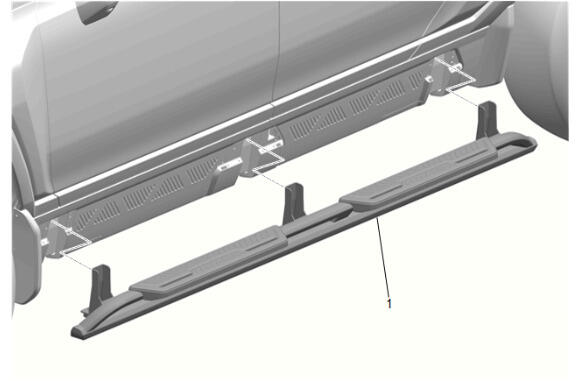

  1. GM5910725

    With the aid of an assistant, install the assist step (1).

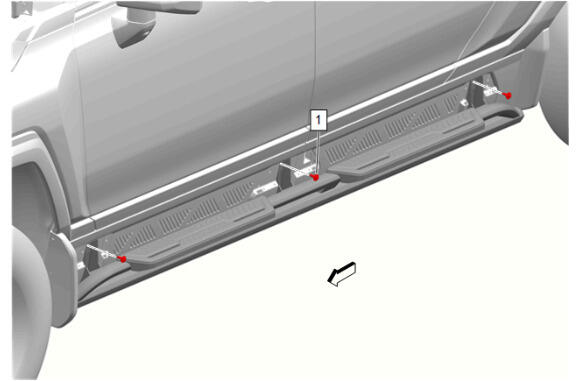

  2. GM5910712
    CAUTION:

    Refer to Fastener Caution

    Assist Step Bolt (1) - Install and tighten [3x] - Fastener Specifications

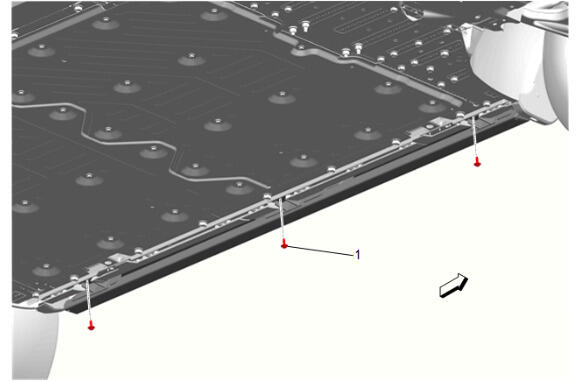

  3. GM5910715

    Assist Step Bolt (1) - Install and tighten [3x] - Fastener Specifications

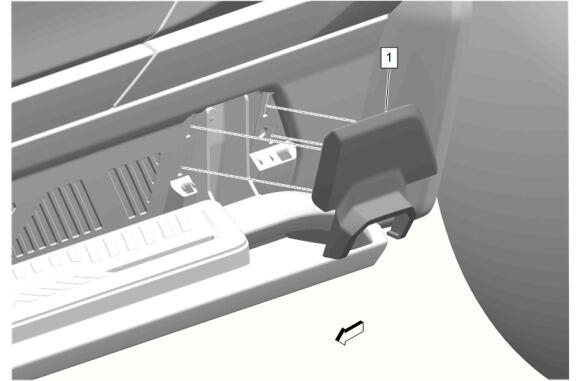

  4. GM5911748

    Assist Step Bracket Cover- Rear (1) - Install

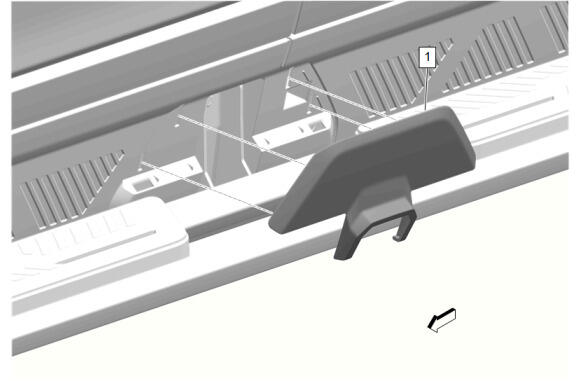

  5. GM5911745

    Assist Step Bracket Cover- Center (1) - Install

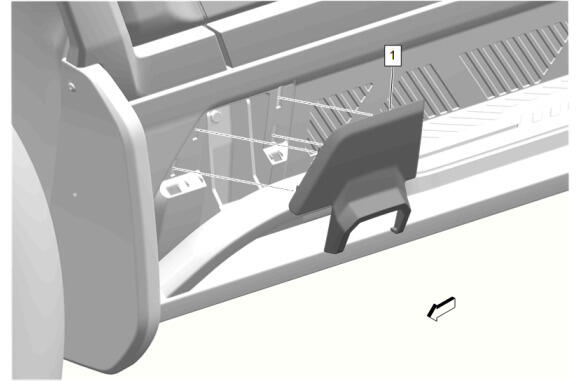

  6. GM5911742

    Assist Step Bracket Cover- Front (1) - Install

  7. Remove the support and lower the vehicle.
