Installation Procedure

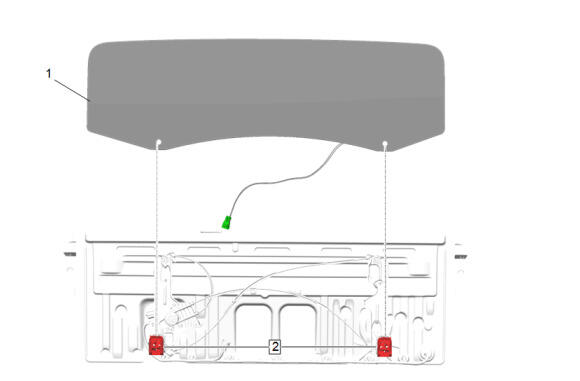

  1. GM5864544

    Install and secure the rear sliding window (1) into the rear sliding window sash (2).

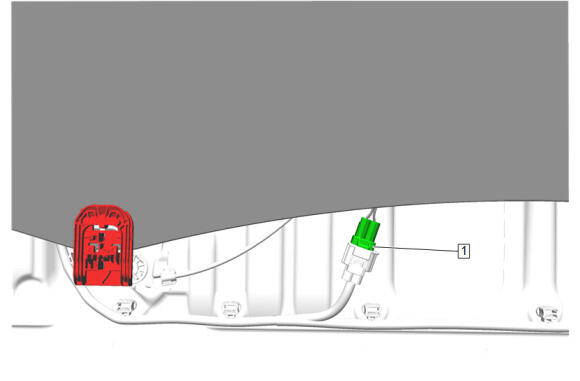

  2. GM5864541

    Install the wiring harness retainer.

  3. Connect the rear sliding window defogger electrical connector (1) to the rear sliding window wiring harness.
  4. With the aid of an assistant, install the rear end panel reinforcement into the vehicle.

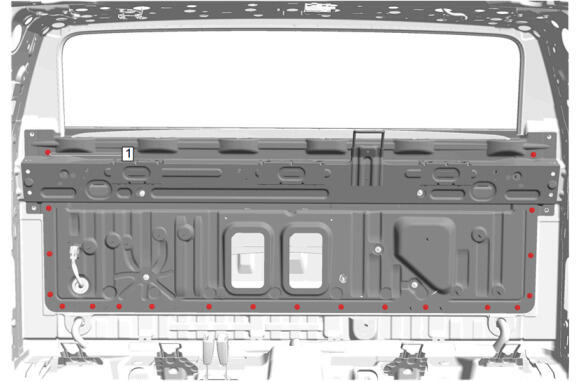

  5. GM5868100
    CAUTION:

    Refer to Fastener Caution .

    Install and tighten the 20 rear panel access bolts (1). Fastener Specifications

  6. Feed the rear seat center belt, anchor plate, and buckle through the rear seat belt guide.

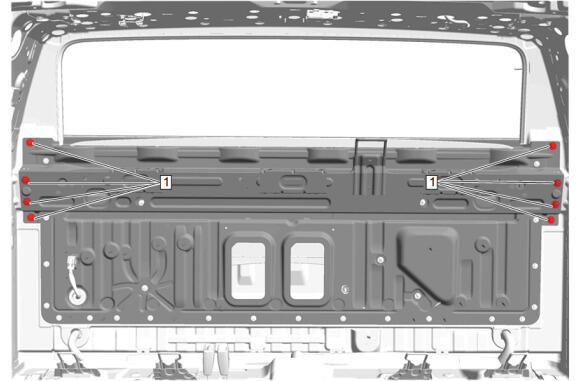

  7. GM5868097

    Install and tighten the 8 rear end panel reinforcement bolts (1). Fastener Specifications

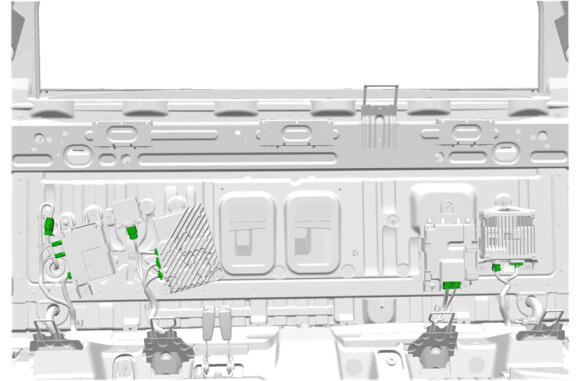

  8. GM5867166

    Connect the wiring harness retainers.

  9. Connect all electrical connectors.
  10. GM5864700

    Install the rear window weatherstrip (1).

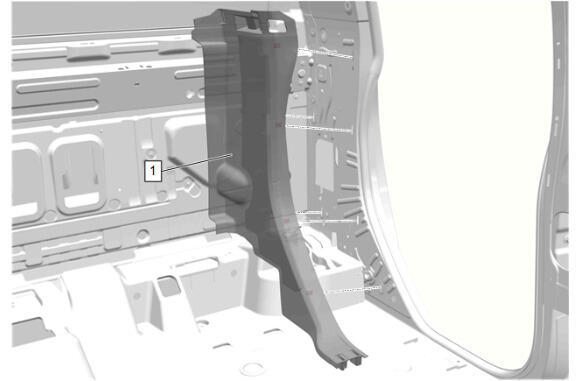

  11. GM5777897

    Ensure the seat belt webbing is not caught by panel clip tower and is in front of it.

  12. Body Lock Pillar Garnish Molding- Left Side and Right Side (1) - Install [2x]
  13. GM5777896

    Body Side Rear Window Garnish Molding- Left Side and Right Side (1) - Install [2x]

  14. GM5777894
    NOTE:

    Some components not shown for graphic clarity.

    Rear Window Lower Garnish Molding (1) - Install

  15. GM5777900

    Connect the wiring harness retainer.

  16. Headlining Rear Trim Panel (1) - Install
  17. GM5816533

    Connect the electrical connector.

  18. Rear Seat Position Center Reading and Courtesy Lamp (1) - Install
  19. Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.

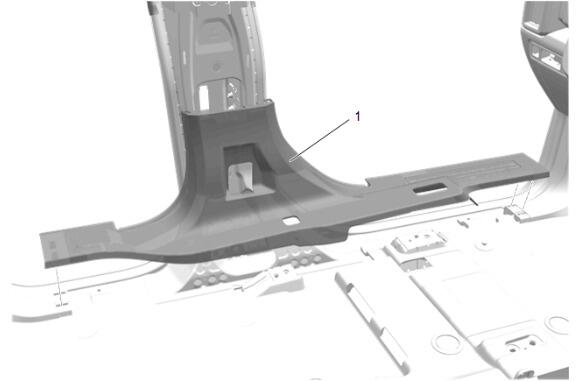

  20. GM5777893

    Feed the seat belt tensioner through the panel.

  21. Engage the retaining clips at the front and rear of the side door sill garnish molding (1).
  22. Side Door Sill Garnish Molding- Left Side and Right Side (1) - Install [2x]
  23. Install the front and rear side door weatherstrips as necessary.
  24. GM5758500

    Align the bottom of the center pillar lower trim panel with the side door sill garnish molding.

  25. Center Pillar Lower Trim Panel- Left Side and Right Side (1) - Install [2x]

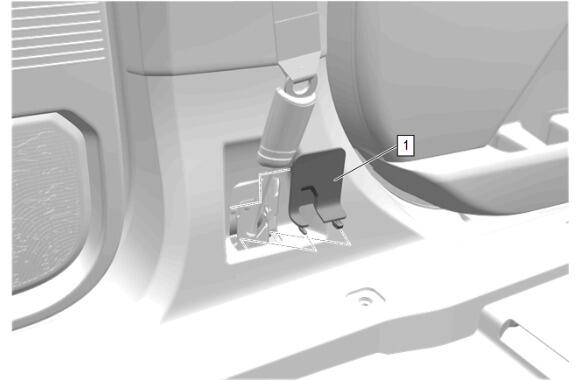

  26. GM5778423

    Center Pillar Lower Garnish Molding Lower Hole Cover- Left Side and Right Side (1) - Install [2x]

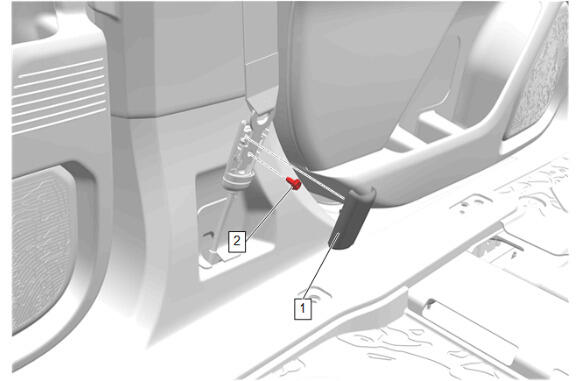

  27. GM5810582

    Front Seat Belt Anchor Plate Tensioner Bolt- Upper- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications

  28. Front Seat Belt Anchor Plate Tensioner Cover- Left Side and Right Side (1) - Install [2x]

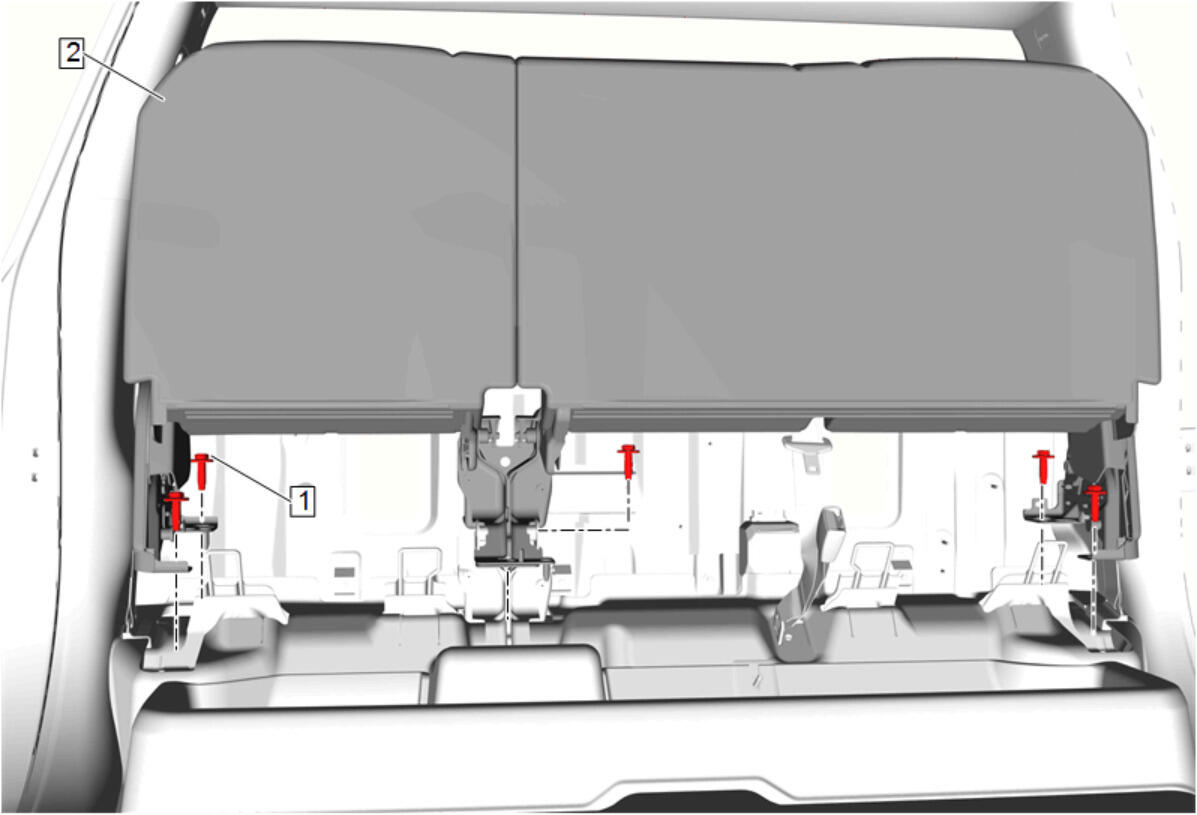

  29. GM5034919

    Rear Seat Cushion (2) - Install - Rear Seat Cushion Removal and Installation

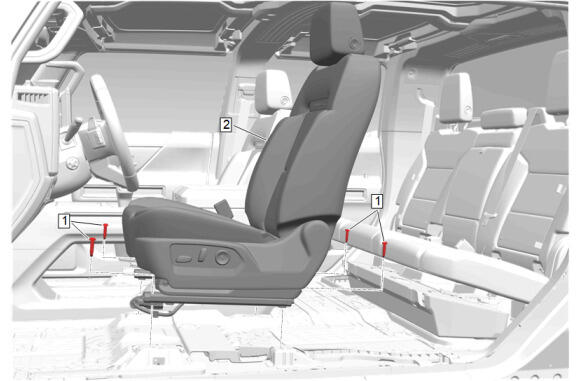

  30. GM5784710

    Front Seat- Left Side and Right Side (2) - Install [2x] - Front Seat Removal and Installation

  31. Enable the SIR System. SIR Disabling and Enabling
  32. Place the rear sliding window in the original position.
