Home >> GMC >> 2022 >> Hummer EV >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive, and Keyless Start

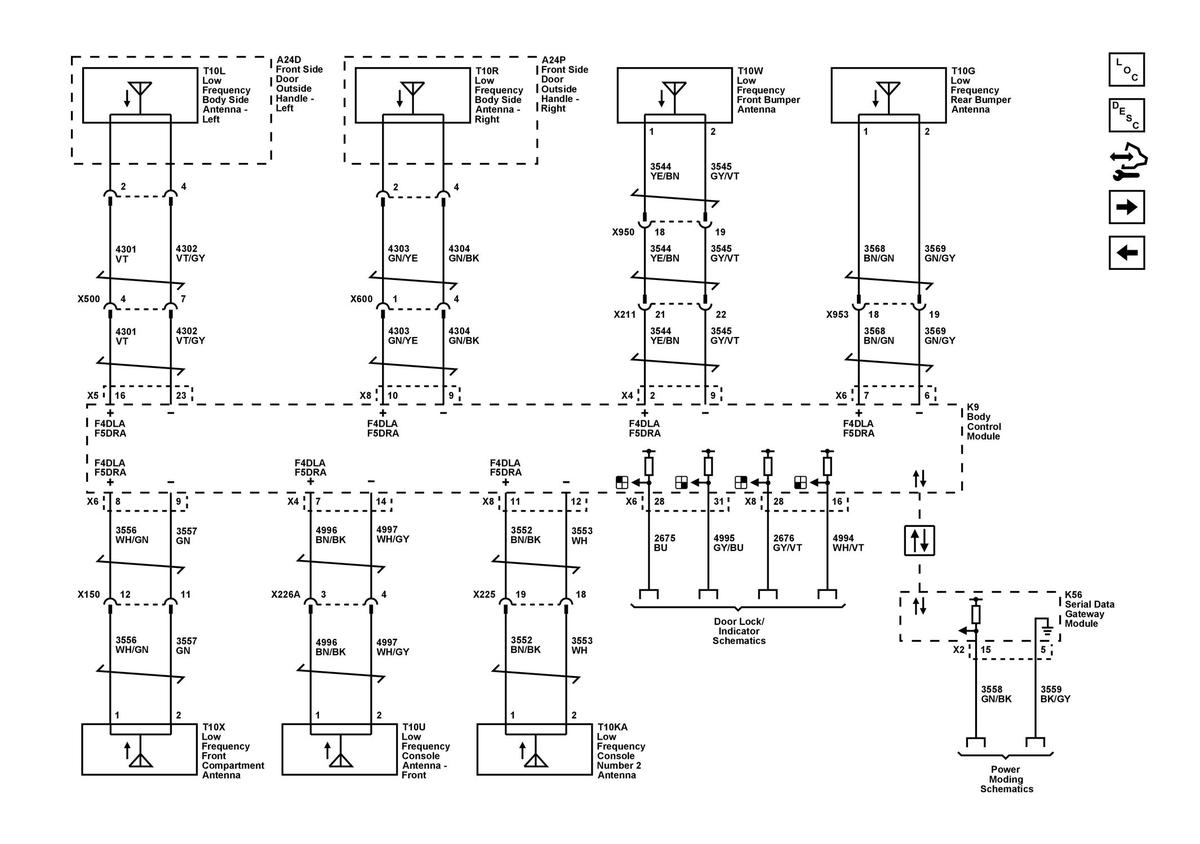

Keyless Entry - Passive, and Keyless Start

GM5866219
