Installation Procedure

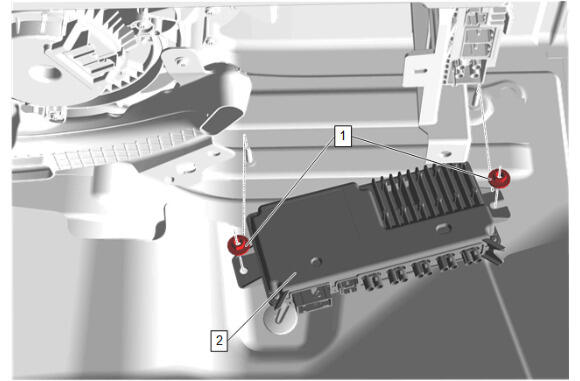

  1. GM5787191

    Video Processing Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Video Processing Module Nut (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connectors.

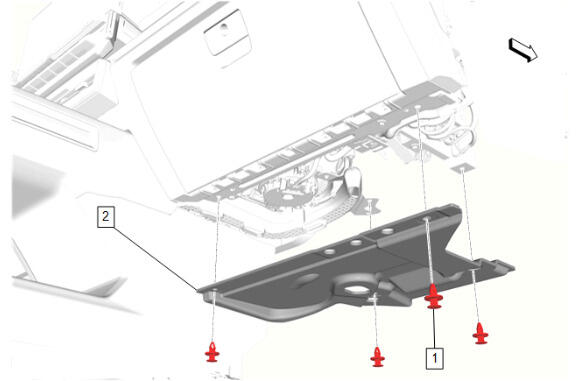

  4. GM5775694

    Instrument Panel Lower Trim Panel Insulator (2) - Install

  5. Instrument Panel Lower Insulator Retainer (1) - Install [4x]
