Home >> GMC >> 2022 >> Hummer EV >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Collision/Avoidance >> Driver Monitoring System >> Repair Instructions >> Driver Monitoring System Module Replacement >> Removal Procedure

Removal Procedure

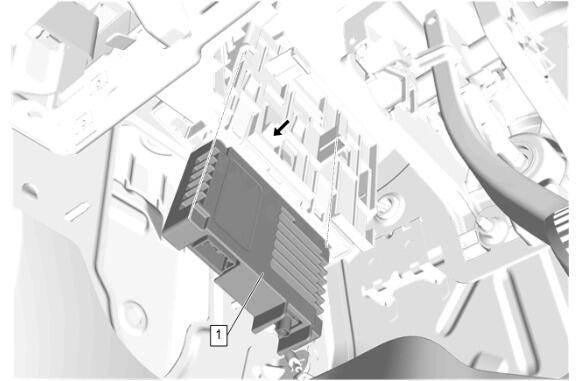

  1. GM5778394

    Disconnect the electrical connectors.

  2. Release the retaining tab.
  3. Driver Monitoring System Module (1) - Remove
