Removal Procedure

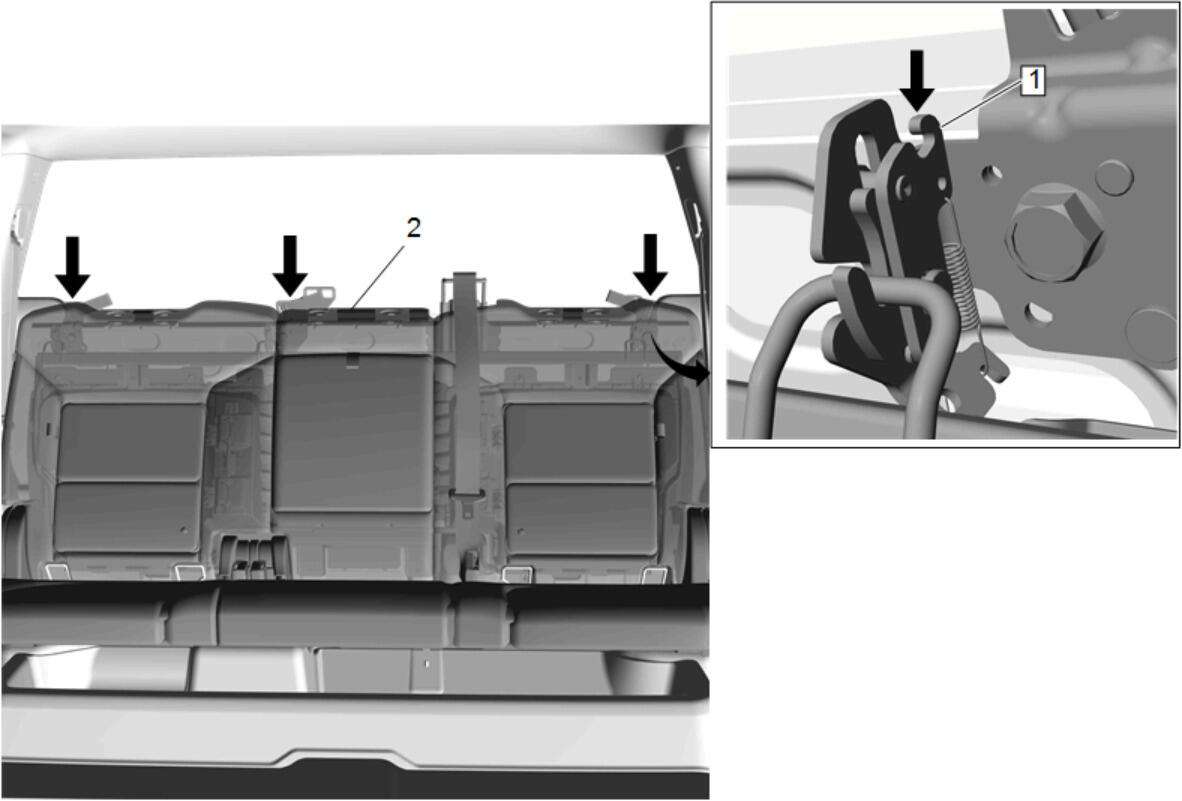

  1. GM5034921

    Rear Seat Back Cushion (2) - Remove - Rear Seat Back Cushion Removal and Installation

  2. GM5791758

    Disconnect the electrical connectors.

  3. Remove the upper active safety control module bracket nut (1).
  4. Active Safety Control Module Bracket (2) - Reposition
  5. GM5791767

    Release the retaining tabs.

  6. Image Processing Module (1) - Remove
