Installation Procedure

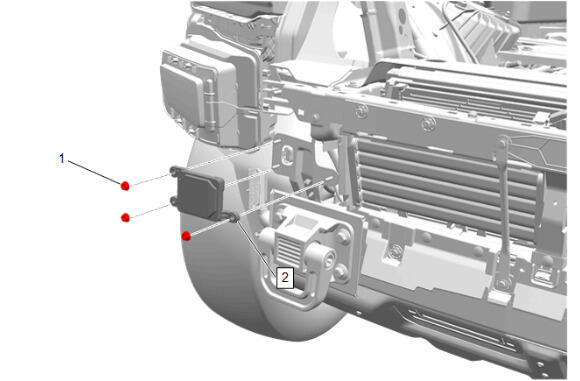

  1. GM5832377

    Forward Range Radar Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Forward Range Radar Module Nut (1) - Install and tighten [3x] - Fastener Specifications
  3. Connect the electrical connector.
  4. GM5788843

    With the aid of an assistant, install the fascia. (1) Front Bumper Fascia Removal and Installation

  5. Perform the necessary programming and setup procedure: Control Module References
