Removal Procedure

  1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

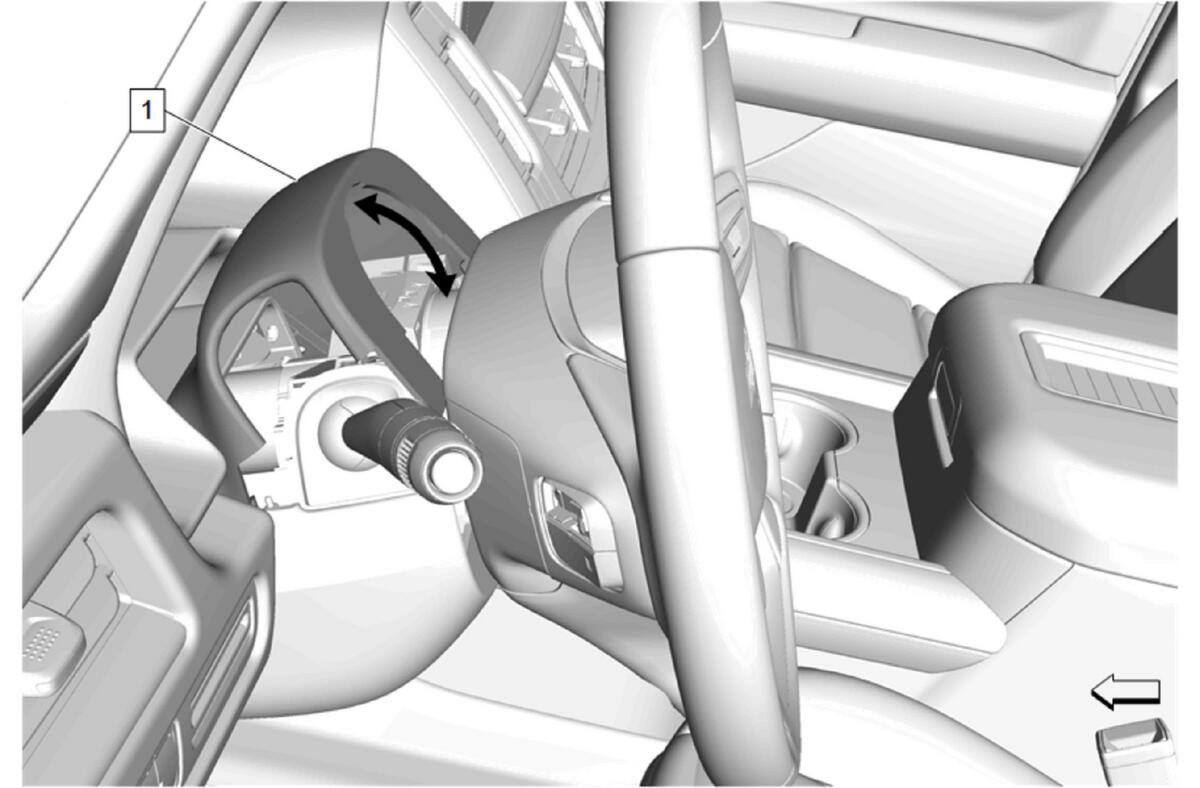

  2. GM5527241Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

  3. GM5527242Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column opening closeout (2).

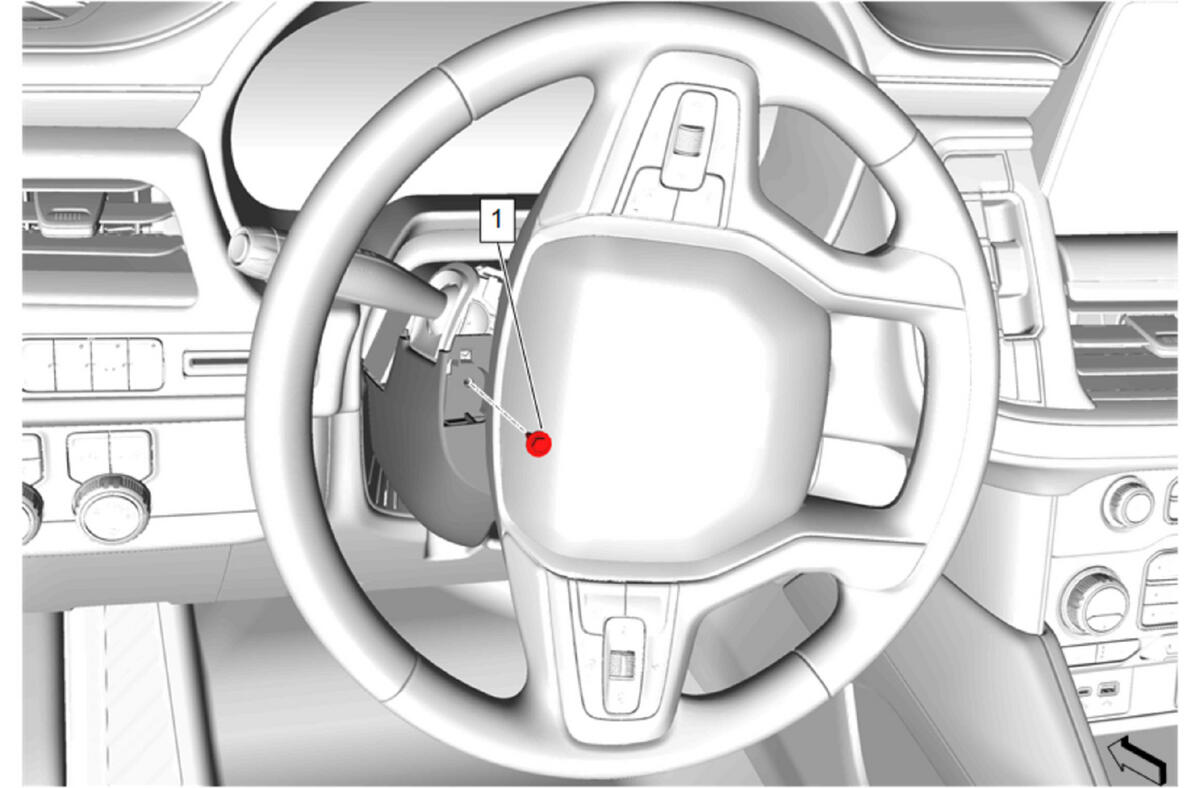

  4. GM5528080Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  5. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove

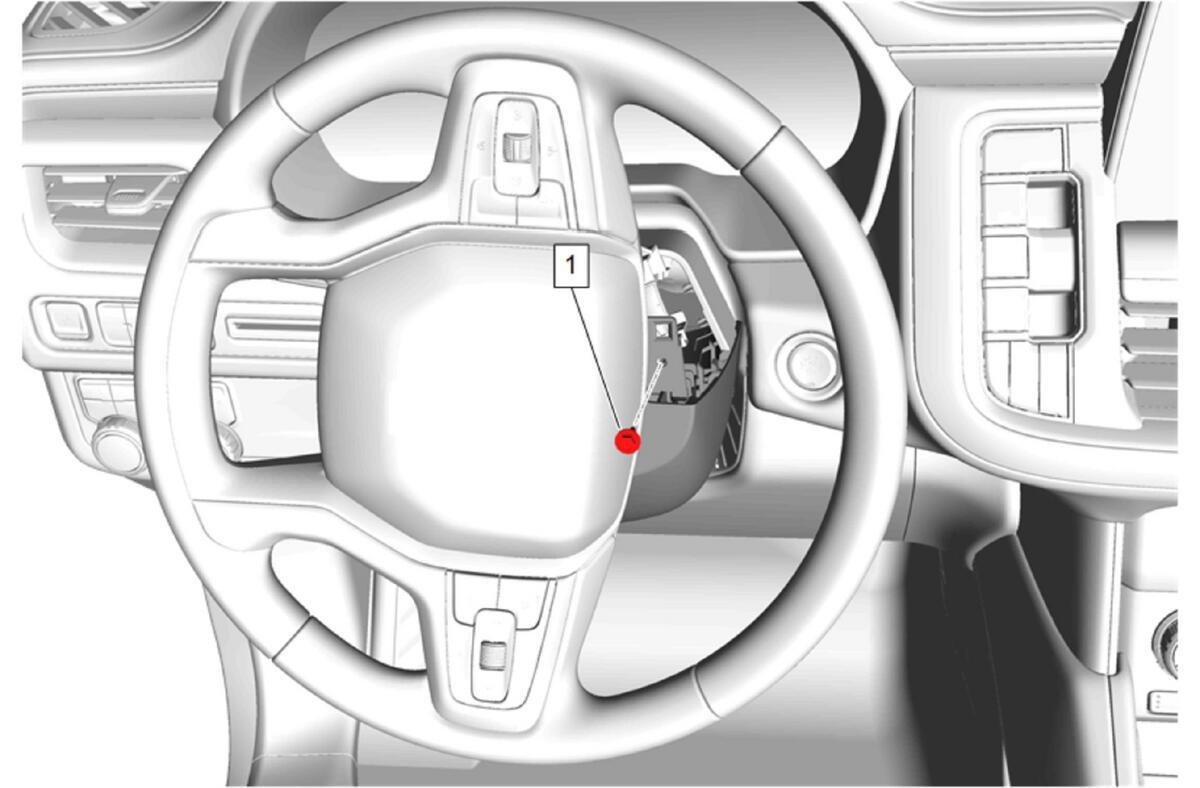

  6. GM5528081Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  7. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
  8. Turn the steering wheel to the centered position.

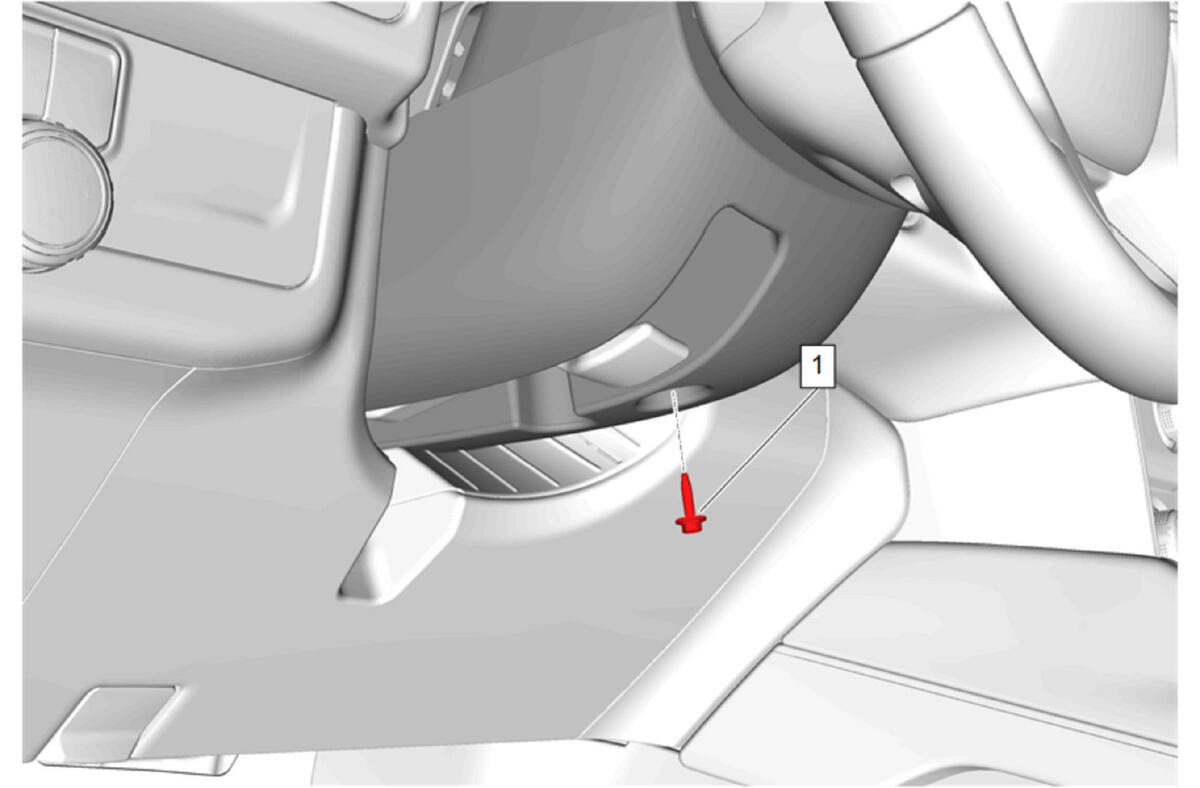

  9. GM5528082Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove

  10. {If equipped} Electrical Connector - Disconnect

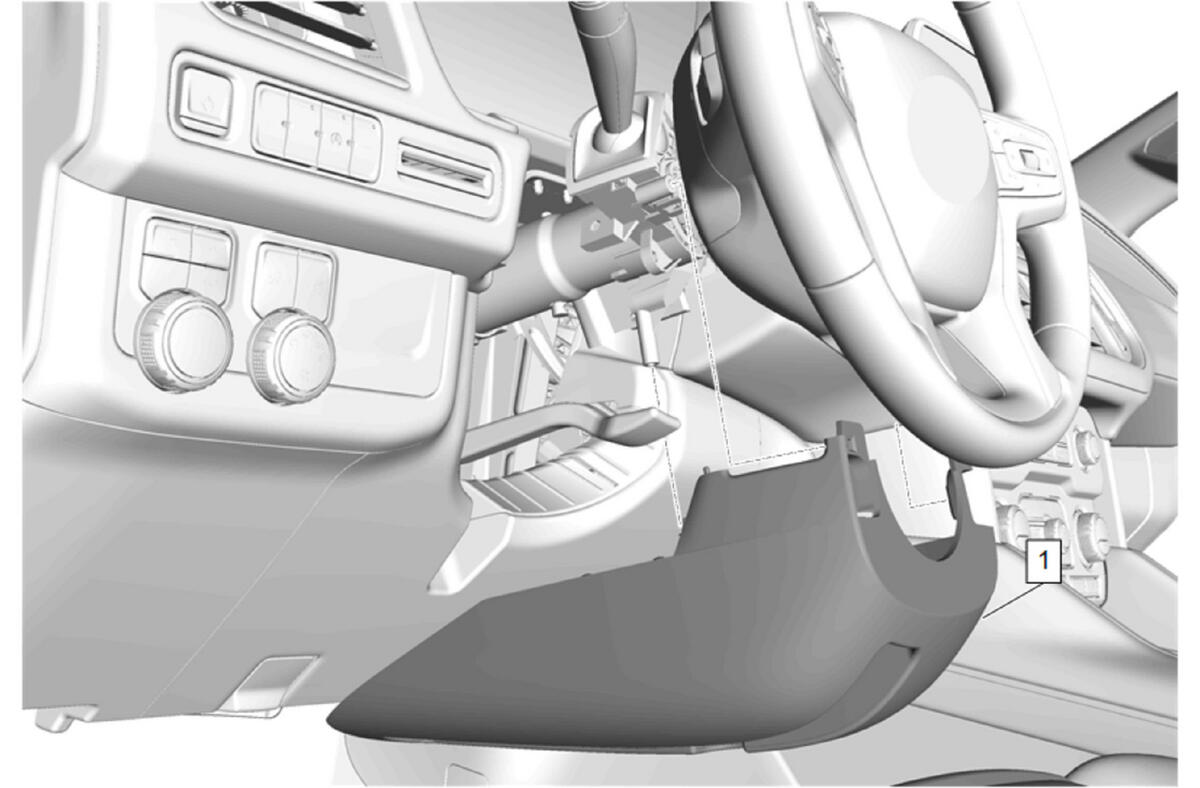

  11. GM5528368Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (1) - Remove

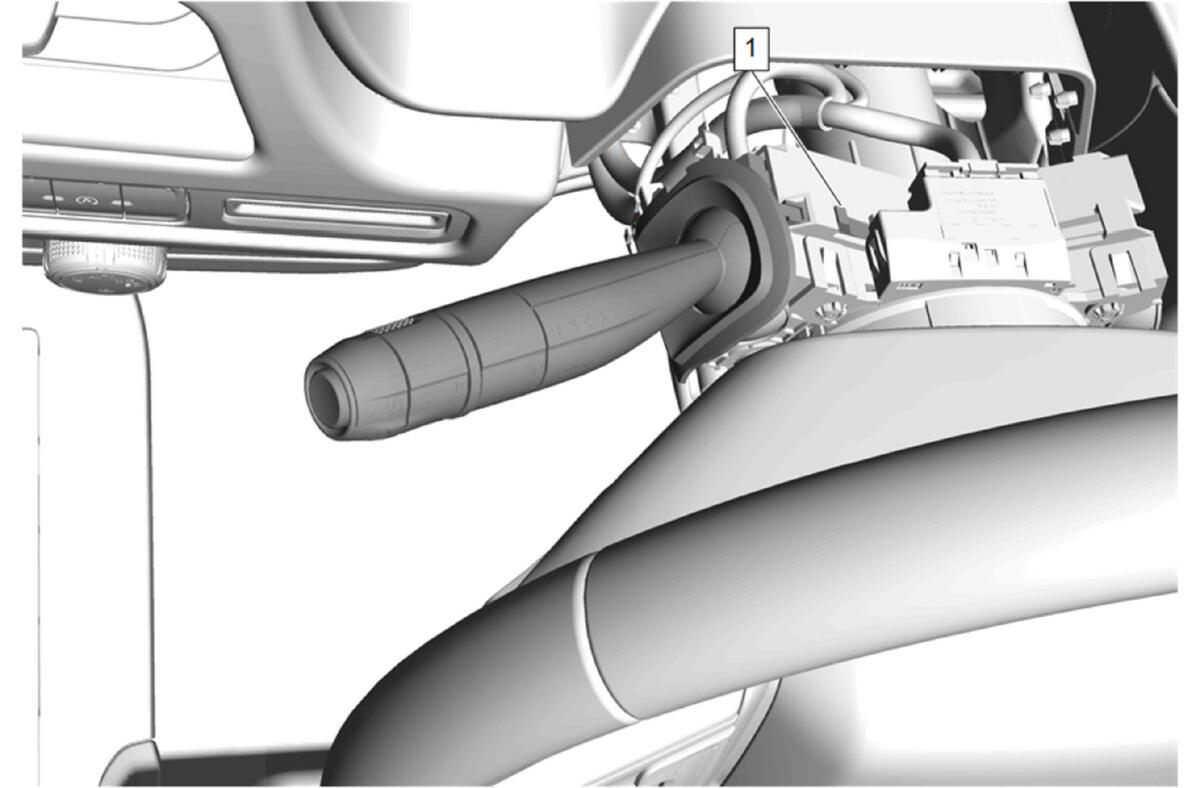

  12. GM5536445Courtesy of GENERAL MOTORS COMPANY

    Disengage the turn signal switch upper retaining tab (1).

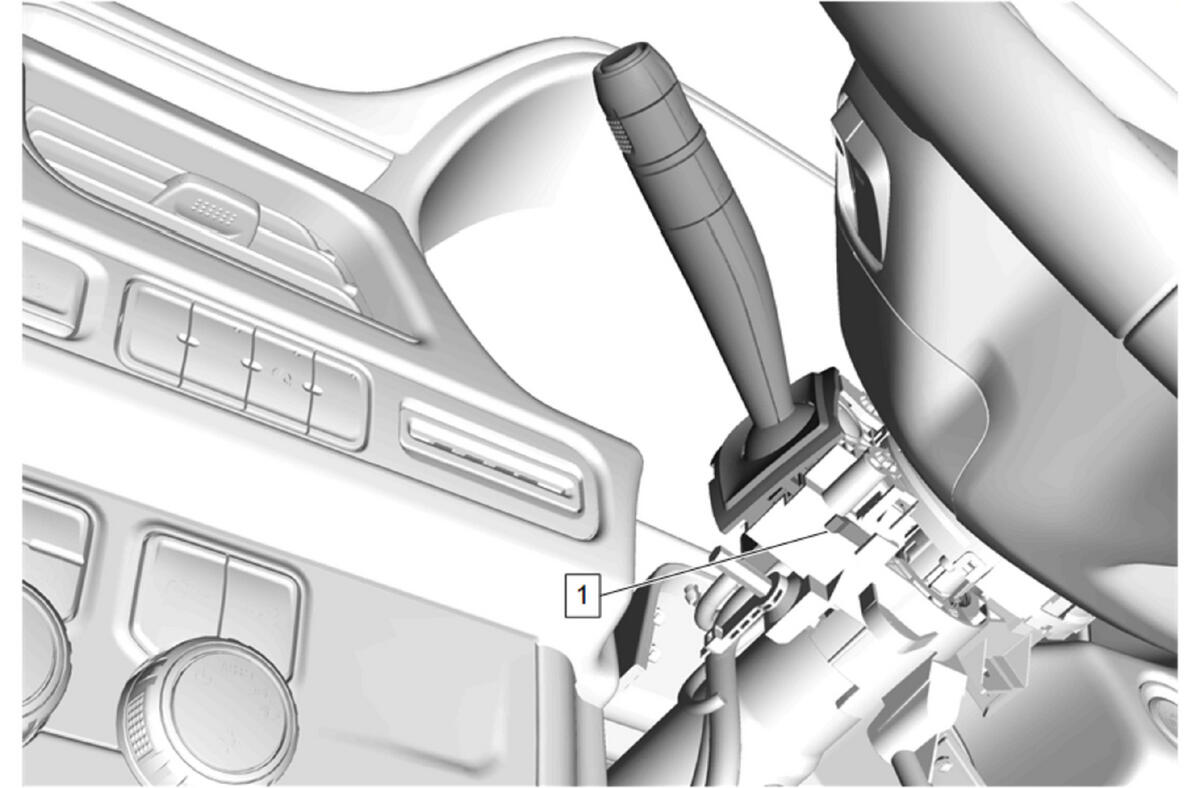

  13. GM5536451Courtesy of GENERAL MOTORS COMPANY

    Disengage the turn signal switch lower retaining tab (1).

  14. Disconnect the electrical connector.

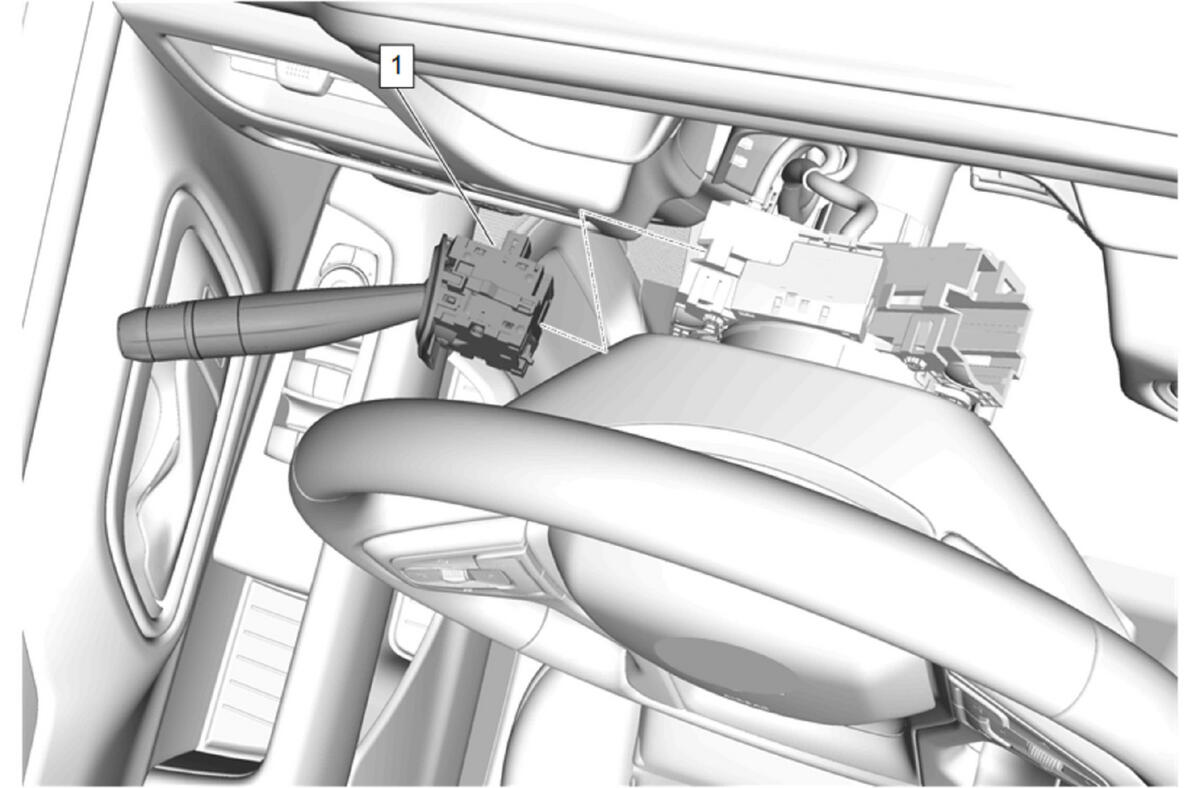

  15. GM5536459Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Remove
