Fastener Specifications

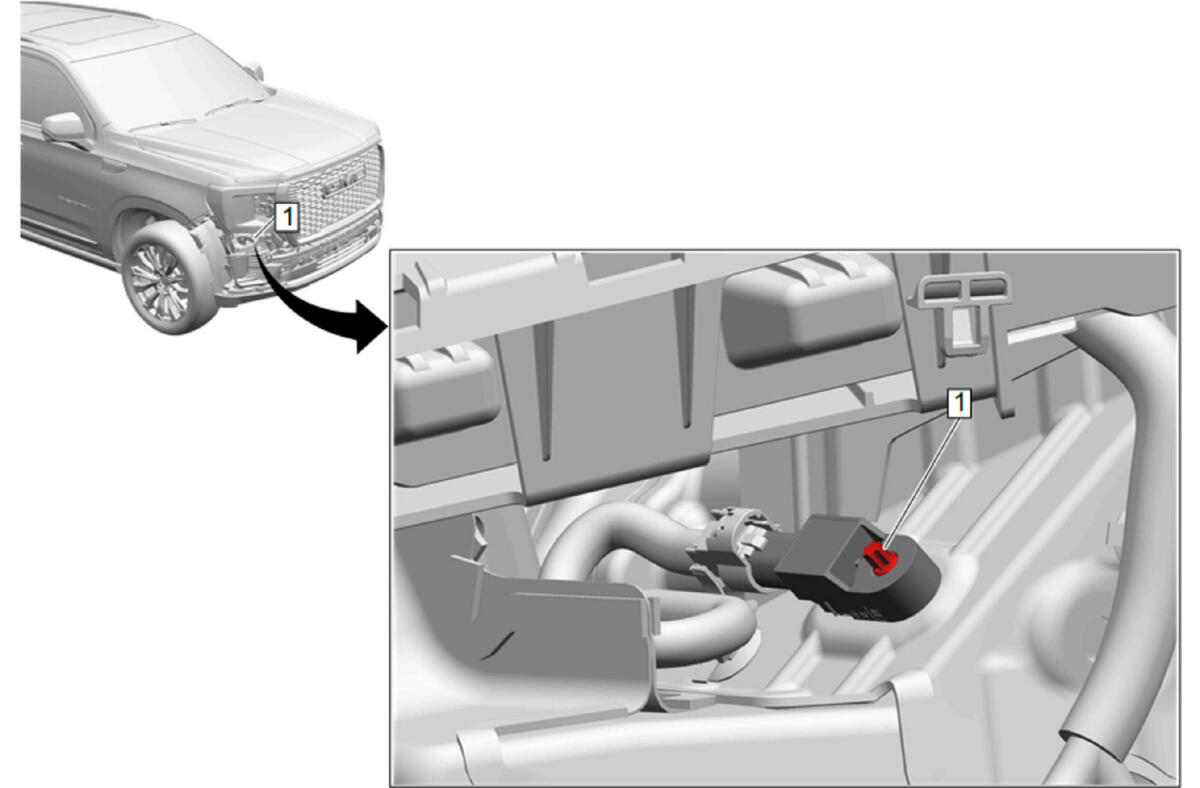

Airbag Front End Discriminating Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Front End Discriminating Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Front End Discriminating Sensor Replacement |

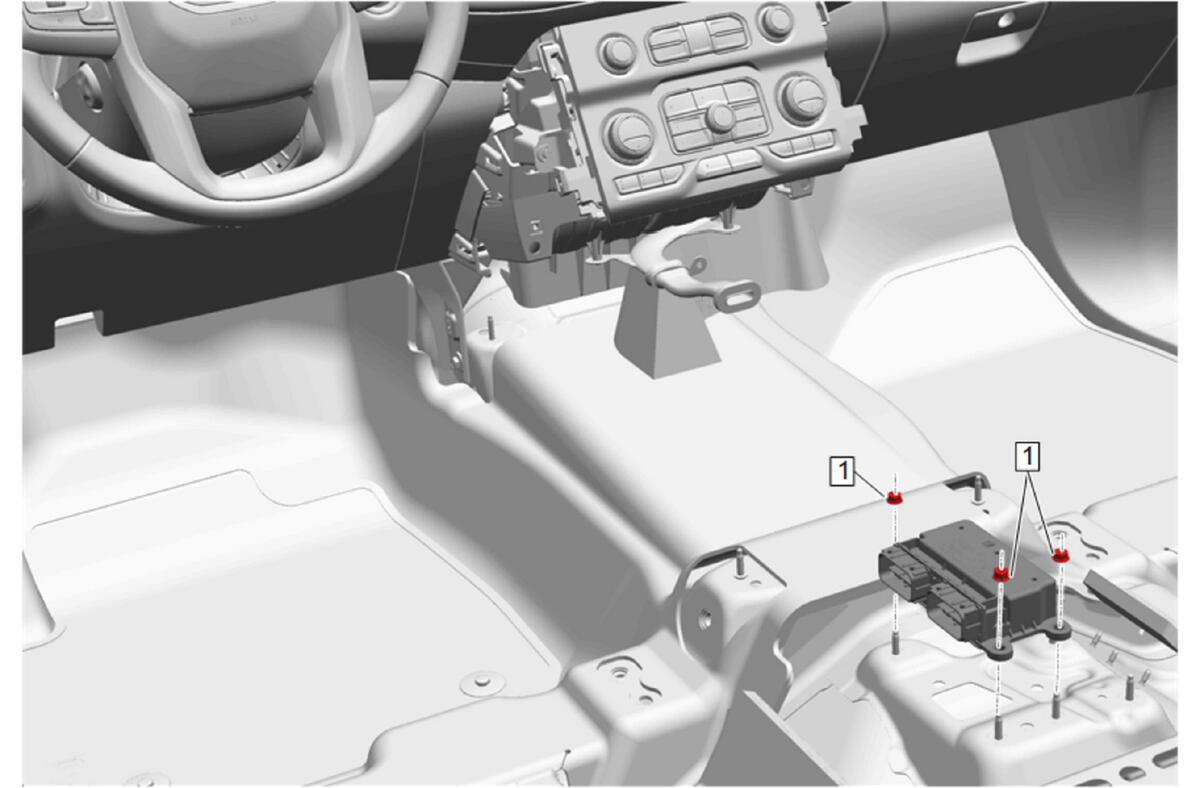

Airbag Sensing and Diagnostic Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Sensing and Diagnostic Module Nut [ 3x ] | - | - | 9 N.m (80 lb in) | Restraints Control Module Replacement (without Denali) , or Restraints Control Module Replacement (with Denali) |

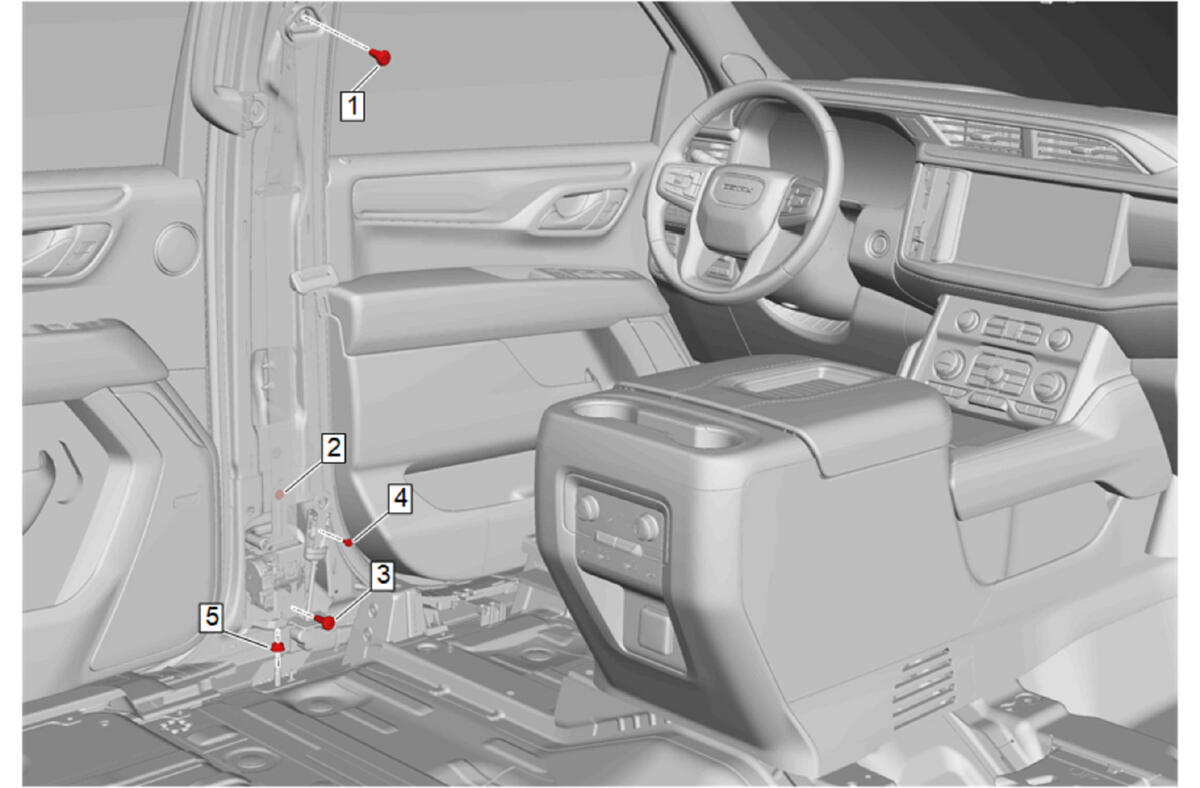

Front Seat Belt Retractor and Tensioner
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Retractor D Ring Bolt | - | Yes | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement |
| 2 | Front Seat Belt Retractor Bolt -Upper | - | - | 9 N.m (80 lb in) | Front Seat Belt Retractor Replacement |
| 3 | Front Seat Belt Retractor Bolt -Lower | - | - | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement |
| 4 | Front Seat Belt Anchor Plate Tensioner Bolt | - | Yes | 9 N.m (80 lb in) | Front Seat Belt Anchor Plate Tensioner Replacement |
| 5 | Front Seat Belt Nut | - | - | 45 N.m (33 lb ft) | Front Seat Belt Anchor Plate Tensioner Replacement |
Front Seat Outboard and Inboard Seat Back Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Outboard Seat Back Airbag Nut | - | - | 7 N.m (62 lb in) | Front Seat Back Cover and Pad Removal and Installation |
| 2 | Front Seat Inboard Seat Back Airbag Nut | - | - | 7 N.m (62 lb in) | Front Seat Back Cover and Pad Removal and Installation |
Roof Rail Airbag and Side Impact Sensors
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rail Airbag Bolt -Left Side [ 17x ] | - | - | 9 N.m (80 lb in) | Front and Rear and 3rd Row Roof Rail Airbag Replacement - Left Side (without Denali) , or Front and Rear and 3rd Row Roof Rail Airbag Replacement - Left Side (with Denali) |
| 2 | Roof Rail Airbag Bolt -Right Side [ 15x ] | - | - | 9 N.m (80 lb in) | Front and Rear and 3rd Row Roof Rail Airbag Replacement - Right Side (with Denali) , or Front and Rear and 3rd Row Roof Rail Airbag Replacement - Right Side (without Denali) |
| 3 | Airbag Side Impact Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Sensor Replacement |
| 4 | Airbag Side Impact Rear Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Rear Sensor Replacement |
Steering Wheel Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Airbag Bolt [ 2x ] | - | - | 9 N.m (80 lb in) | Steering Wheel Airbag Replacement |
