Installation Procedure

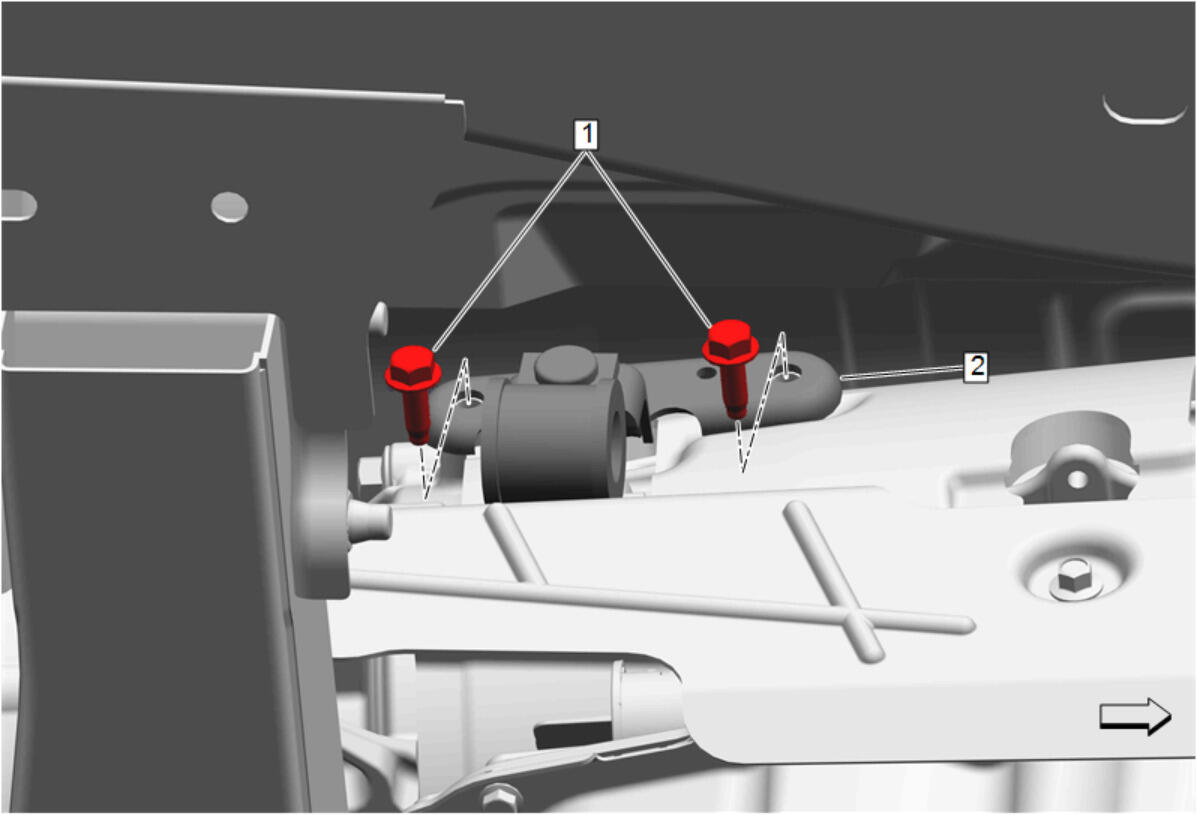

  1. GM5185017Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Catalytic Converter Brace Bracket Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

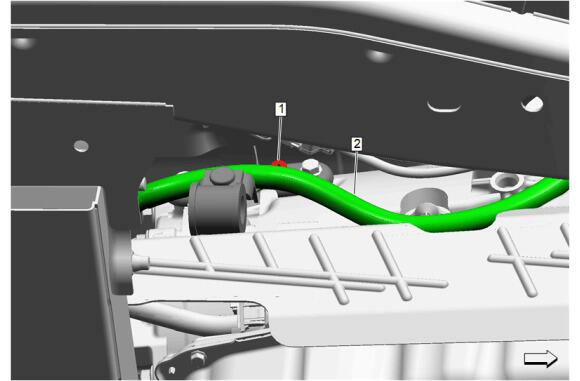

  3. GM5607934Courtesy of GENERAL MOTORS COMPANY

    Position the wiring harness (2) in place and install the wring harness retainer (1) to the exhaust front bracket.

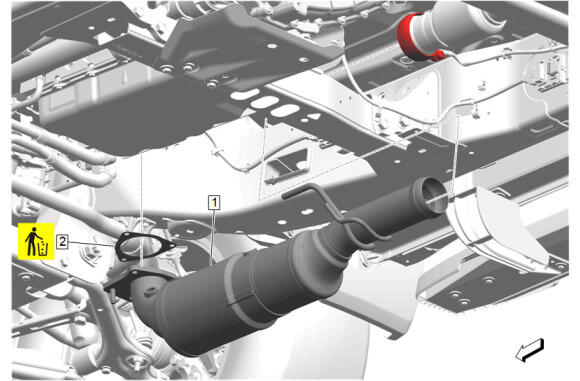

  4. GM5184846Courtesy of GENERAL MOTORS COMPANY

    Exhaust System Front Gasket (2) - Install NEW

  5. Nitrogen Oxides Catalytic Converter (1) - Install

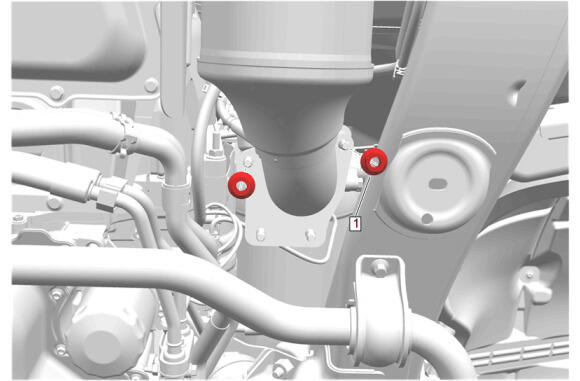

  6. GM5341378Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe Nut (1) - Install and tighten [ 2x ] - Fastener Specifications

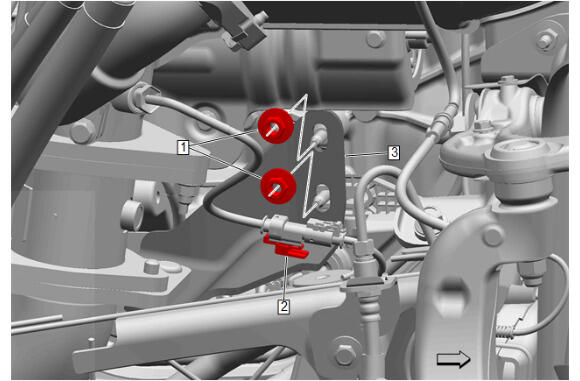

  7. GM5634664Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bracket (3) - Install

  8. Wiring Harness Retainer (2) @ Catalytic Converter Brace Bracket (3) - Install
  9. Catalytic Converter Brace Bracket Nut (1) - Install and tighten [ 2x ] - Fastener Specifications

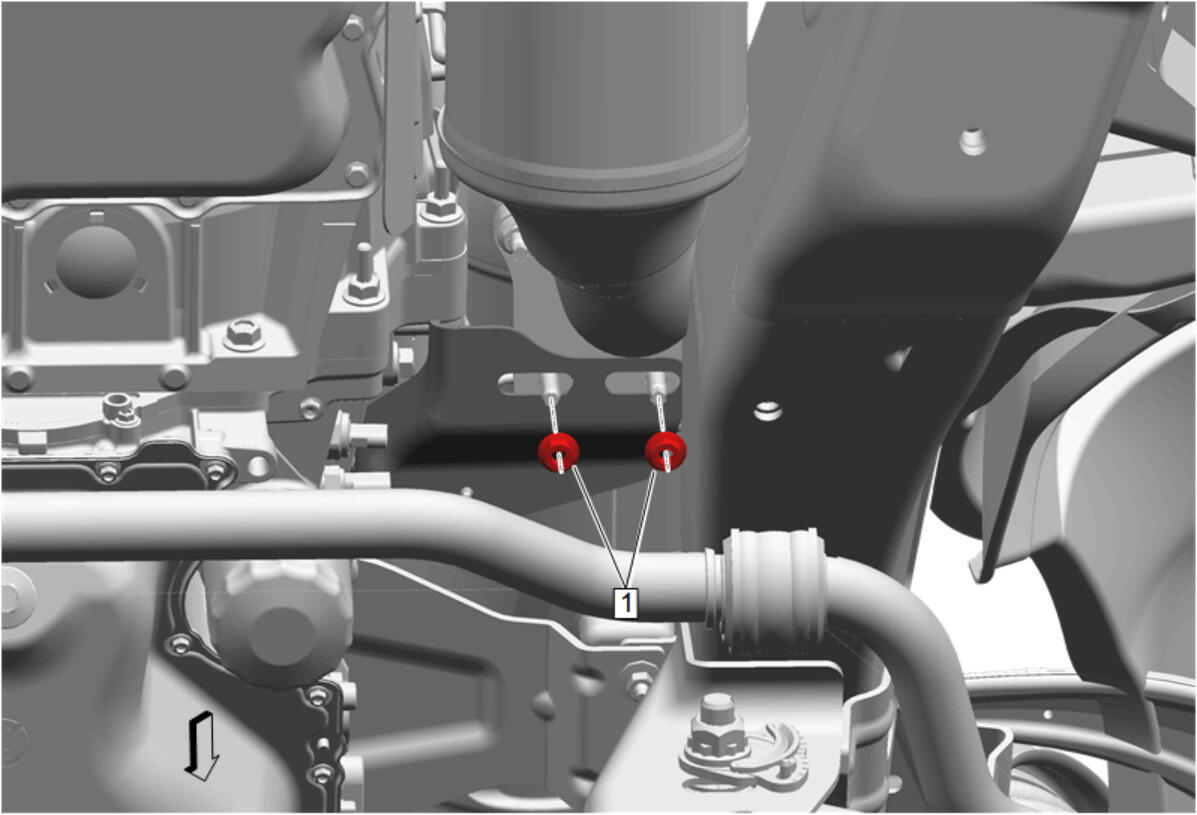

  10. GM5340362Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe Nut (1) - Install and tighten [ 2x ] - Fastener Specifications

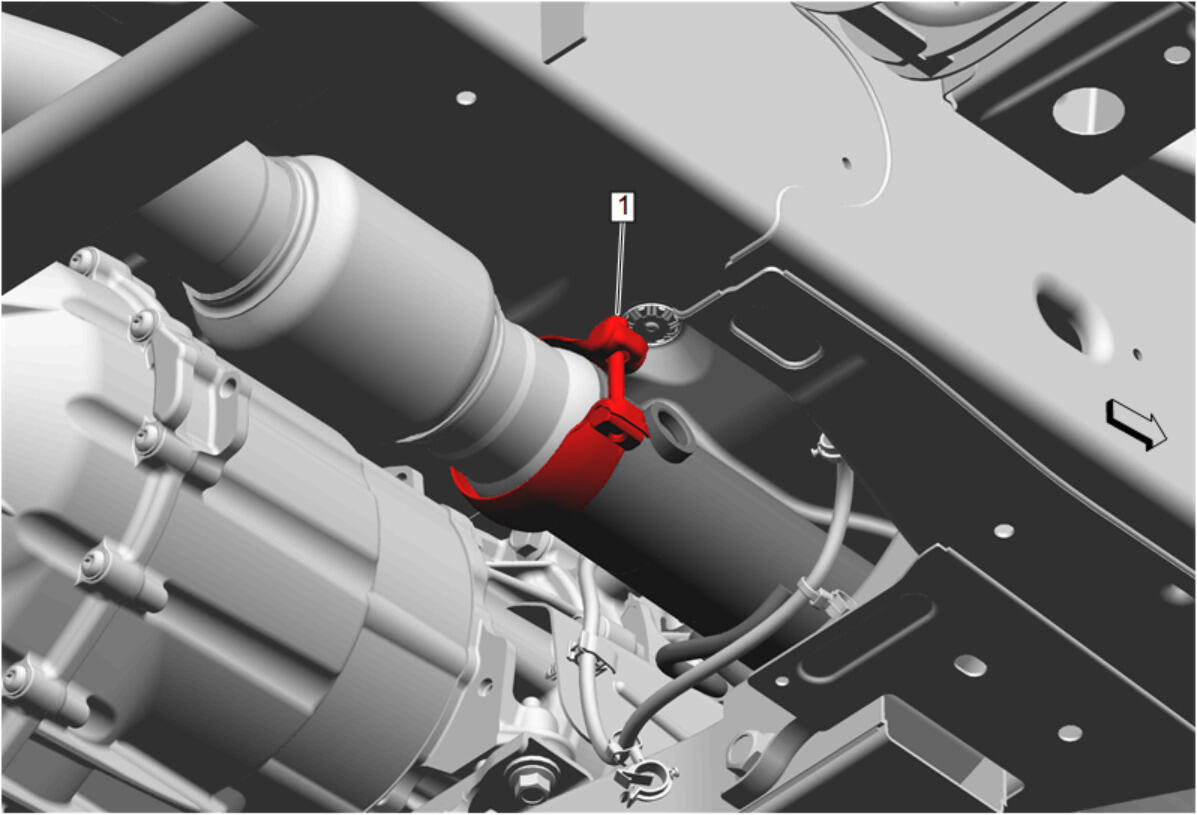

  11. GM5341429Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten - Fastener Specifications

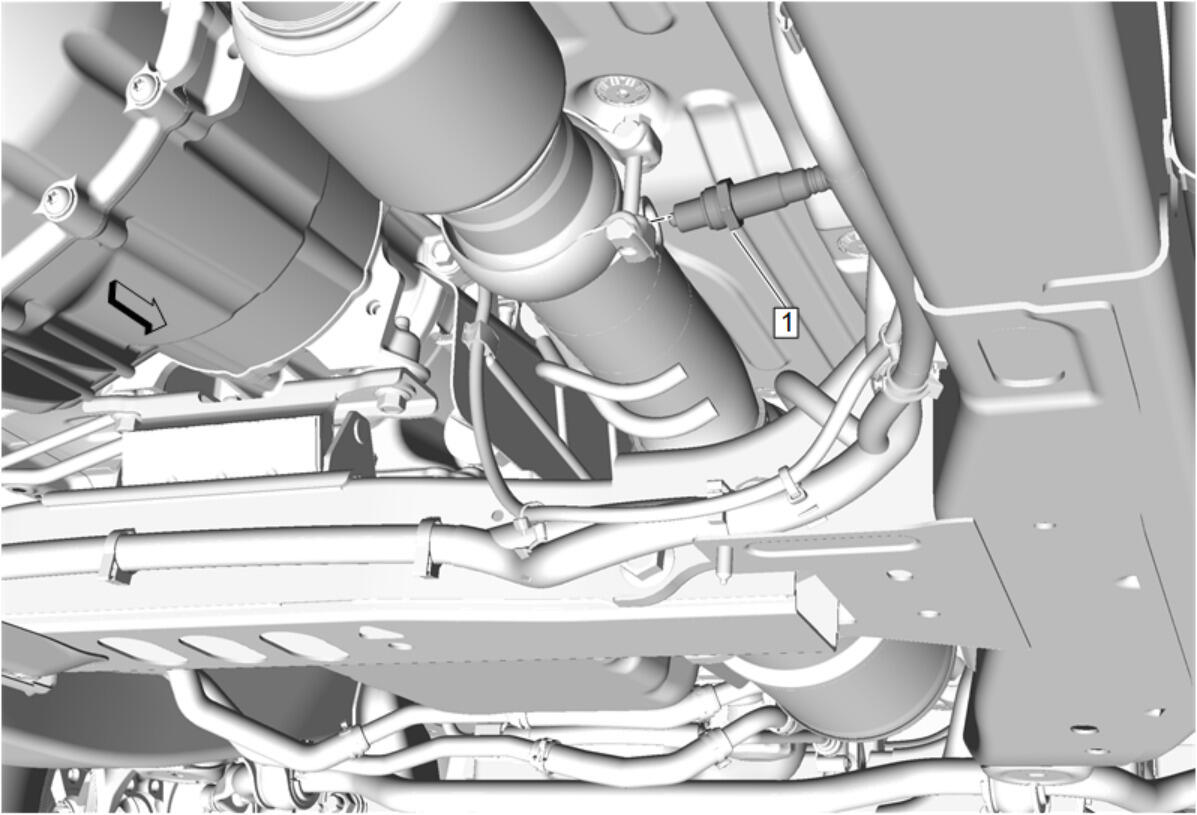

  12. GM5151789Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    NOTE:

    Coat the threads with anti-seize compound. Adhesives, Fluids, Lubricants, and Sealers

    Exhaust Particulate Sensor (1) - Install and tighten - Fastener Specifications

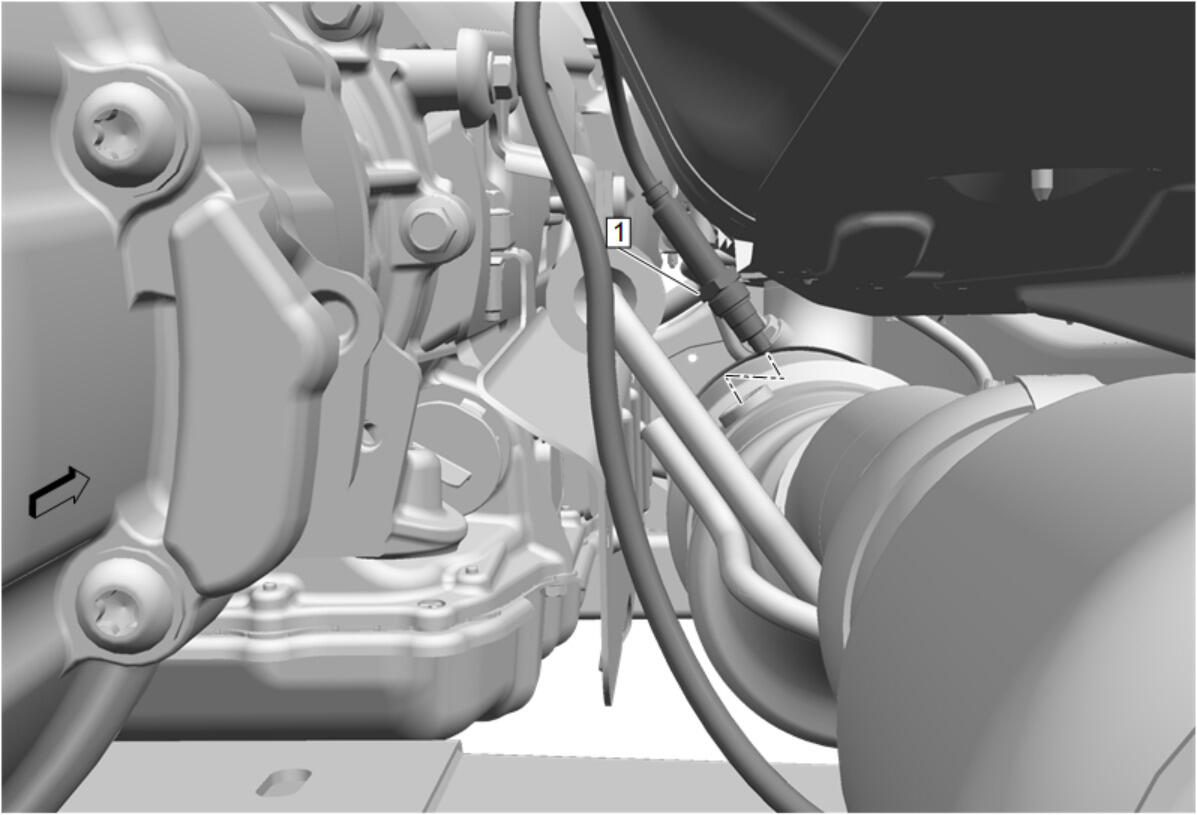

  13. GM5150652Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Coat the threads with anti-seize compound. Adhesives, Fluids, Lubricants, and Sealers

    Nitrogen Oxides Sensor- Position 3 (1) - Install and tighten - Fastener Specifications

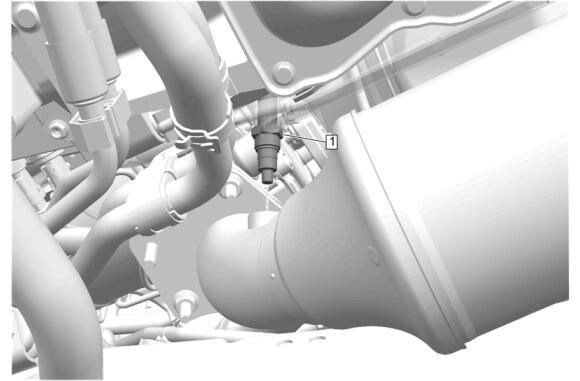

  14. GM5149436Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Coat the threads with anti-seize compound. Adhesives, Fluids, Lubricants, and Sealers

    Nitrogen Oxides Sensor-Position 2 (1) - Install and tighten - Fastener Specifications

  15. Front Wheelhouse Liner-Right Side - Install - Front Wheelhouse Liner Replacement
  16. Inspect the exhaust system for leaks.
  17. Perform the catalyst reset procedure. Catalyst Reset
  18. Perform the nitrogen oxides catalyst reductant loading reset procedure. Nitrogen Oxides Catalytic Converter Reductant Loading Reset
  19. Perform the nitrogen oxides catalytic converter reset procedure. Nitrogen Oxides Catalytic Converter Reset
