Fastener Specifications

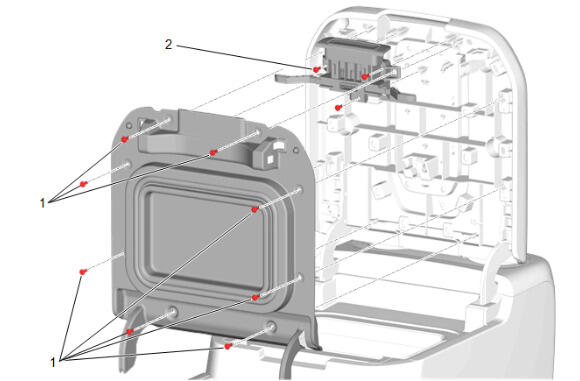

GM5687494Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Armrest Latch with DCK

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Bolt [ 8x ] - - 1 N.m (9 lb in) Front Floor Console Armrest Latch Replacement (DCH) , or Front Floor Console Armrest Latch Replacement (D07) , or Front Floor Console Armrest Latch Replacement (DCK)
2 Front Floor Console Armrest Bolt [ 3x ] - - 1 N.m (9 lb in) Front Floor Console Armrest Latch Replacement (DCH) , or Front Floor Console Armrest Latch Replacement (D07) , or Front Floor Console Armrest Latch Replacement (DCK)

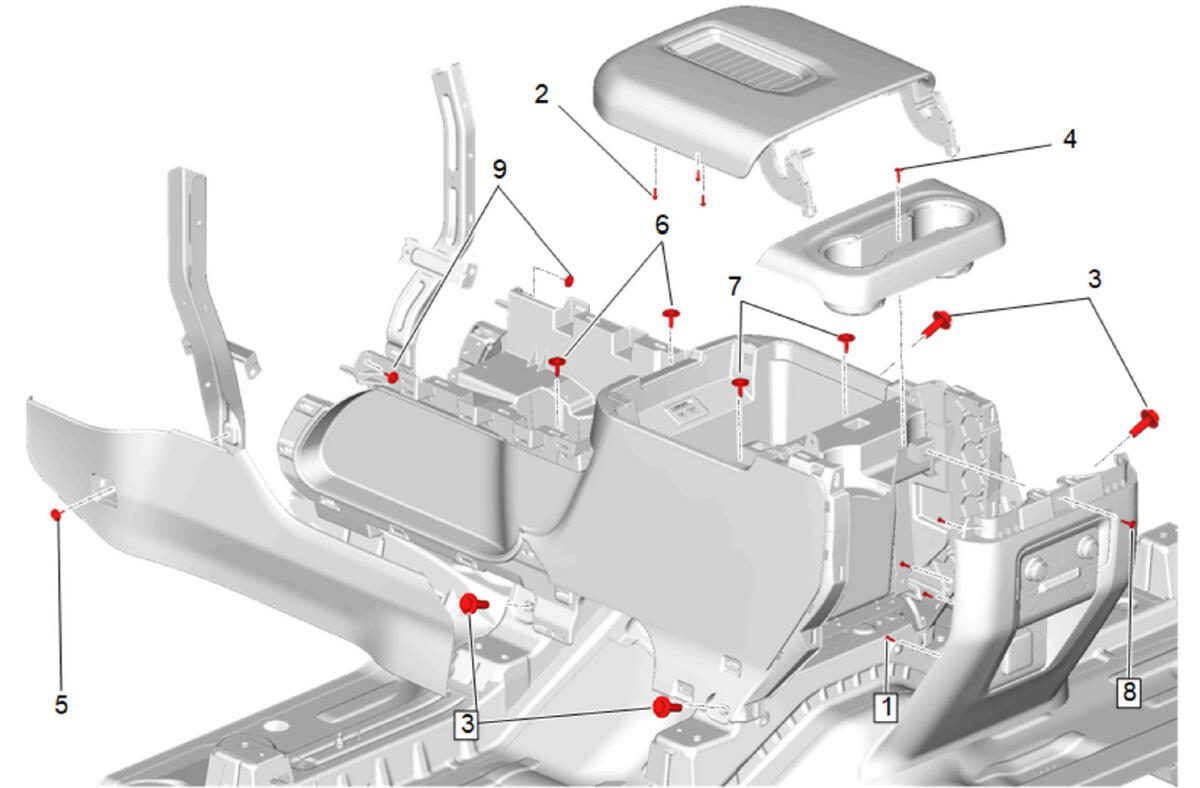

GM5549646Courtesy of GENERAL MOTORS COMPANY
Front Floor Console with D07

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Compartment Bolt [ 4x ] - - 0.8 N.m (7 lb in) Front Floor Rear Console Trim Plate Replacement (D07) , or Front Floor Rear Console Trim Plate Replacement (DCH)
2 Front Floor Console Armrest Bolt [ 3x ] - - 2.1 N.m (19 lb in) Front Floor Console Armrest Latch Replacement (DCH) , or Front Floor Console Armrest Latch Replacement (D07) , or Front Floor Console Armrest Latch Replacement (DCK)
3 Front Floor Console Bolt [ 4x ] - - 45 N.m (33 lb ft) Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
4 Front Floor Console Cup Holder Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Cup Holder Replacement
Front Floor Console Compartment Cooler Replacement
5 Front Floor Console Extension Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement - Left Side (without Denali) , or Front Floor Console Extension Panel Replacement - Left Side (with Denali)
6 Front Floor Console Intermediate Bracket Bolt [ 2x ] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
7 Front Floor Console Rear Bracket Bolt [ 2x ] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
8 Front Floor Console Rear Cover Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement (DCH) , or Front Floor Console Rear Trim Panel Replacement (DCK, D07)
Front Floor Console Compartment Cooler Replacement
9 Front Floor Console Retainer Bolt [ 2x ] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)

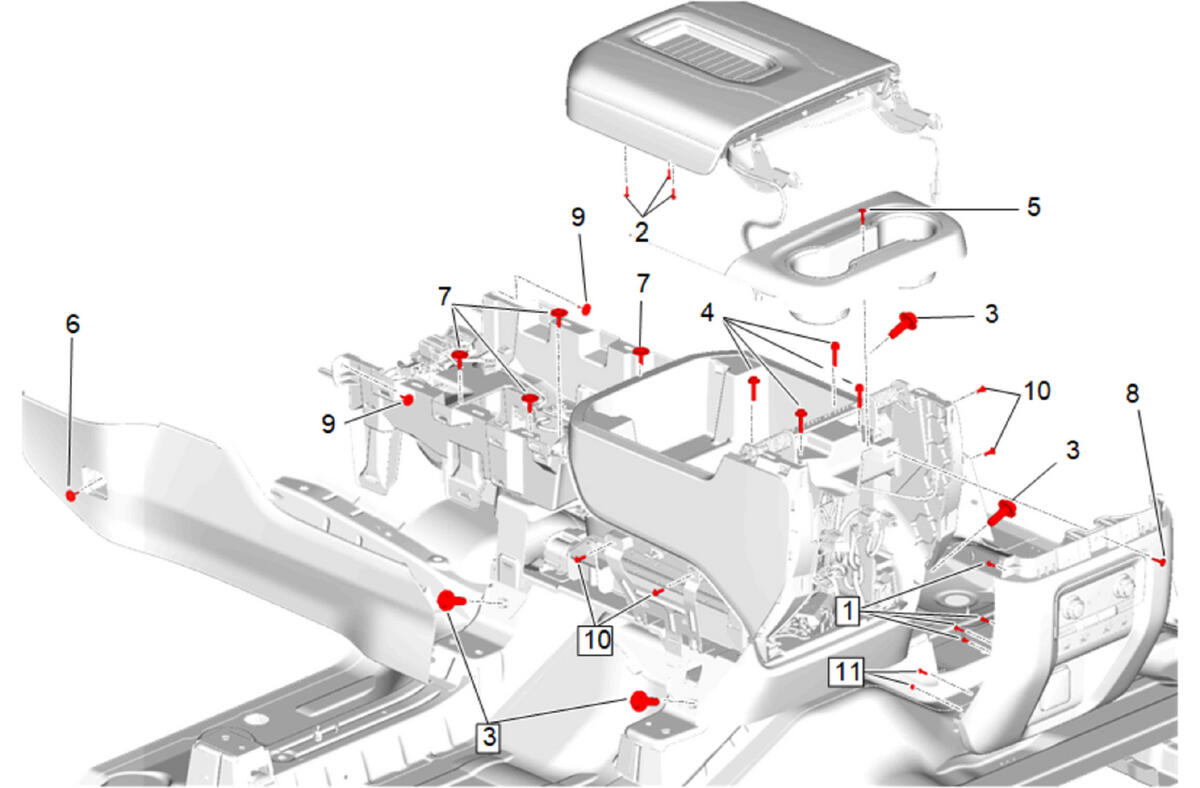

GM5569493Courtesy of GENERAL MOTORS COMPANY
Front Floor Console with DCH

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Compartment Bolt [ 4x ] - - 0.8 N.m (7 lb in) Front Floor Rear Console Trim Plate Replacement (D07) , or Front Floor Rear Console Trim Plate Replacement (DCH)
2 Front Floor Console Armrest Bolt [ 3x ] - - 2.1 N.m (19 lb in) Front Floor Console Armrest Latch Replacement (DCH) , or Front Floor Console Armrest Latch Replacement (D07) , or Front Floor Console Armrest Latch Replacement (DCK)
3 Front Floor Console Bolt [ 4x ] - - 45 N.m (33 lb ft) Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
4 Front Floor Console Bracket Bolt [ 4x ] - - 9 N.m (80 lb in) Front Floor Console Compartment Replacement
5 Front Floor Console Cup Holder Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Cup Holder Replacement
6 Front Floor Console Extension Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement - Left Side (without Denali) , or Front Floor Console Extension Panel Replacement - Left Side (with Denali)
7 Front Floor Console Intermediate Bracket Bolt [ 4x ] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
8 Front Floor Console Rear Cover Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement (DCH) , or Front Floor Console Rear Trim Panel Replacement (DCK, D07)
9 Front Floor Console Retainer Bolt [ 2x ] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
10 Front Floor Console Storage Tray Bolt [ 4x ] - - 2.2 N.m (19 lb in) Front Floor Console Stowage Tray Replacement (DCH without Denali) , or Front Floor Console Stowage Tray Replacement (DCH with Denali)
11 Front Floor Lower Console Bolt [ 2x ] - - 0.8 N.m (7 lb in) Front Floor Console Opening Protector Replacement
Front Floor Rear Console Trim Plate Replacement (D07) , or Front Floor Rear Console Trim Plate Replacement (DCH)

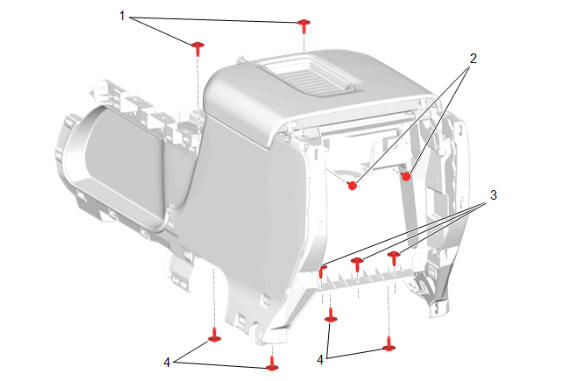

GM5682740Courtesy of GENERAL MOTORS COMPANY
Front Floor Console with DCK

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Intermediate Bracket Bolt [ 2x ] - - 9 N.m (80 lb in) Front Floor Console Compartment Cooler Replacement
2 Front Floor Console Compartment Bolt [ 2x ] - - 2.5 N.m (22 lb in) Front Floor Console Compartment Cooler Replacement
3 Front Floor Console Rear Bracket Bolt [ 3x ] - - 9 N.m (80 lb in) Front Floor Console Compartment Cooler Replacement
4 Front Floor Console Compartment Cooler Bolt [ 4x ] - - 9 N.m (80 lb in) Front Floor Console Compartment Cooler Replacement

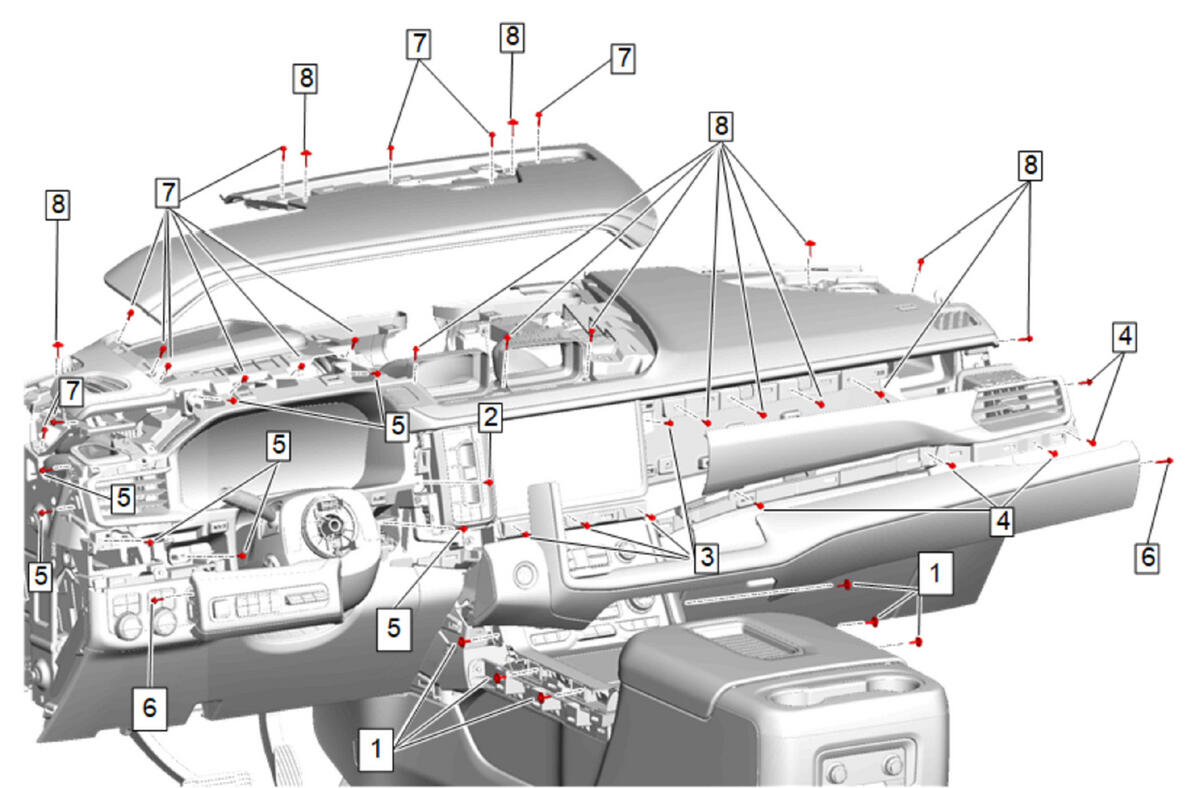

GM5609057Courtesy of GENERAL MOTORS COMPANY
Instrument Panel with Denali

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Floor Console Applique [ 6x ] - - 2.5 N.m (22 lb in) Rear Floor Console Applique Replacement (with Denali)
2 Instrument Panel Accessory Bezel Bolt - - 2.5 N.m (22 lb in) Instrument Panel Transmission Shift Opening Cover Replacement (without Denali) , or Instrument Panel Transmission Shift Opening Cover Replacement (with Denali)
3 Instrument Panel Accessory Trim Plate Bolt [ 4x ] - - 2.5 N.m (22 lb in) Instrument Panel Center Trim Plate Applique Replacement (without Denali) , or Instrument Panel Center Trim Plate Applique Replacement (with Denali)
4 Instrument Panel Bolt [ 5x ] - - 2.5 N.m (22 lb in) Instrument Panel Center Trim Plate Applique Replacement - Right Side (with Denali)
5 Instrument Panel Cluster Trim Plate Bolt [ 7x ] - - 2.5 N.m (22 lb in) Instrument Panel Cluster Trim Plate Replacement (without Denali) , or Instrument Panel Cluster Trim Plate Replacement (with Denali)
6 Instrument Panel Trim Pad Bolt [ 2x ] - - 2.5 N.m (22 lb in) Instrument Panel Trim Pad Replacement - Left Side (without Denali) , or Instrument Panel Trim Pad Replacement - Left Side (with Denali)
Instrument Panel Trim Pad Replacement - Right Side (without Denali) , or Instrument Panel Trim Pad Replacement - Right Side (with Denali)
7 Instrument Panel Upper Bolt [ 12x ] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Replacement - Left Side (with Denali)
Head-Up Display Bezel Replacement (with Denali)
8 Instrument Panel Upper Trim Panel Bolt [ 13x ] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Removal and Installation - Right Side (with Denali)
Instrument Panel Upper Trim Panel Replacement - Right Side (with Denali)
Head-Up Display Bezel Replacement (with Denali)
Instrument Panel Instrument Cluster Hood Replacement (with Denali)

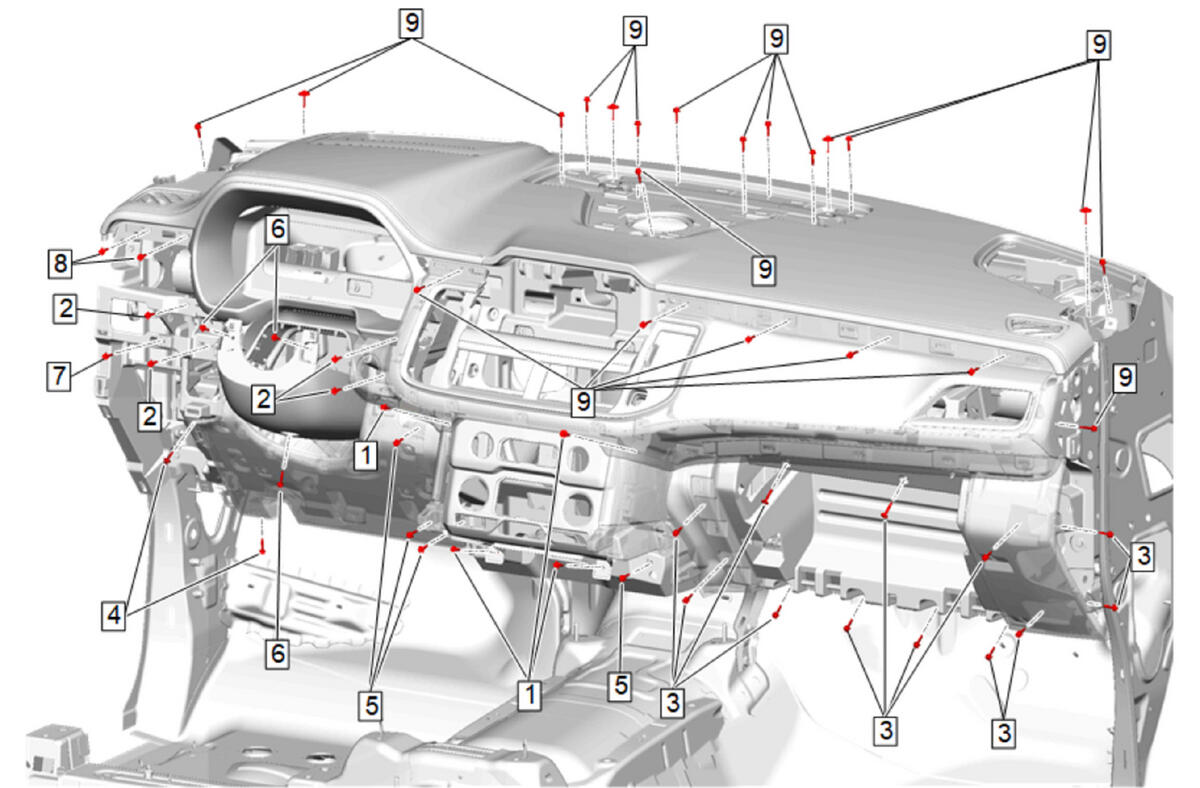

GM5519684Courtesy of GENERAL MOTORS COMPANY
Instrument Panel without Denali

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Accessory Bezel Bolt [ 4x ] - - 2.5 N.m (22 lb in) Instrument Panel Accessory Bezel Replacement (without Denali) , or Instrument Panel Accessory Bezel Replacement (with Denali)
2 Instrument Panel Cluster Trim Plate Bolt [ 4x ] - - 2.5 N.m (22 lb in) Instrument Panel Cluster Trim Plate Replacement (without Denali) , or Instrument Panel Cluster Trim Plate Replacement (with Denali)
3 Instrument Panel Compartment Bolt [ 12x ] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement (without Denali) , or Instrument Panel Compartment Replacement (with Denali)
4 Instrument Panel Knee Bolster Bolt [ 2x ] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement (without Denali) , or Instrument Panel Knee Bolster Replacement (with Denali)
5 Instrument Panel Lower Trim Panel Bolt [ 4x ] - - 2.5 N.m (22 lb in) Instrument Panel Lower Trim Panel Replacement - Left Side (without Denali) , or Instrument Panel Lower Trim Panel Replacement - Left Side (with Denali)
Instrument Panel Lower Trim Panel Replacement - Right Side (without Denali) , or Instrument Panel Lower Trim Panel Replacement - Right Side (with Denali)
6 Instrument Panel Steering Column Lower Trim Cover Bolt [ 3x ] - - 2.5 N.m (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement (N37) , or Instrument Panel Steering Column Lower Trim Cover Replacement (N38)
7 Instrument Panel Switch Trim Plate Bolt - - 2.5 N.m (22 lb in) Instrument Panel Switch Trim Plate Replacement (without Denali) , or Instrument Panel Switch Trim Plate Replacement (with Denali)
8 Instrument Panel Trim Pad Bolt [ 2x ] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Replacement (without Denali)
9 Instrument Panel Upper Trim Panel Bolt [ 15x ] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Replacement (without Denali)
Instrument Panel Trim Pad Replacement - Right Side (without Denali) , or Instrument Panel Trim Pad Replacement - Right Side (with Denali)

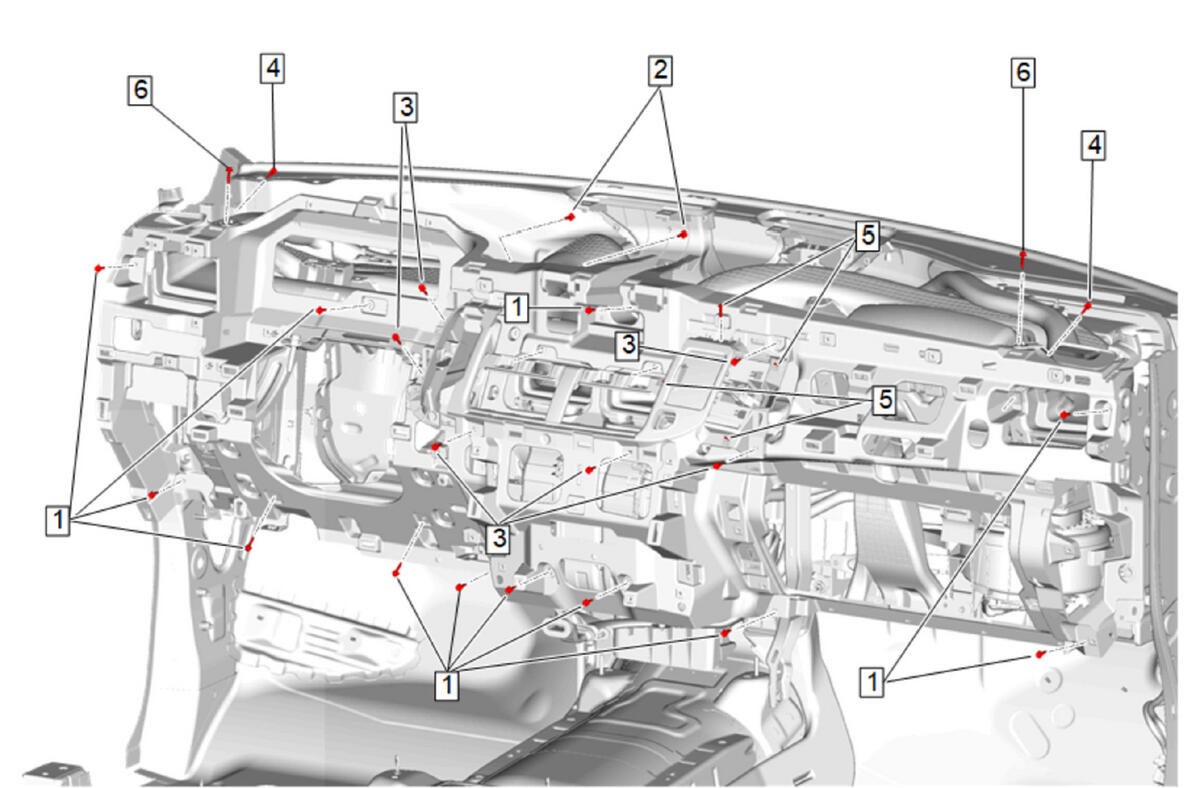

GM5519685Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Carrier

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Carrier Bolt [ 12x ] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (with UV6, without Denali) , or Instrument Panel Carrier Replacement (without UV6, without Denali) , or Instrument Panel Carrier Replacement (with Denali)
2 Instrument Panel Center Air Outlet Duct Bolt [ 2x ] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (with UV6, without Denali) , or Instrument Panel Carrier Replacement (without UV6, without Denali) , or Instrument Panel Carrier Replacement (with Denali)
3 Instrument Panel Center Trim Panel Bolt [ 6x ] - - 2.5 N.m (22 lb in) Instrument Panel Transmission Shift Opening Cover Replacement (without Denali) , or Instrument Panel Transmission Shift Opening Cover Replacement (with Denali)
4 Instrument Panel Outer Air Outlet Duct Bolt [ 2x ] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (with UV6, without Denali) , or Instrument Panel Carrier Replacement (without UV6, without Denali) , or Instrument Panel Carrier Replacement (with Denali)
5 Instrument Panel Upper Compartment Bolt [ 4x ] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (with UV6, without Denali) , or Instrument Panel Carrier Replacement (without UV6, without Denali) , or Instrument Panel Carrier Replacement (with Denali)
6 Side Window Defogger Outlet Duct Bolt [ 2x ] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (with UV6, without Denali) , or Instrument Panel Carrier Replacement (without UV6, without Denali) , or Instrument Panel Carrier Replacement (with Denali)

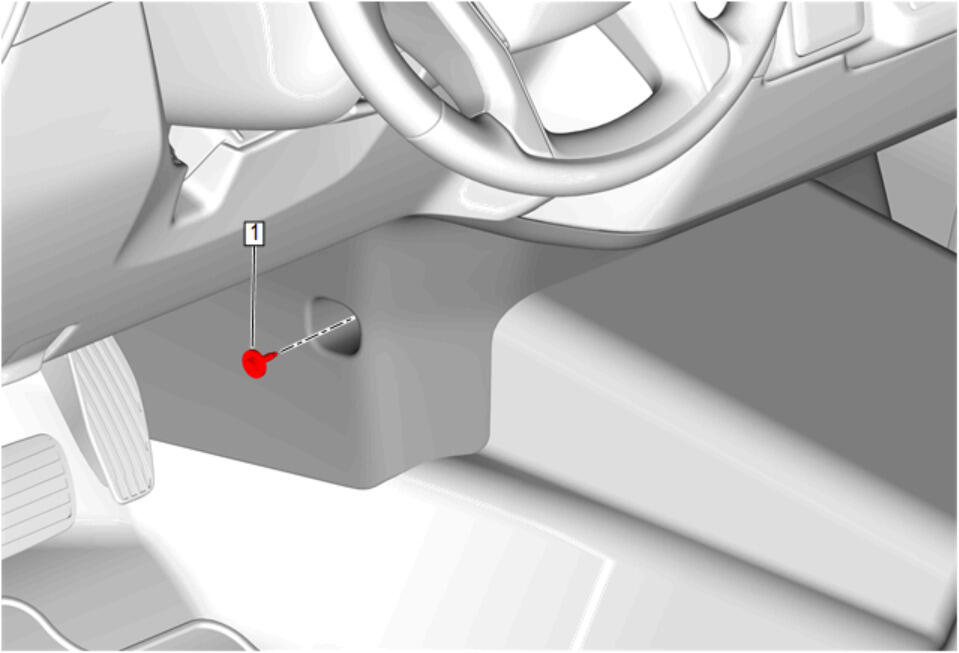

GM5022868Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Lower Center Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Lower Trim Panel Bolt - - 2.5 N.m (22 lb in) Instrument Panel Lower Center Trim Panel Replacement (without floor console)

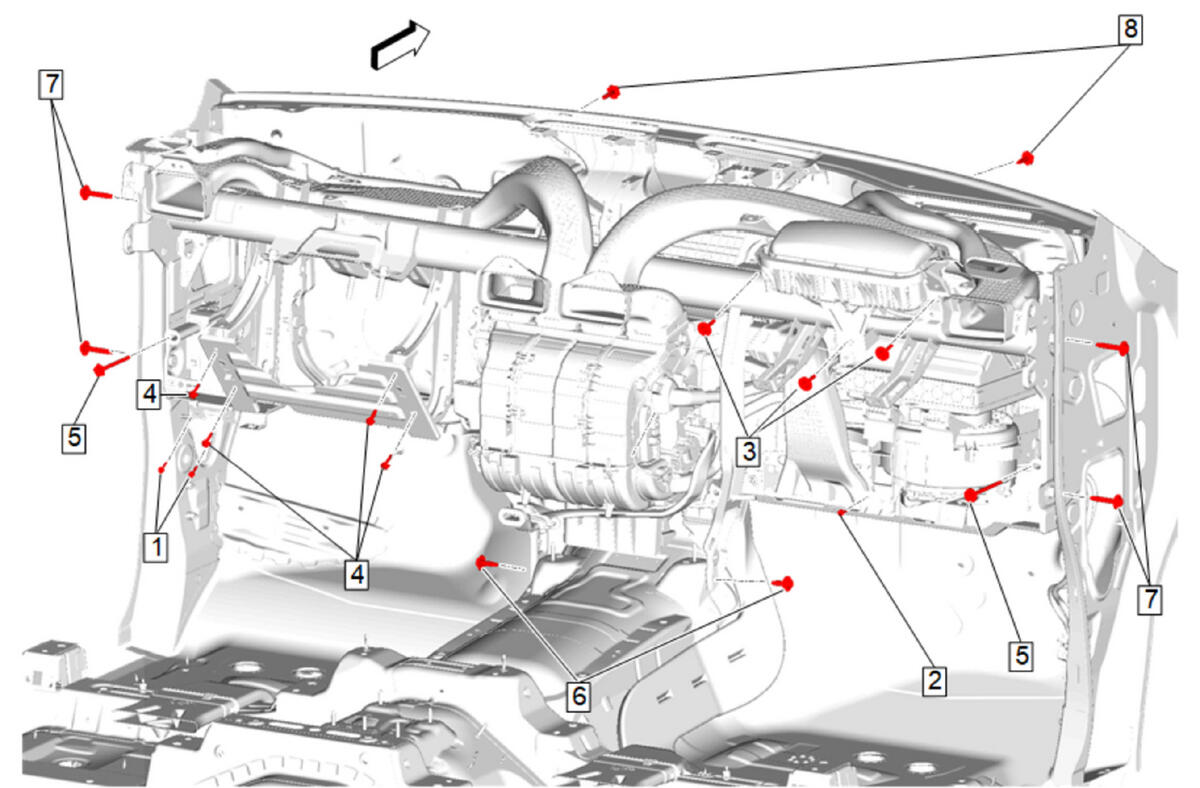

GM5521102Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Data Link Connector Bolt - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement
2 Heater and Air Conditioning Evaporator and Blower Module Bolt @ Air Conditioning Evaporator Case - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement
3 Instrument Panel Airbag Bolt [ 3x ] - - 9 N.m (80 lb in) Instrument Panel Upper Trim Panel Replacement (without Denali)
4 Instrument Panel Driver Knee Bolster Brace Bolt [ 4x ] - - 9 N.m (80 lb in) Instrument Panel Knee Bolster Deflector Replacement (with UV6 without Denali) , or Instrument Panel Knee Bolster Deflector Replacement (without UV6 without Denali) , or Instrument Panel Knee Bolster Deflector Replacement (with Denali)
5 Instrument Panel Tie Bar Bolt [ 2x ] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
6 Instrument Panel Tie Bar Bolt @ Floor Panel Tunnel Panel [ 2x ] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
7 Instrument Panel Tie Bar Bolt @ Front Side Door [ 4x ] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
8 Instrument Panel Tie Bar Bolt @ Plenum Lower Panel [ 2x ] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement

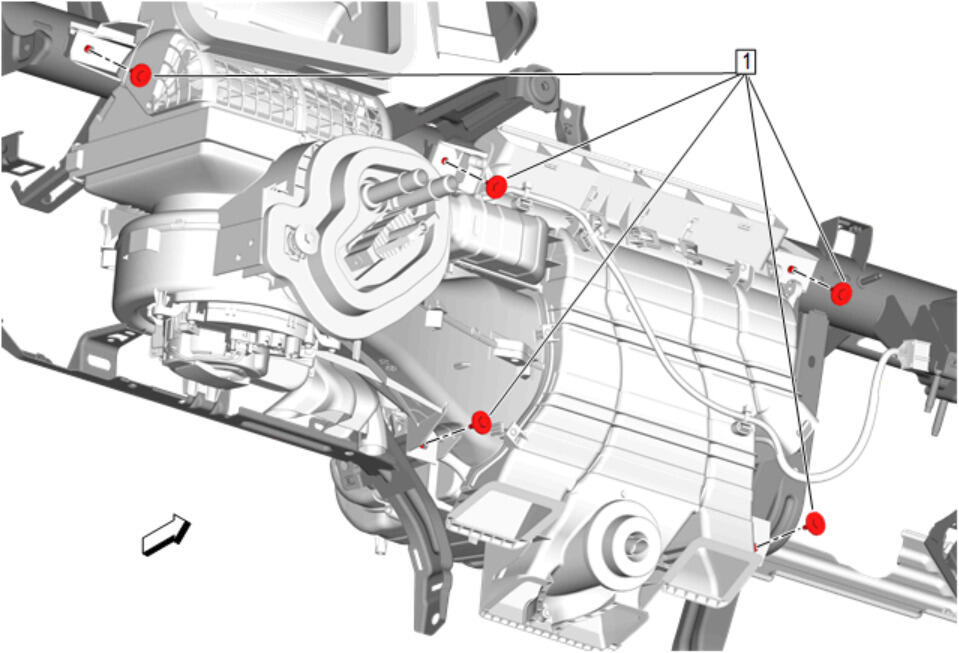

GM5042218Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar-Inboard

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt @ Heater and Air Conditioning Evaporator and Blower Module [ 5x ] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement

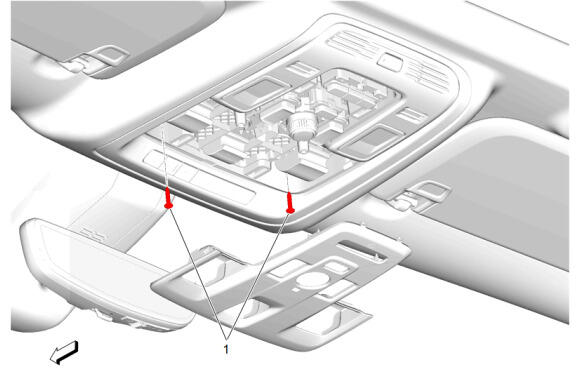

GM5581901Courtesy of GENERAL MOTORS COMPANY
Roof Console

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Console Bolt [ 2x ] - - 2.5 N.m (22 lb in) Roof Console Replacement

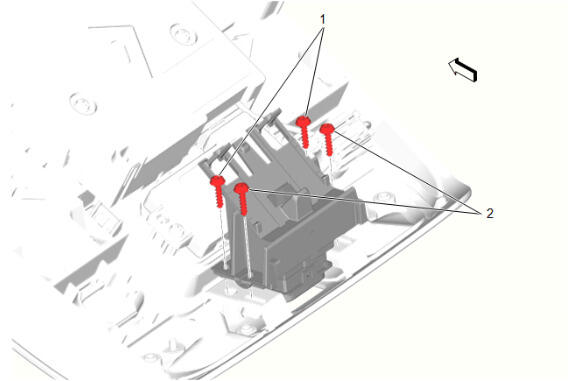

GM5779110Courtesy of GENERAL MOTORS COMPANY
Theft Intrusion Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Console Bracket Bolt [ 2x ] - - 4.5 N.m (40 lb in) Roof Console Replacement
2 Roof Console Bracket Bolt [ 2x ] - - 2.4 N.m (21 lb in) Roof Console Replacement
