Home >> GMC >> 2021 >> Yukon AT4 >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic Wiring Diagrams >> Antilock Brake System Wiring Schematics >> Module Power, Ground, Serial Data, Indicators, and Subsystem References

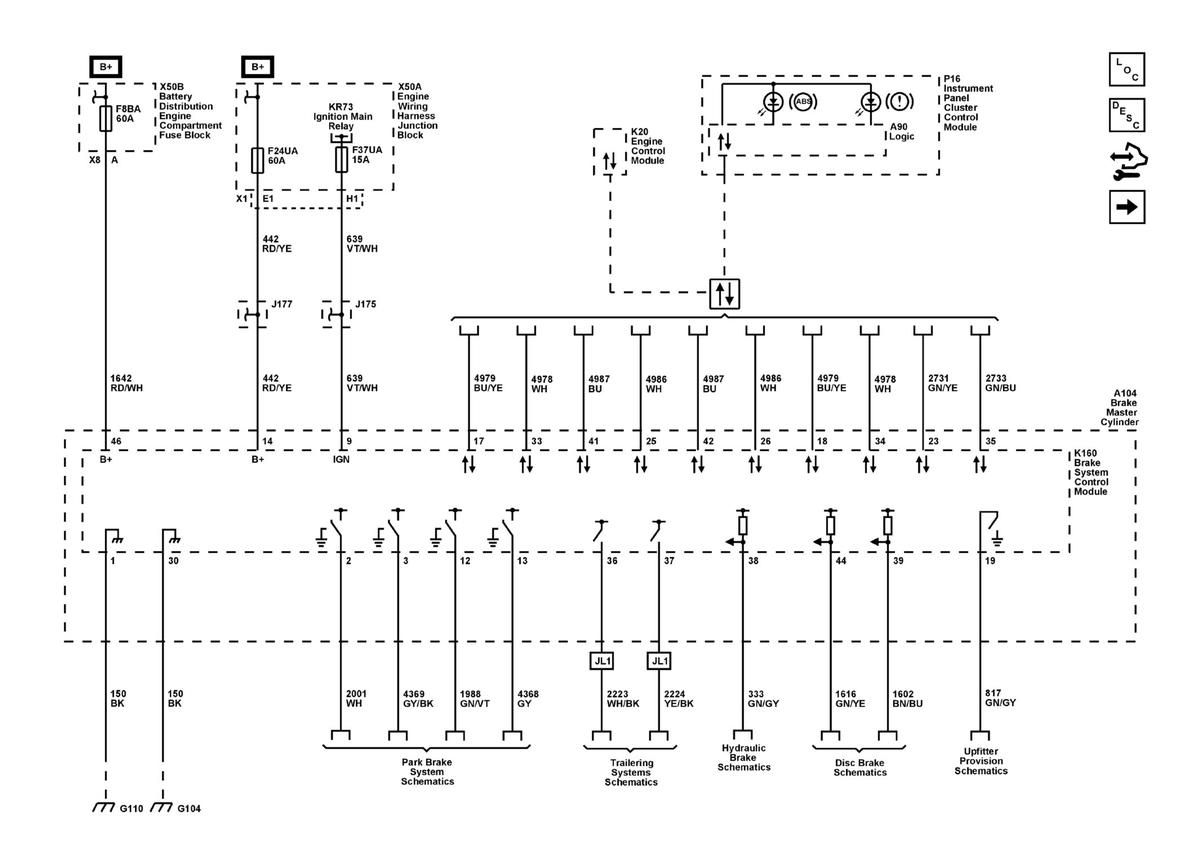

Module Power, Ground, Serial Data, Indicators, and Subsystem References

GM5371003

Courtesy of GENERAL MOTORS COMPANY
