Installation Procedure

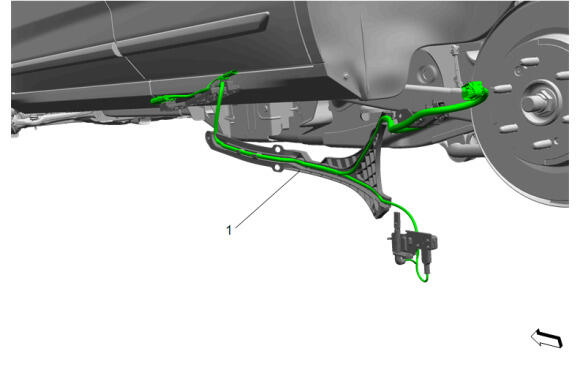

Install the chassis rear wiring harness extension harness (1).

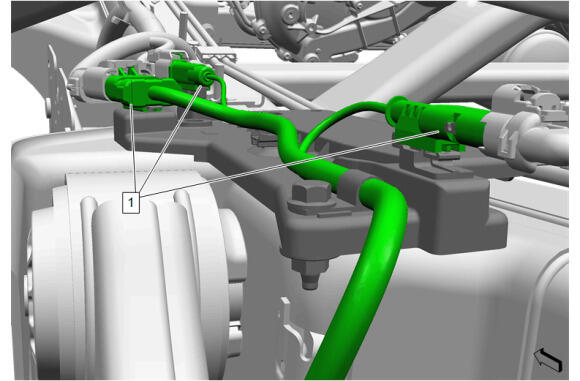

Connect the 3 chassis rear wiring harness extension harness connectors (1).

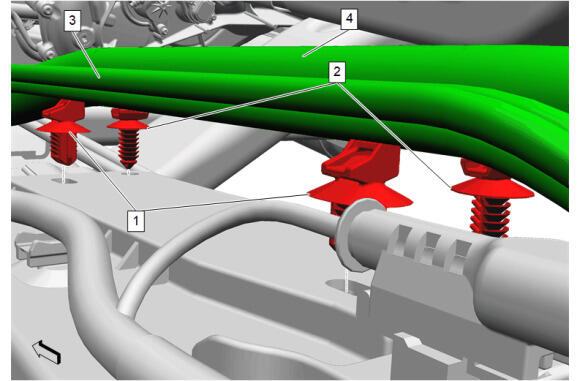

Position the master chassis harness (4) into place.
- {If equipped} Position the air suspension air line (3) into place.
- Wiring Harness Retainer (2) - Install [ 2x ]
- {If equipped} Retainer (1) - Install [ 2x ]
- CAUTION:

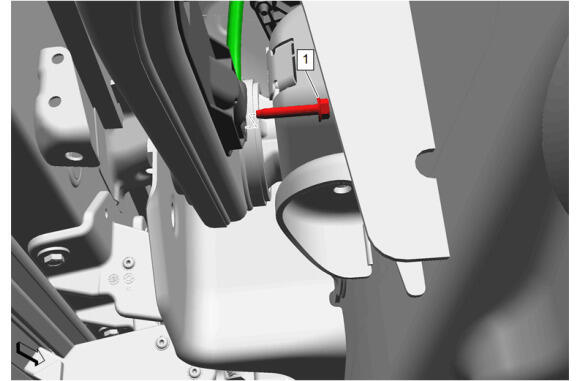

Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications

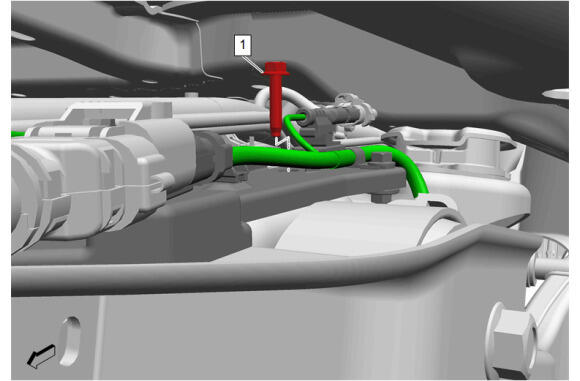

Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications

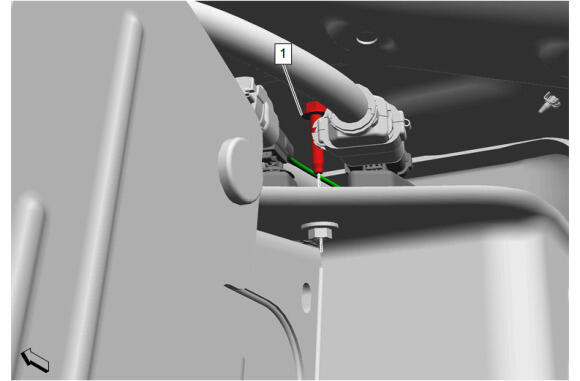

Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications

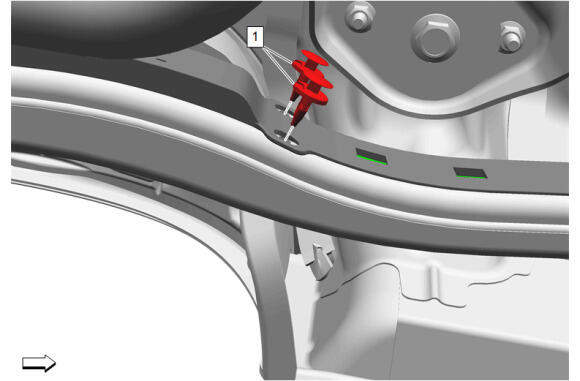

Chassis Rear Wiring Harness Clip (1) - Install [ 2x ]
- NOTE:
It may be necessary to raise rear suspension to create clearance for full removal/install of upper bracket bolt.

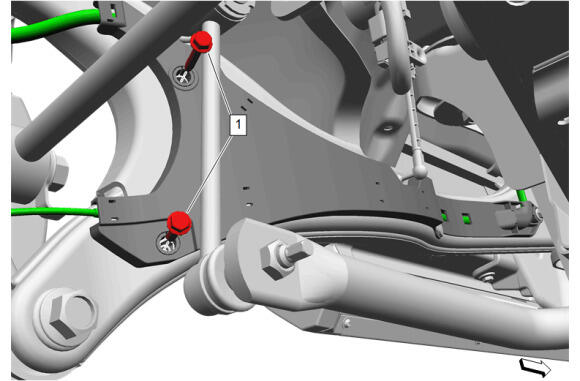

Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

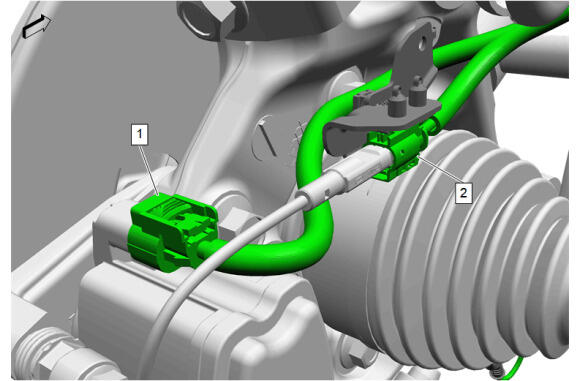

Electrical Connector (1) @ Rear Parking Brake Actuator - Connect
- {If equipped} Electrical Connector (2) @ Rear Disc Brake Pad Wear Sensor - Connect

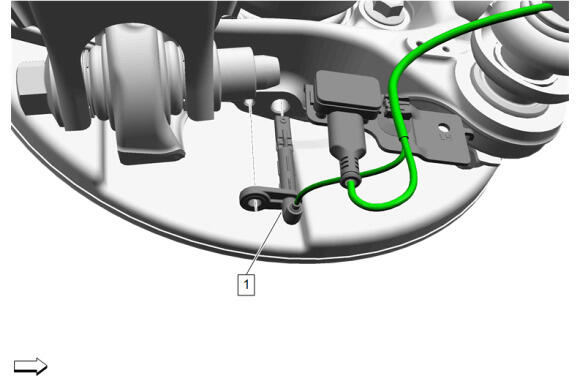

Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor (1) and mounting pad on the rear steering knuckle. Adhesives, Fluids, Lubricants, and Sealers
- Rear Wheel Speed Sensor (1) - Install
Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
- Verify the repair is complete. Diagnostic Repair Verification
