Removal Procedure

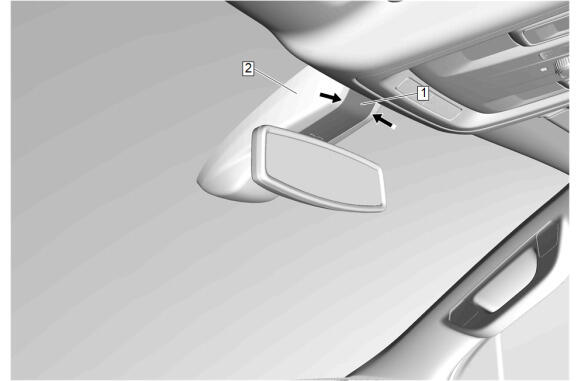

Insert a suitable flat-bladed plastic trim tool between the windshield multifunction sensor mount bracket cover insert (1) and windshield multifunction sensor mount bracket cover (2).
- Separate the windshield multifunction sensor mount bracket cover insert (1) from the windshield multifunction sensor mount bracket cover (2).
Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Remove
Using a suitable plastic trim tool, carefully pry downward on the windshield multifunction sensor mount bracket cover (1) to release it from the windshield.
- Pull downward to remove the windshield multifunction sensor mount bracket cover (1) from the windshield.
Disconnect all electrical connectors.
- Release the retaining tabs.
- Inside Rearview Mirror Bolt (1) - Remove
- Inside Rearview Mirror (2) - Remove
