Fastener Specifications

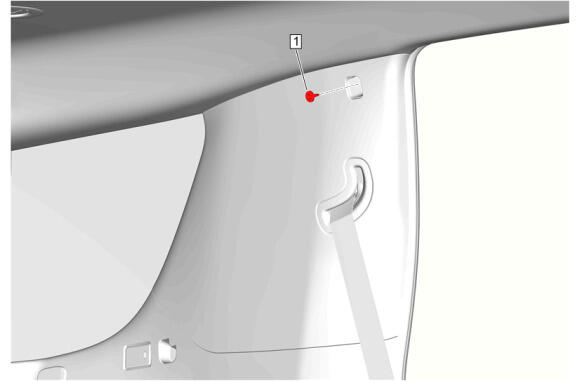

GM5582398Courtesy of GENERAL MOTORS COMPANY
Body Lock Pillar Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Quarter Window Trim Finish Panel Bolt - - 2.5 N.m (22 lb in) Body Lock Pillar Upper Trim Panel Replacement
GM5582400Courtesy of GENERAL MOTORS COMPANY

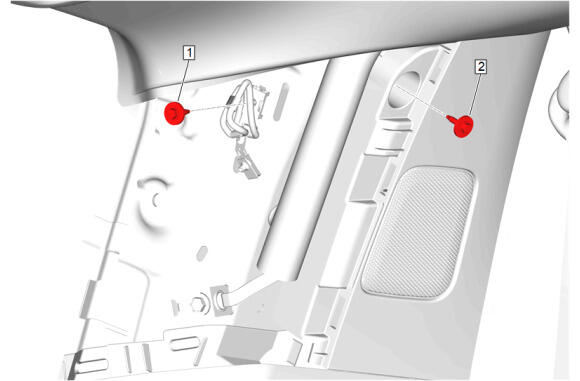

Body Rear Corner Upper Garnish Molding, Body Side Rear Window Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Body Rear Corner Upper Garnish Molding Bolt - - 2.5 N.m (22 lb in) Body Rear Corner Upper Garnish Molding Replacement
2 Body Side Rear Window Garnish Molding Bolt - - 2.5 N.m (22 lb in) Body Side Rear Window Garnish Molding Replacement

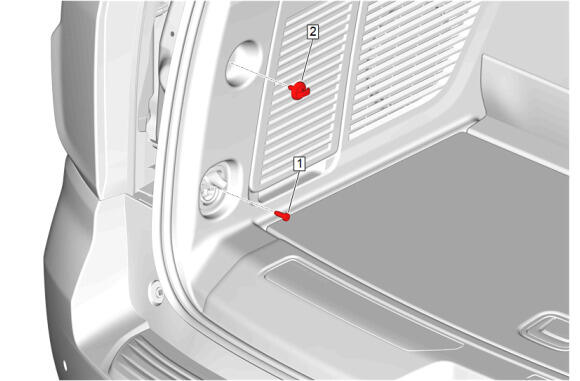

GM5582414Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop, Convenience Net

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt - - 20 N.m (15 lb ft) Cargo Tie Down Loop Replacement
2 Convenience Net Retainer - - 2 N.m (18 lb in) Convenience Net Retainer Replacement
GM5606194Courtesy of GENERAL MOTORS COMPANY

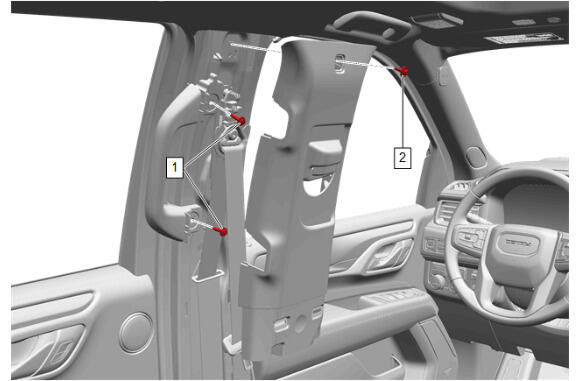

Center Pillar Upper Trim Panel, Center Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Assist Handle Bolt [ 2x ] - - 9 N.m (80 lb in) Center Pillar Assist Handle Replacement
2 Center Pillar Upper Garnish Molding Bolt - - 2.5 N.m (22 lb in) Center Pillar Upper Trim Panel Replacement
GM5577690Courtesy of GENERAL MOTORS COMPANY

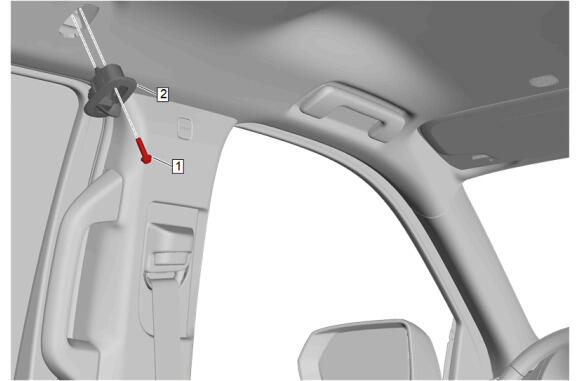

Coat Hook

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Coat Hook Bolt - - 6 N.m (53 lb in) Coat Hook Replacement
GM5587508Courtesy of GENERAL MOTORS COMPANY

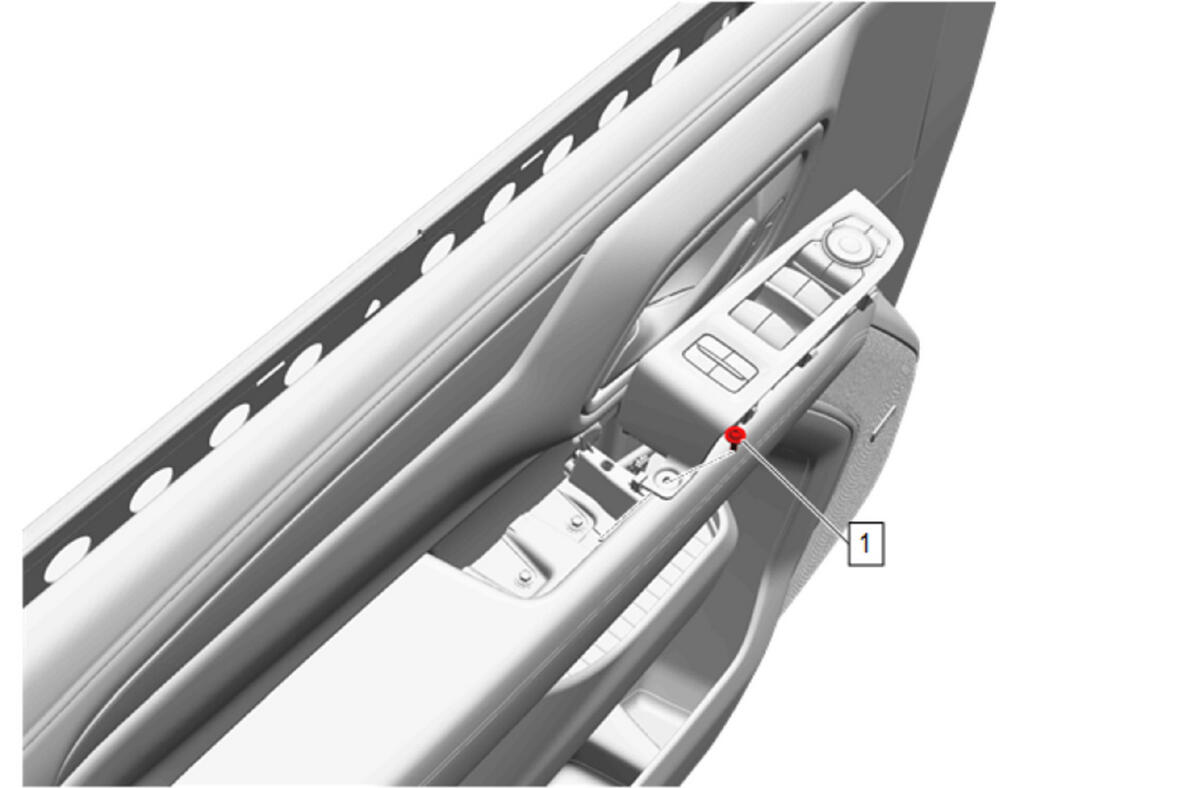

Front Side Door Accessory Switch Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt - - 2.5 N.m (22 lb in) Front Side Door Accessory Switch Mount Plate Replacement - Driver Side
GM5587021Courtesy of GENERAL MOTORS COMPANY

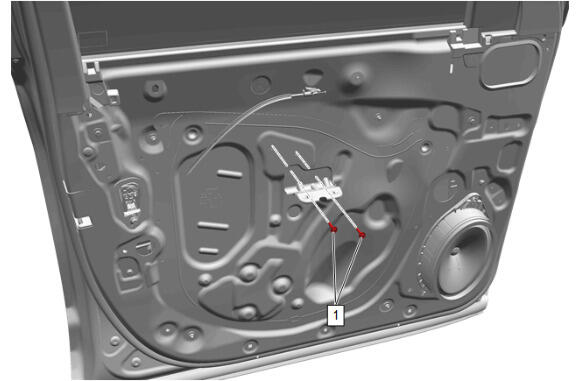

Front Side Door Pull Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Bracket Bolt [ 2x ] - - 2.5 N.m (22 lb in) Front Side Door Pull Handle Bracket Replacement

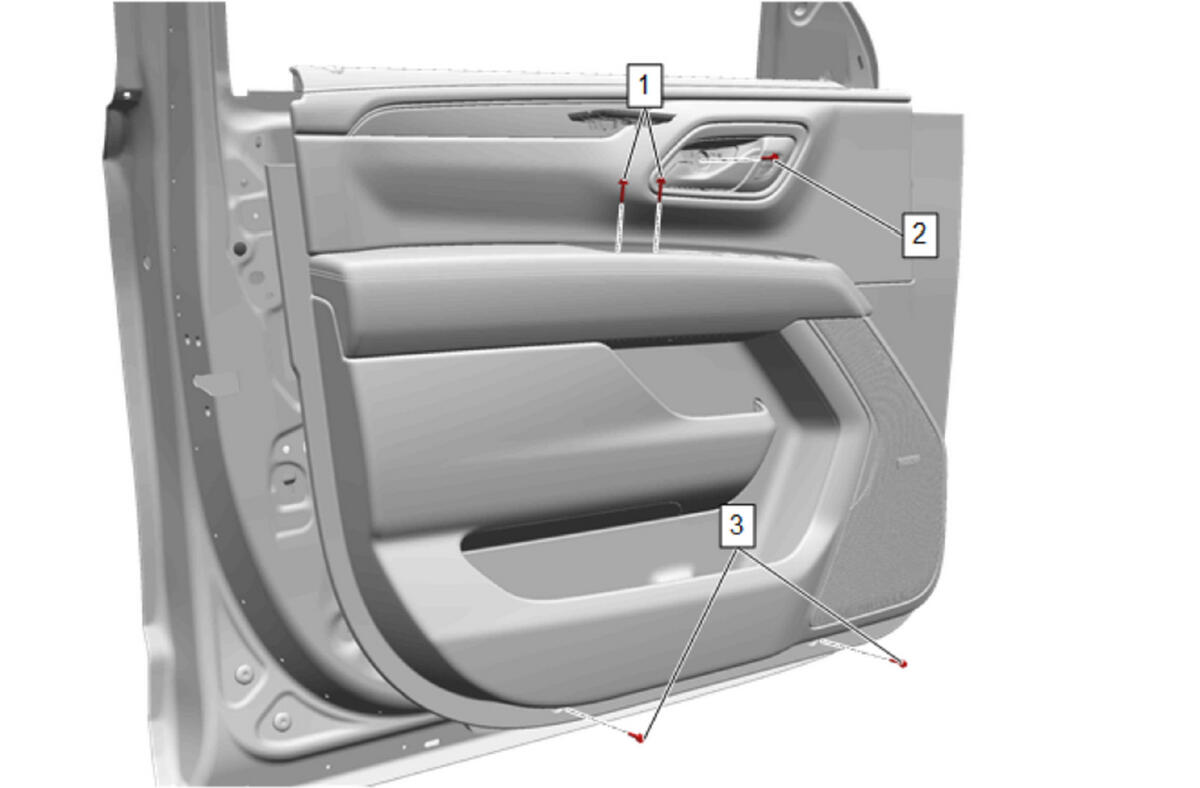

GM5586530Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Pull Cup Bolt [ 2x ] - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation
2 Front Side Door Inside Handle Bolt - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation
3 Front Side Door Trim Panel Bolt [ 2x ] - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation

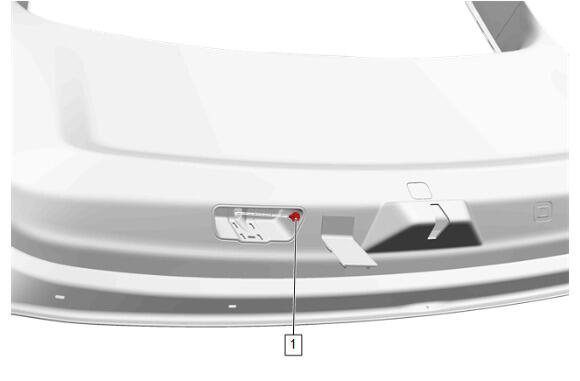

GM5587503Courtesy of GENERAL MOTORS COMPANY
Liftgate Lower Trim Finish Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Lower Trim Finish Panel Bolt - - 2.5 N.m (22 lb in) Liftgate Lower Trim Finish Panel Replacement
GM5587071Courtesy of GENERAL MOTORS COMPANY

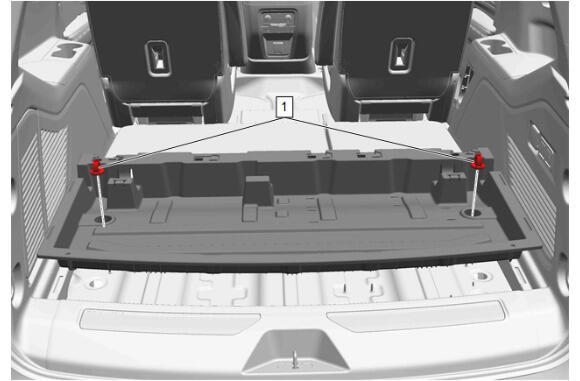

Rear Compartment Floor Stowage Trim Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Compartment Floor Stowage Compartment Divider Retainer [ 2x ] - - 2.5 N.m (22 lb in) Rear Compartment Floor Stowage Trim Compartment Replacement

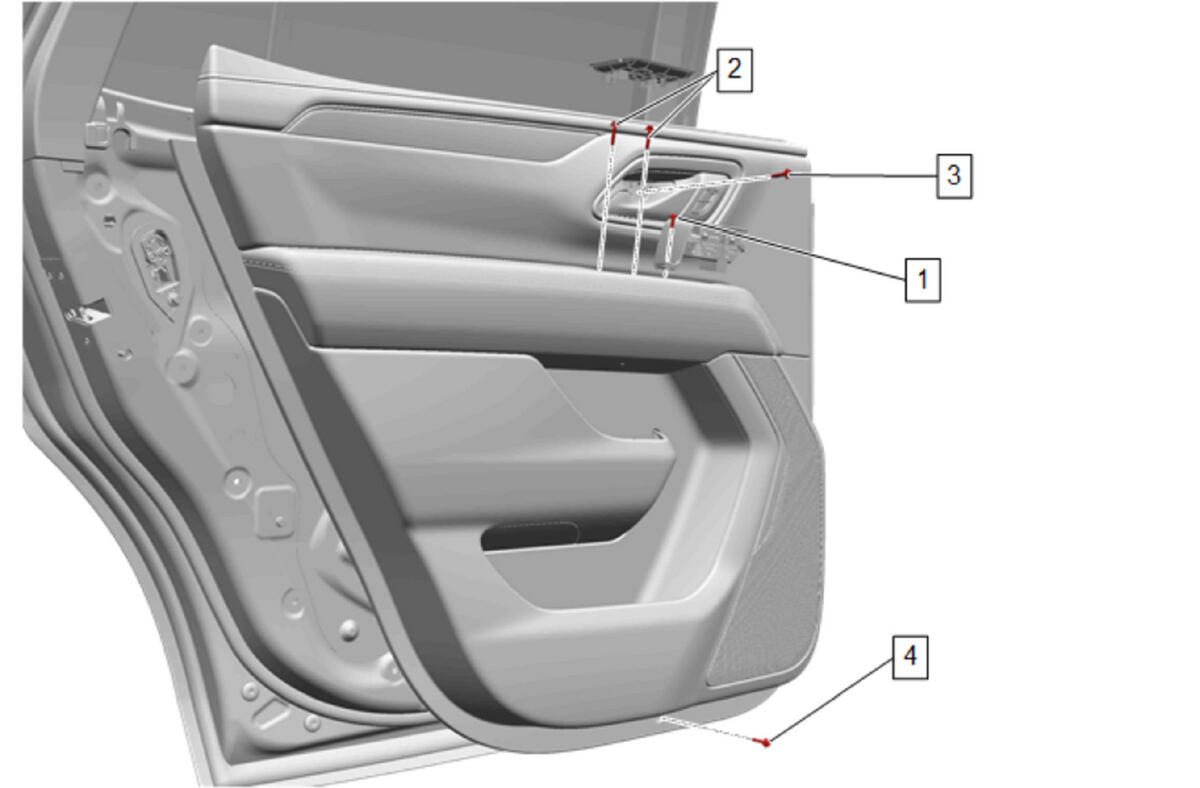

GM5587443Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Accessory Switch Mount Plate, Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Panel Bolt - - 2.5 N.m (22 lb in) Rear Side Door Accessory Switch Mount Plate Replacement
2 Rear Side Door Armrest Pull Cup Bolt [ 2x ] - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation
3 Rear Side Door Inside Handle Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation
4 Rear Side Door Trim Panel Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation

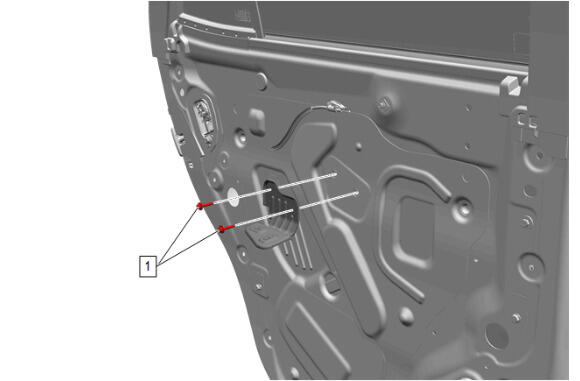

GM5591303Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Pull Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Bolt [ 2x ] - - 2.5 N.m (22 lb in) Auxiliary Rear Side Door Water Deflector Replacement

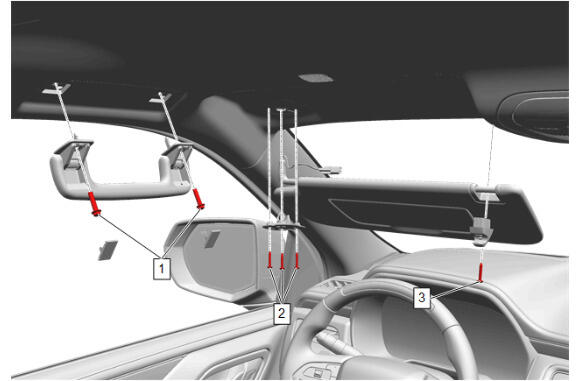

GM5586429Courtesy of GENERAL MOTORS COMPANY
Roof Rail Assist Handle, Sunshade, Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Rail Assist Handle Bolt [ 2x ] - - 9 N.m (80 lb in) Roof Rail Assist Handle Replacement
2 Sunshade Bolt [ 3x ] - - 2.5 N.m (22 lb in) Sunshade Replacement - Left Side (without Denali) , or Sunshade Replacement - Left Side (with Denali)
Sunshade Replacement - Right Side (without Denali) , or Sunshade Replacement - Right Side (with Denali)
3 Sunshade Support Bolt - - 2 N.m (18 lb in) Sunshade Support Replacement (without Denali) , or Sunshade Support Replacement (with Denali)
GM5663431Courtesy of GENERAL MOTORS COMPANY

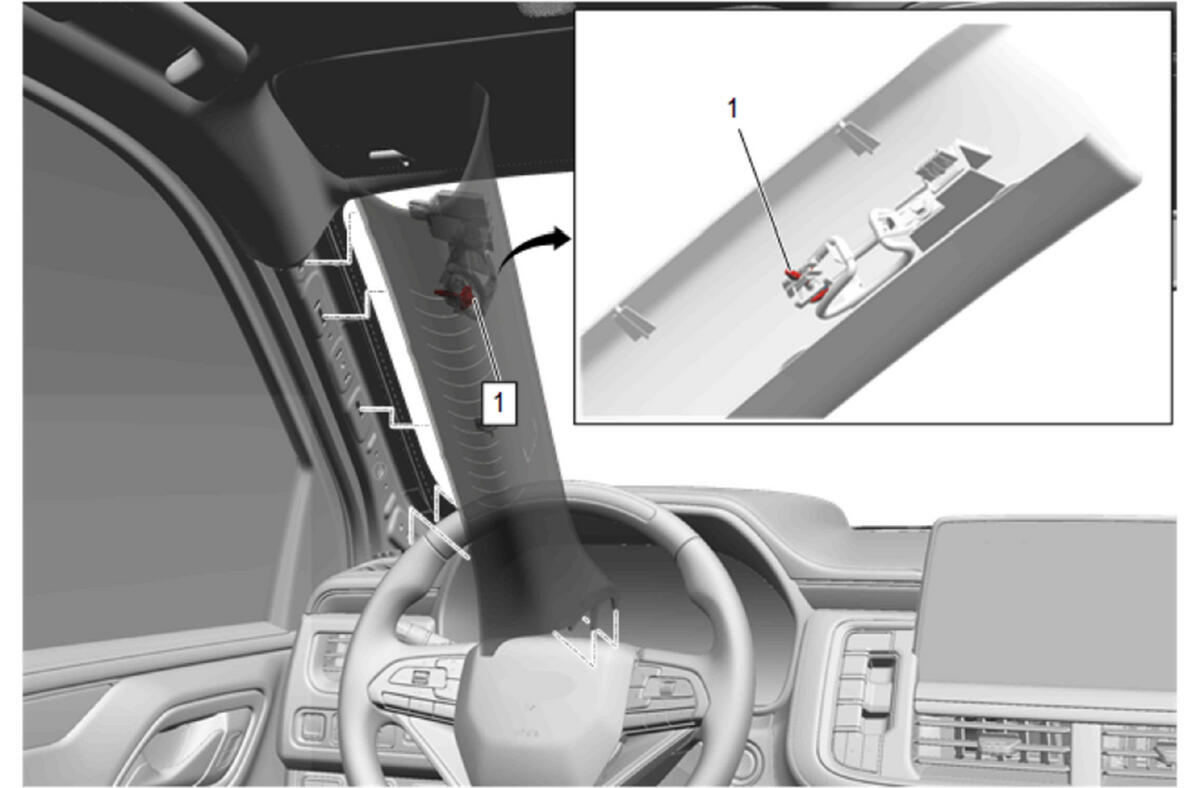

Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Garnish Molding Bolt - - 2.5 N.m (22 lb in)

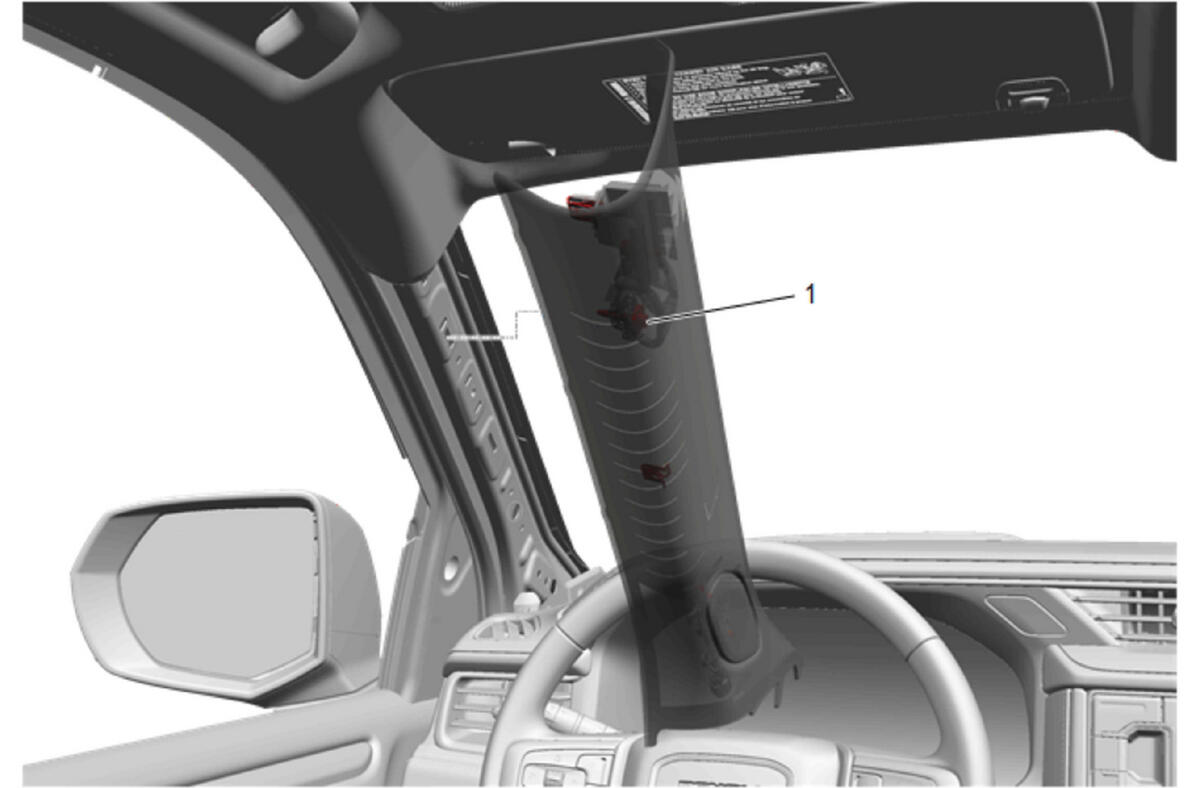

GM5663714Courtesy of GENERAL MOTORS COMPANY
Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Garnish Molding Bolt - - 2.5 N.m (22 lb in) Windshield Garnish Molding Replacement - Left Side (without Denali) , or Windshield Garnish Molding Replacement - Left Side (with Denali)
Windshield Garnish Molding Replacement - Right Side (without Denali) , or Windshield Garnish Molding Replacement - Right Side (with Denali)
GM5607580Courtesy of GENERAL MOTORS COMPANY

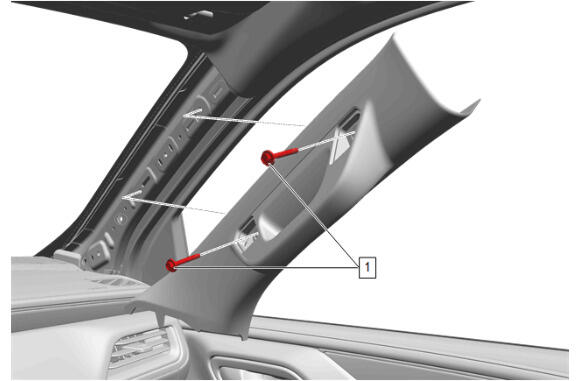

Windshield Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Pillar Assist Handle Bolt [ 2x ] - - 9 N.m (80 lb in) Windshield Garnish Molding Replacement - Right Side (without Denali) , or Windshield Garnish Molding Replacement - Right Side (with Denali)
