Fastener Specifications

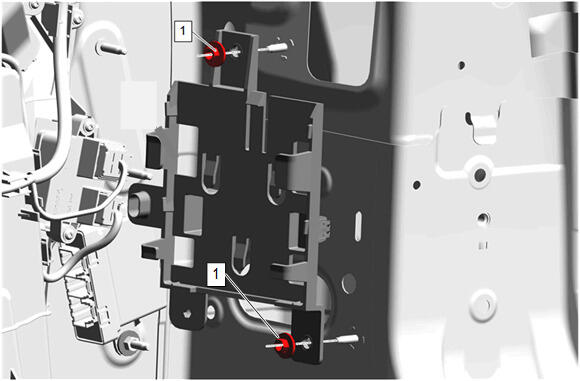

Active Safety Control Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Active Safety Control Module Bracket Nut [ 2x ] | - | - | 9 N.m (80 lb in) | Active Safety Control Module Bracket Replacement |

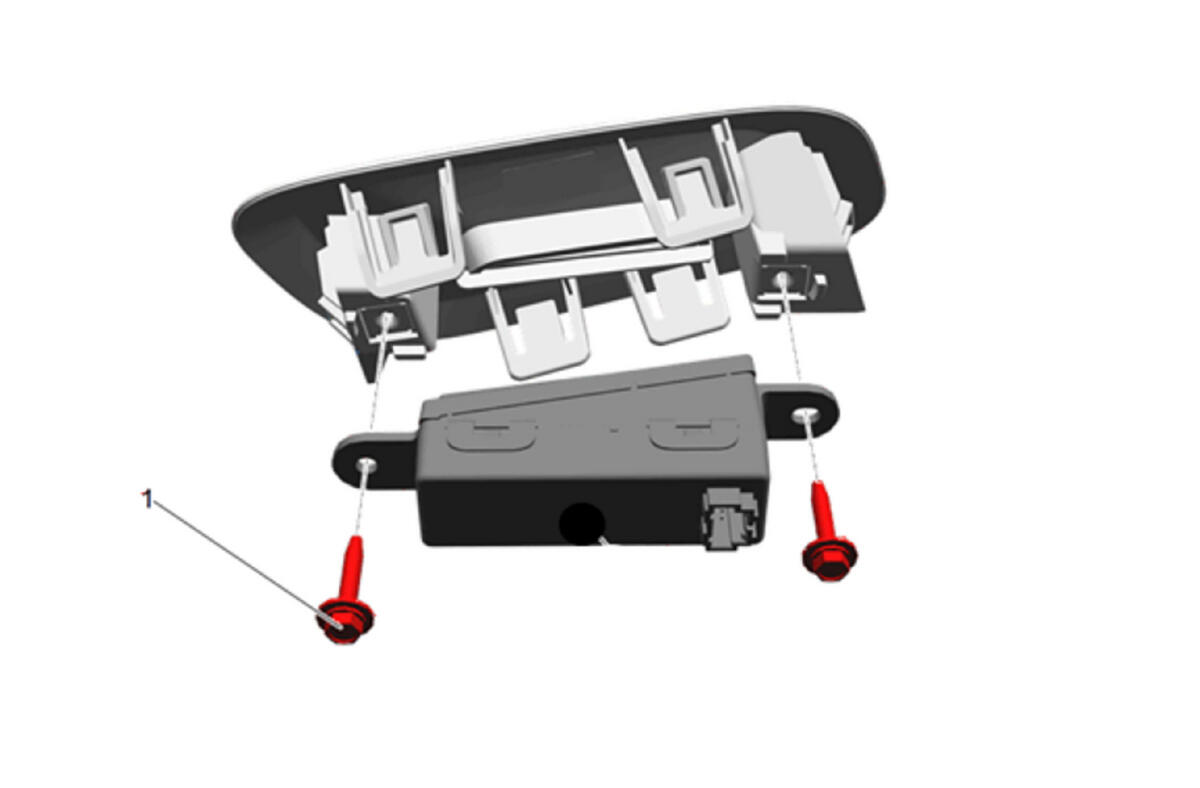

Forward Collision Alert Display
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement |

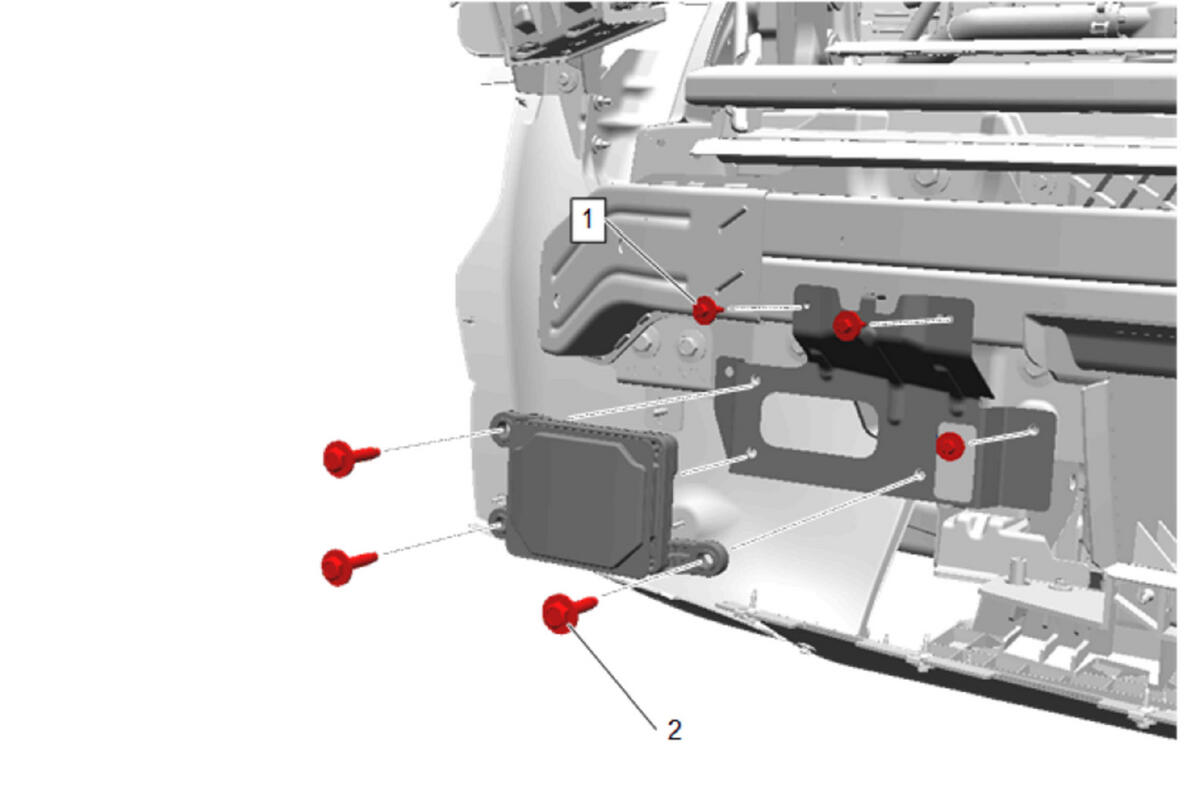

Front Body Mounted Sensors
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Range Radar Bracket Bolt [ 3x ] | - | - | 9 N.m (80 lb in) | Forward Range Radar Bracket Replacement |
| 2 | Forward Range Radar Sensor Bolt [ 3x ] | - | - | 2.5 N.m (22 lb in) | Forward Range Radar Sensor Replacement |

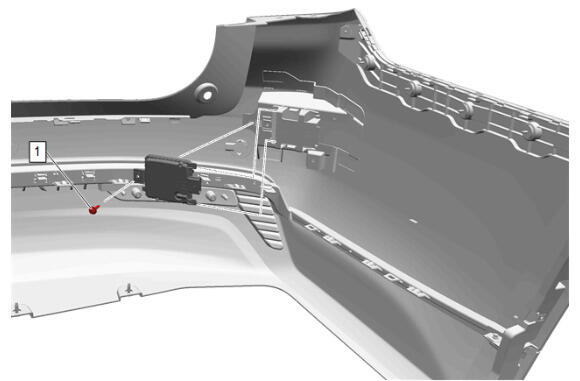

Side Object Sensing Alert Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Side Object Sensing Alert Module Bolt | - | - | 2.5 N.m (22 lb in) | Side Obstacle Detection Control Module Replacement |
