Removal Procedure

  1. Raise and support the vehicle.

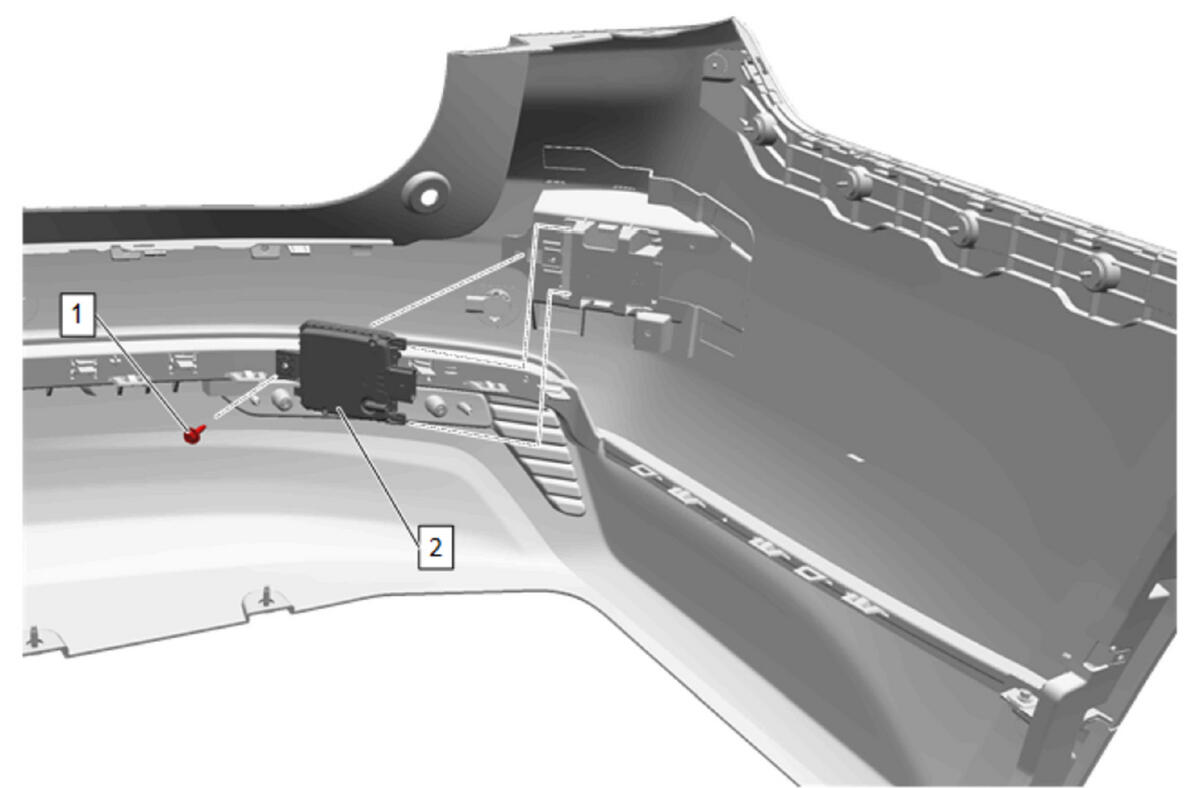

  2. GM5567759Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Side Object Sensing Alert Module Bolt (1) - Remove
  4. Side Object Sensing Alert Module (2) - Remove
