Wheels/Vehicle Underbody Component Views: Underbody

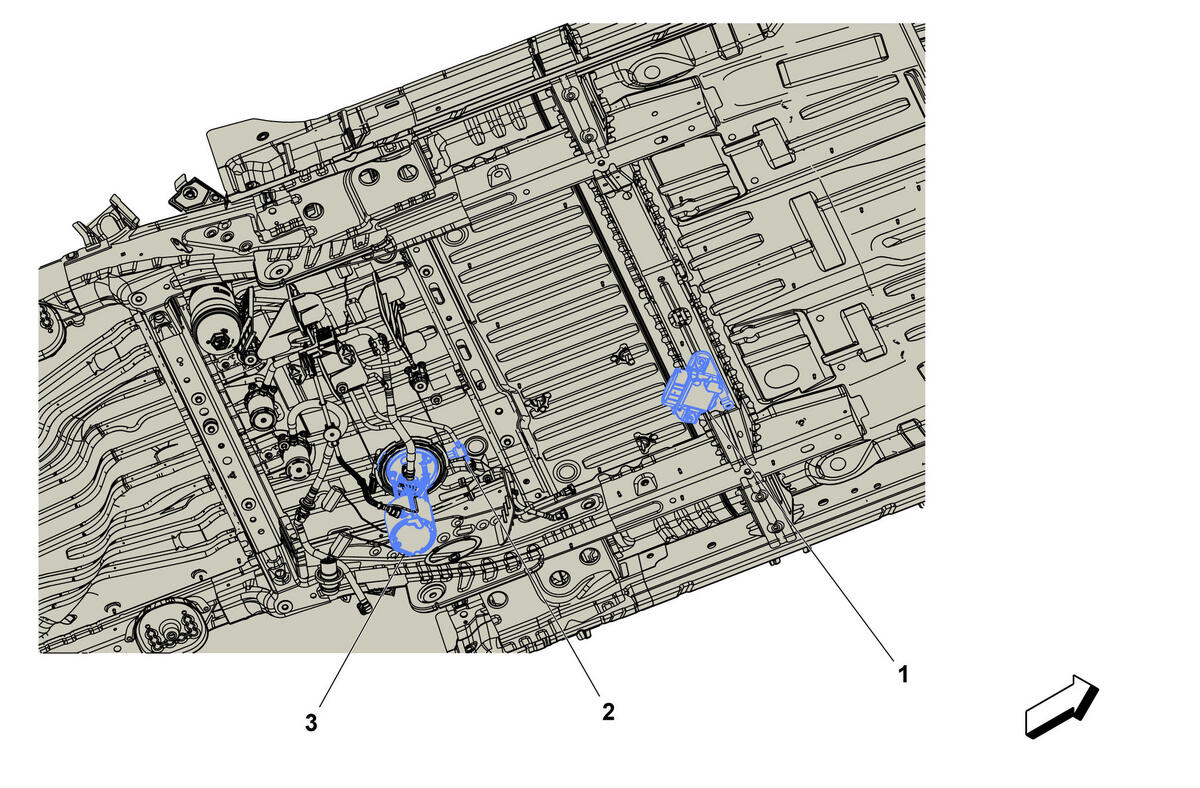

GM4595328Courtesy of GENERAL MOTORS COMPANY
Underbody

Items
1. K111 Fuel Pump Driver Control Module
K111 Fuel Pump Driver Control Module .
2. B47 Fuel Pressure Sensor
B47 Fuel Pressure Sensor .
3. A7 Fuel Pump and Level Sensor Assembly
A7 Fuel Pump and Level Sensor Assembly (F48) , or
A7 Fuel Pump and Level Sensor Assembly (FWD) .
