Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

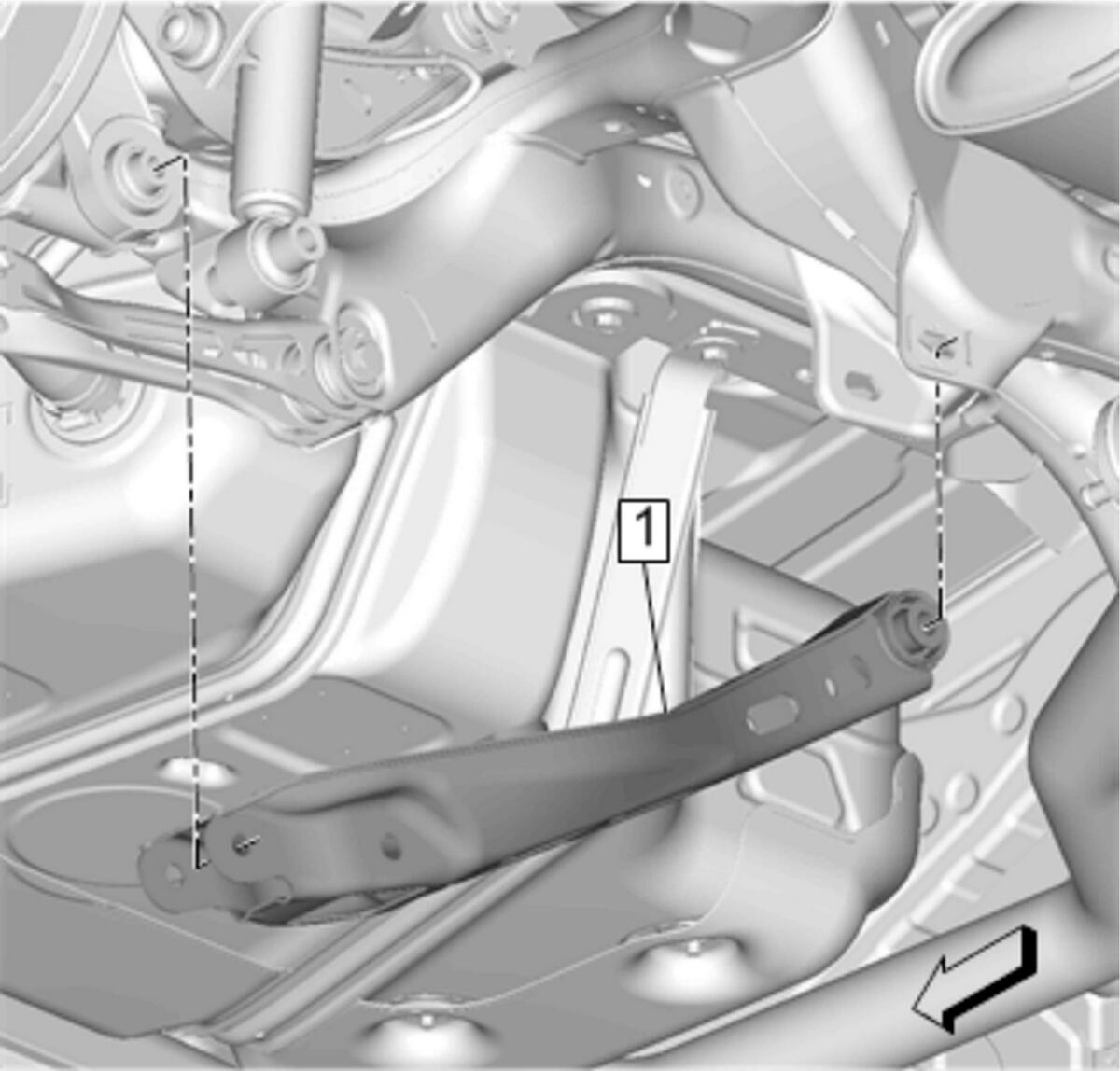

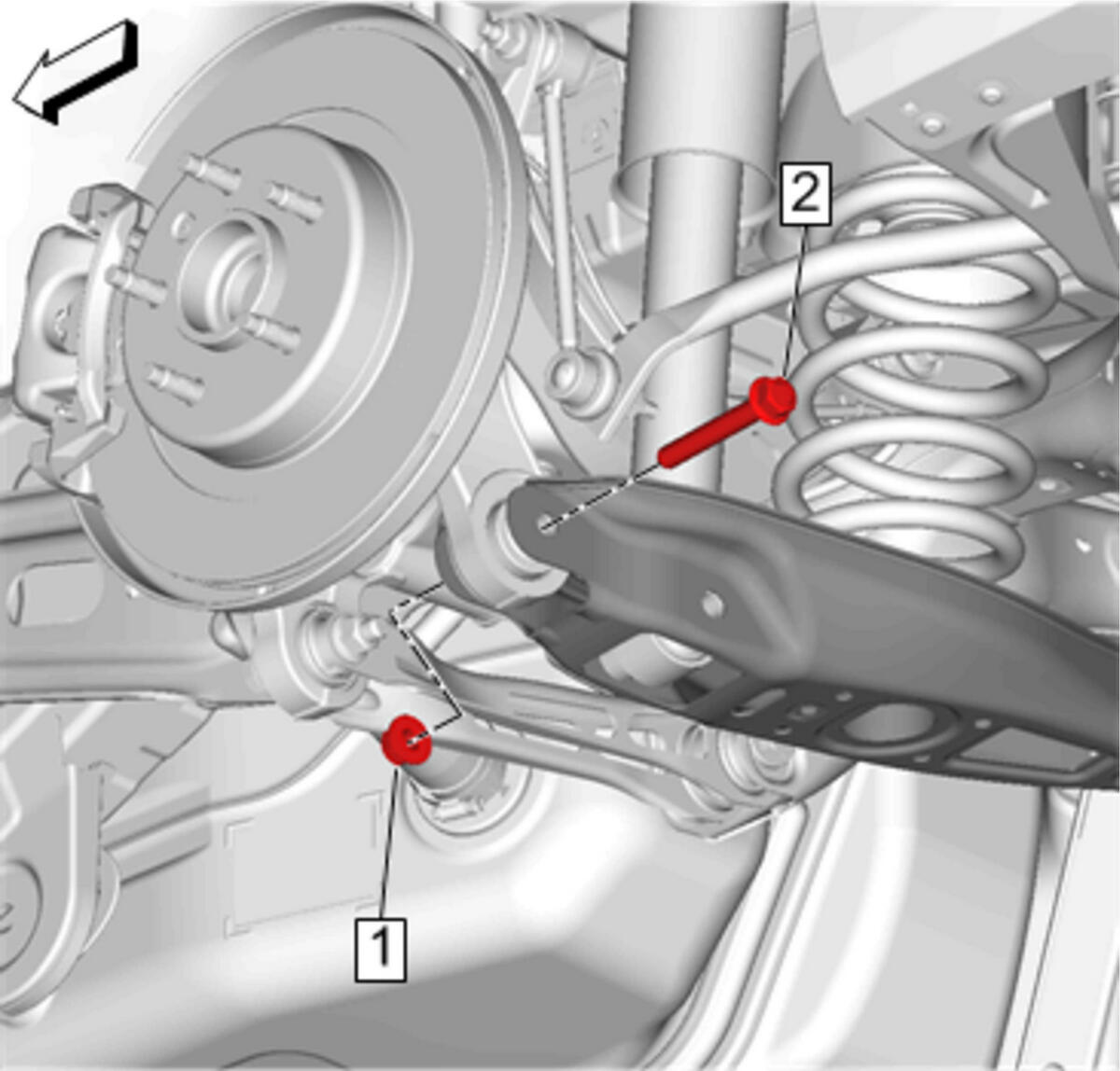

Rear Suspension Lower Control Arm (1) - Install
Courtesy of GENERAL MOTORS COMPANY

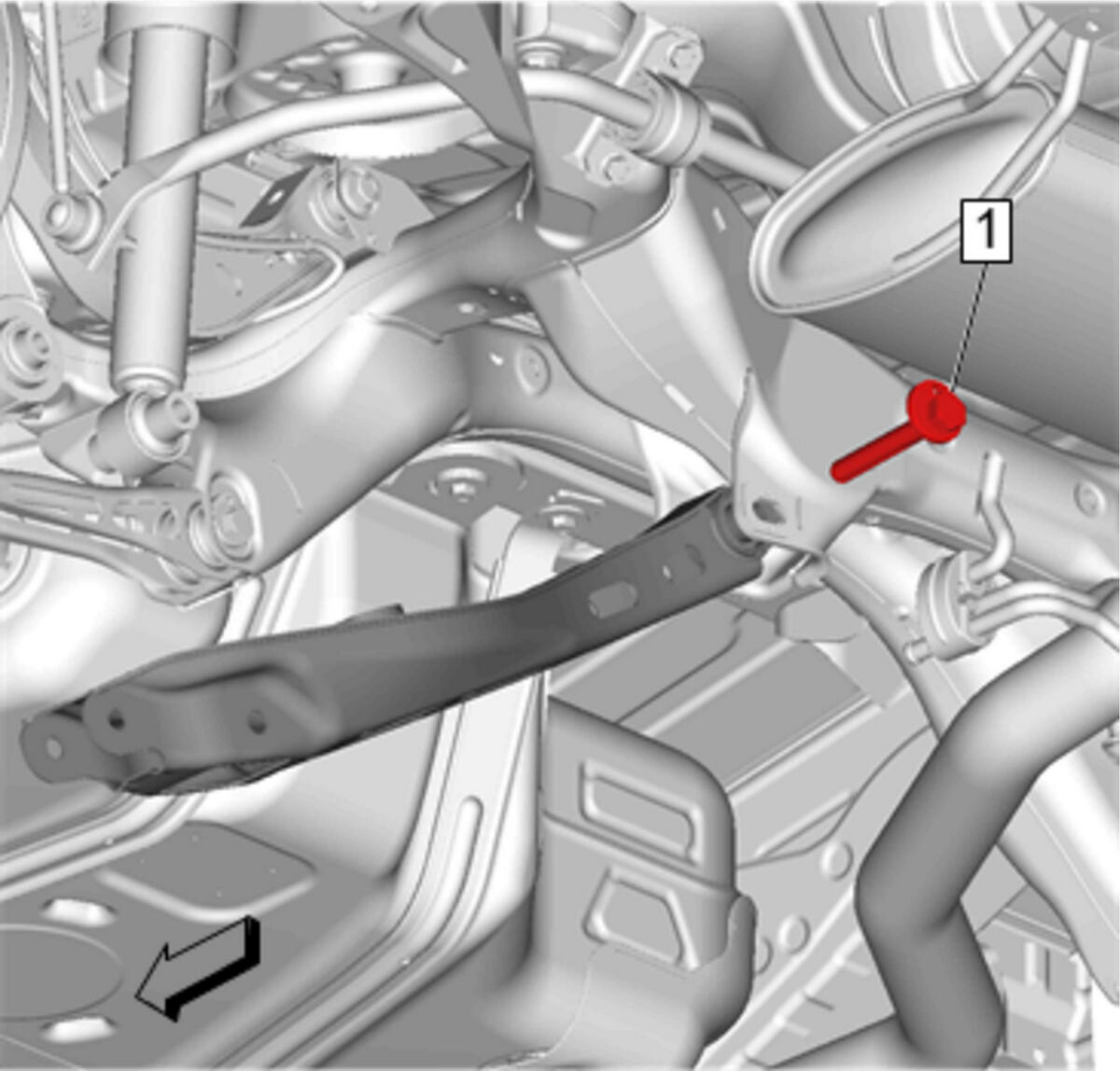

Rear Suspension Lower Control Arm Inner Bolt (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the proper cam bolt and washer installation and orientation.

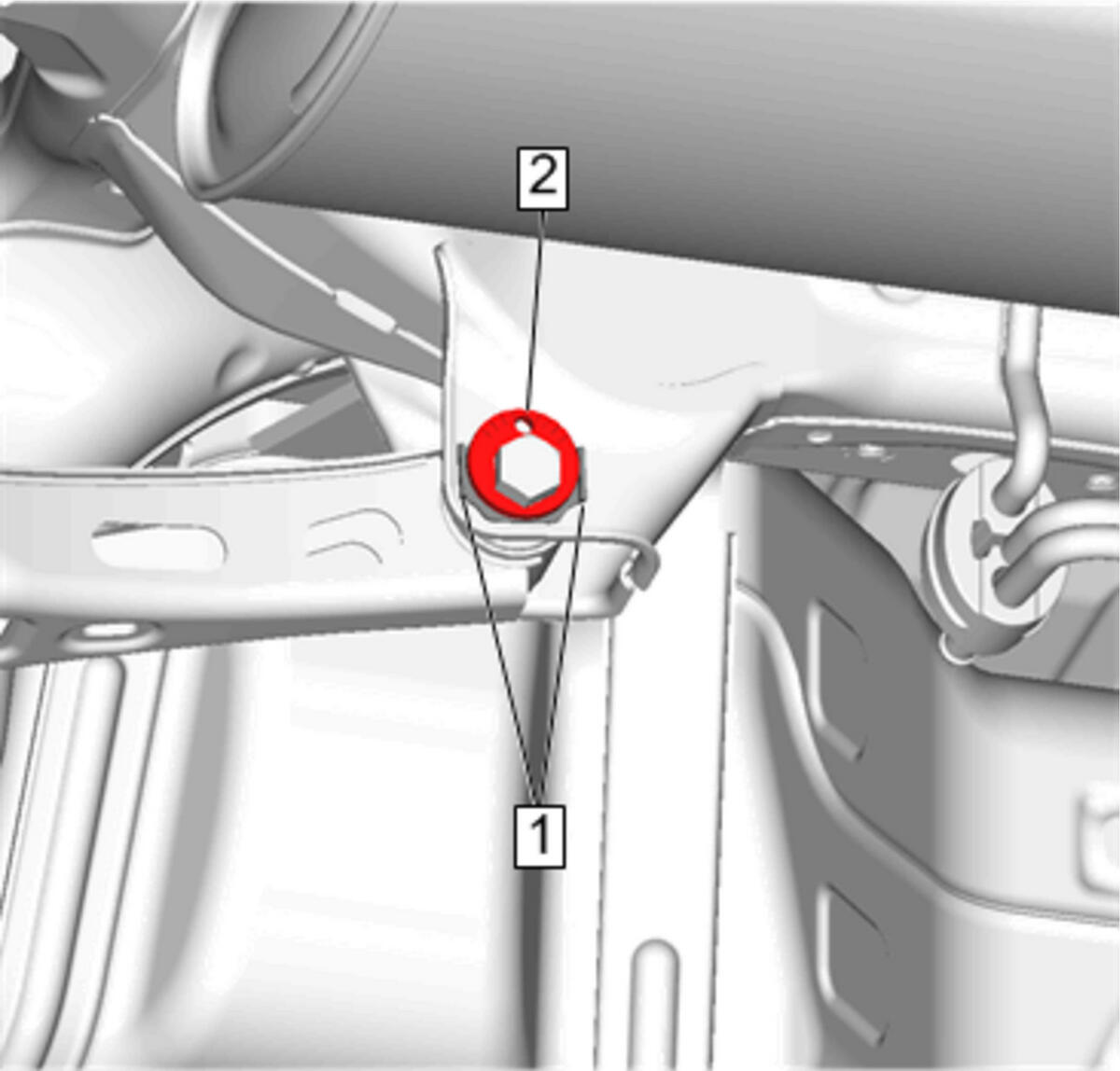

Install the rear suspension lower control arm inner bolt so the cam washer (2) does not overlap the raised structure on the cradle (1), and the cam scribe marks face 9 and 3 o'clock.
Courtesy of GENERAL MOTORS COMPANY

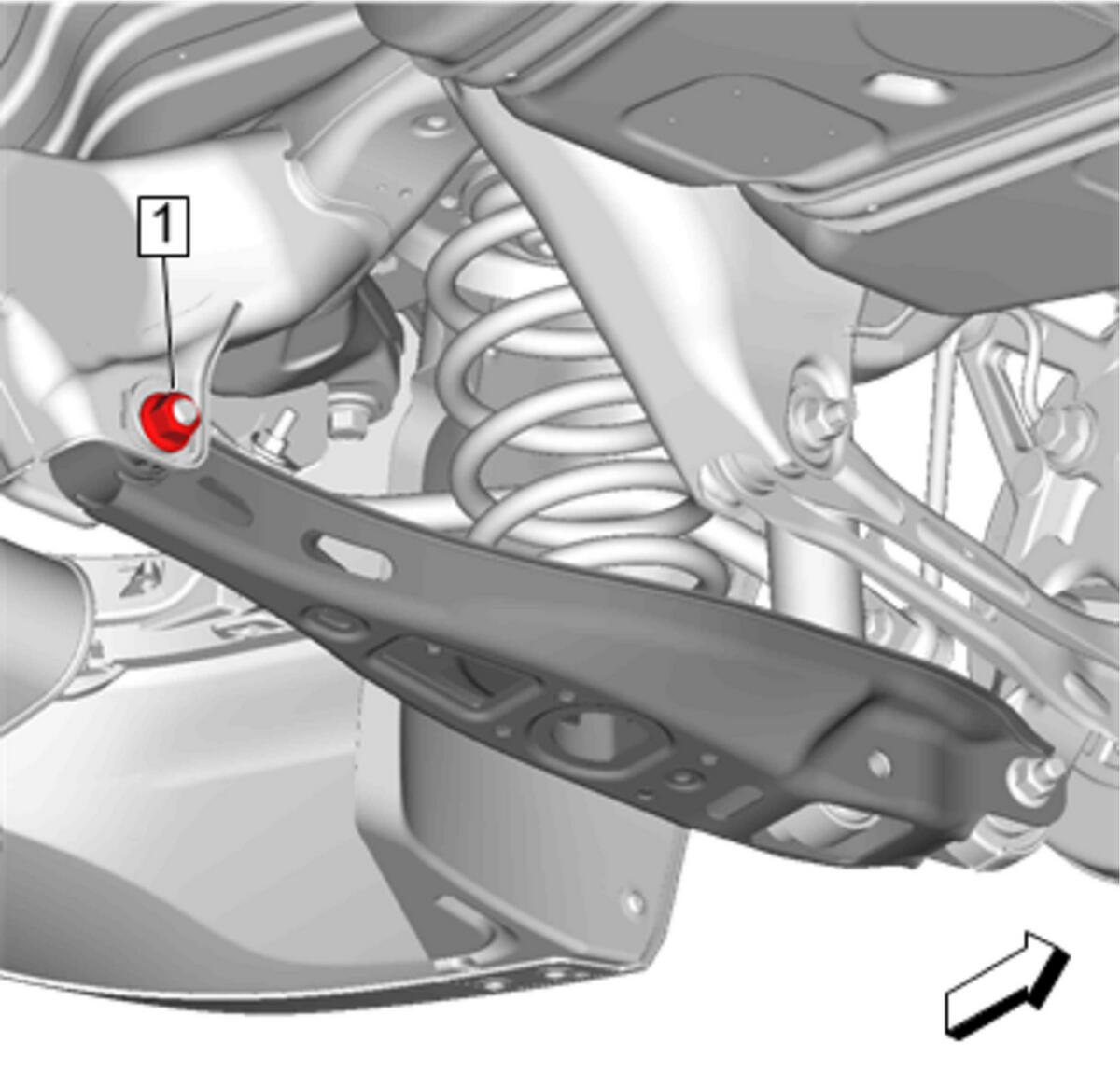

Rear Suspension Lower Control Arm Adjust Cam (2) - Install
Rear Suspension Lower Control Arm Inner Nut (1) - Install, but do NOT tighten
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the proper cam nut and washer installation and orientation.

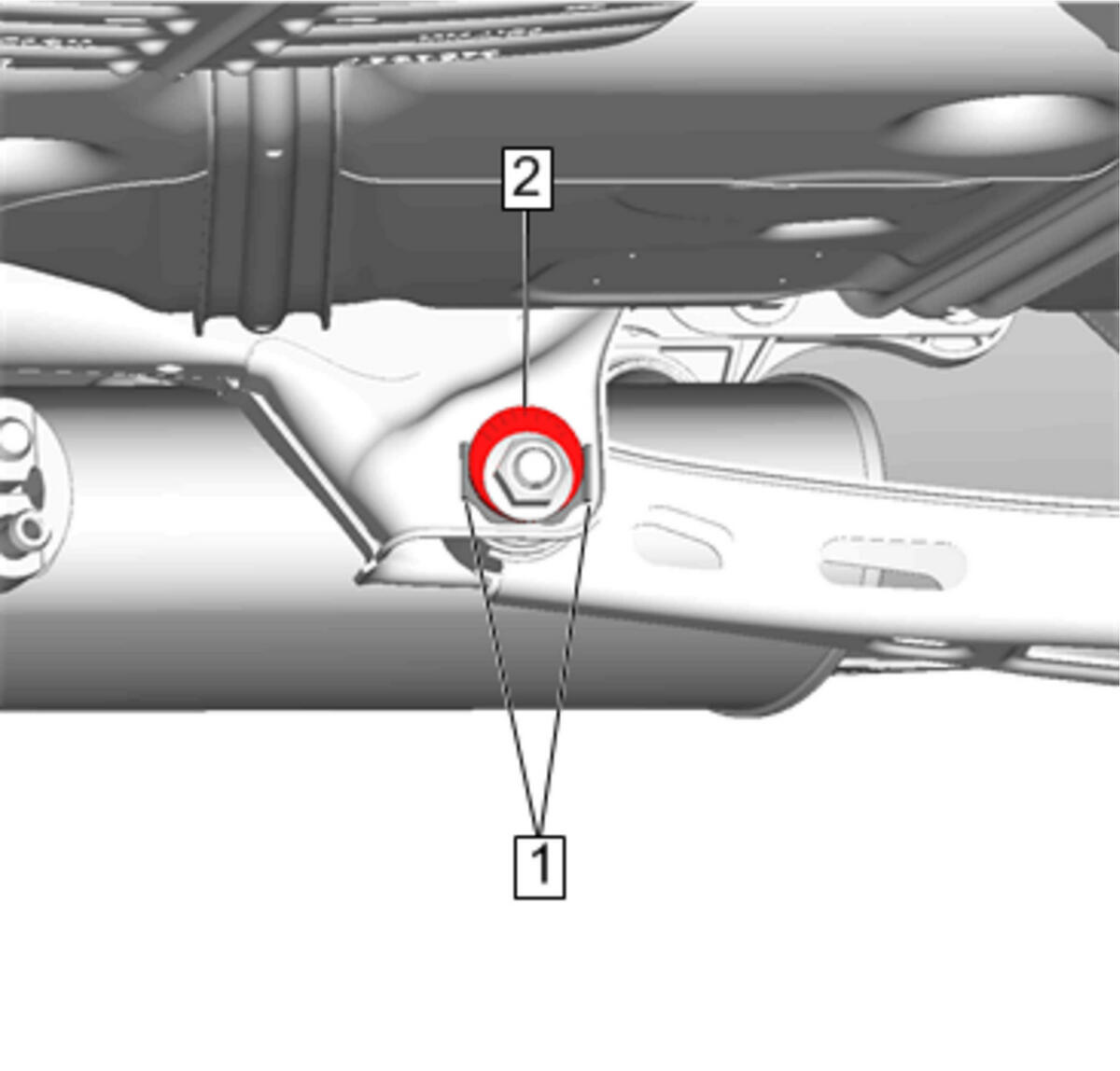

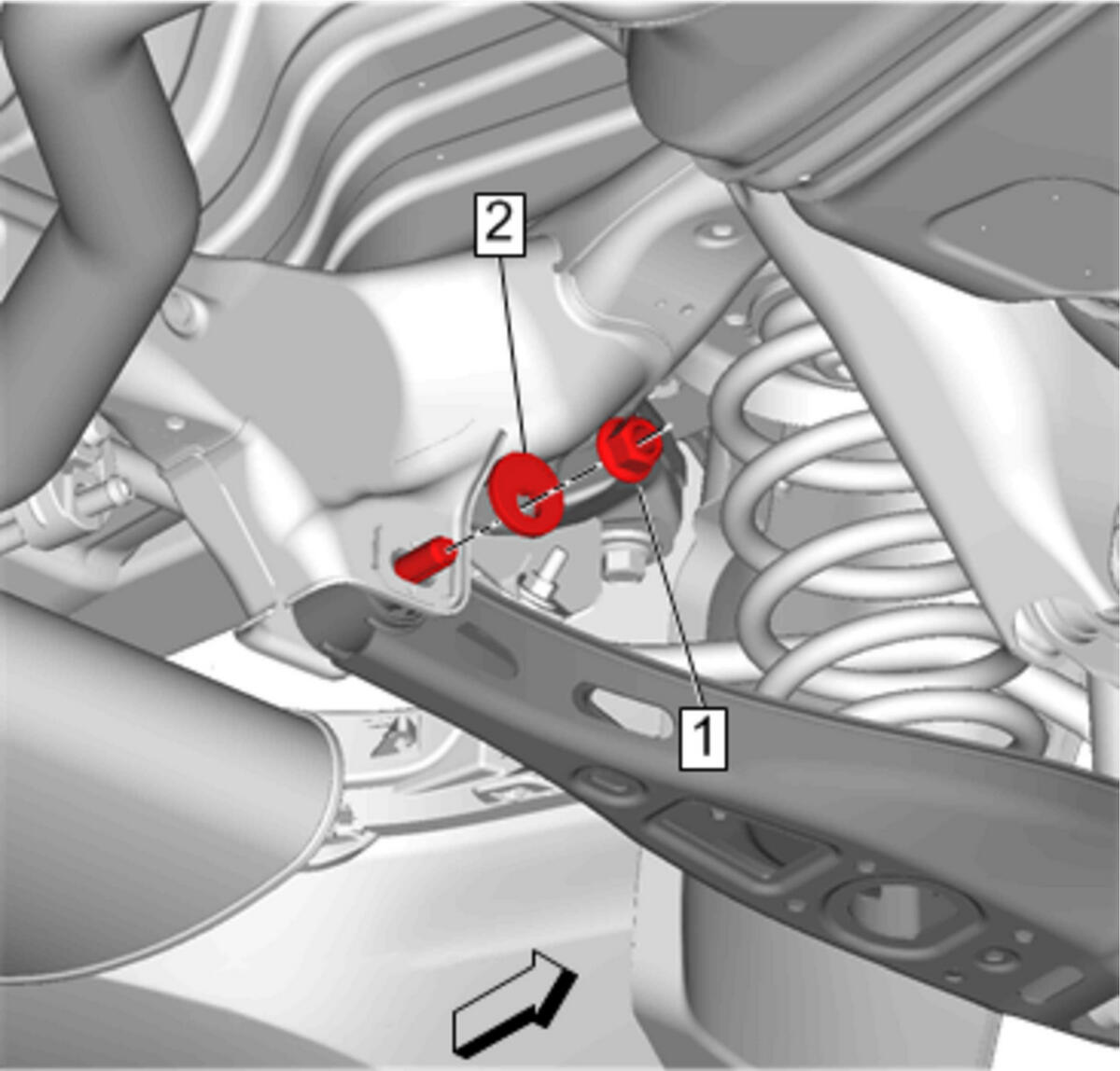

Install the rear suspension lower control arm inner nut so the cam washer (2) does not overlap the raised structure on the cradle (1), and the cam scribe marks face 9 and 3 o'clock.
Courtesy of GENERAL MOTORS COMPANY

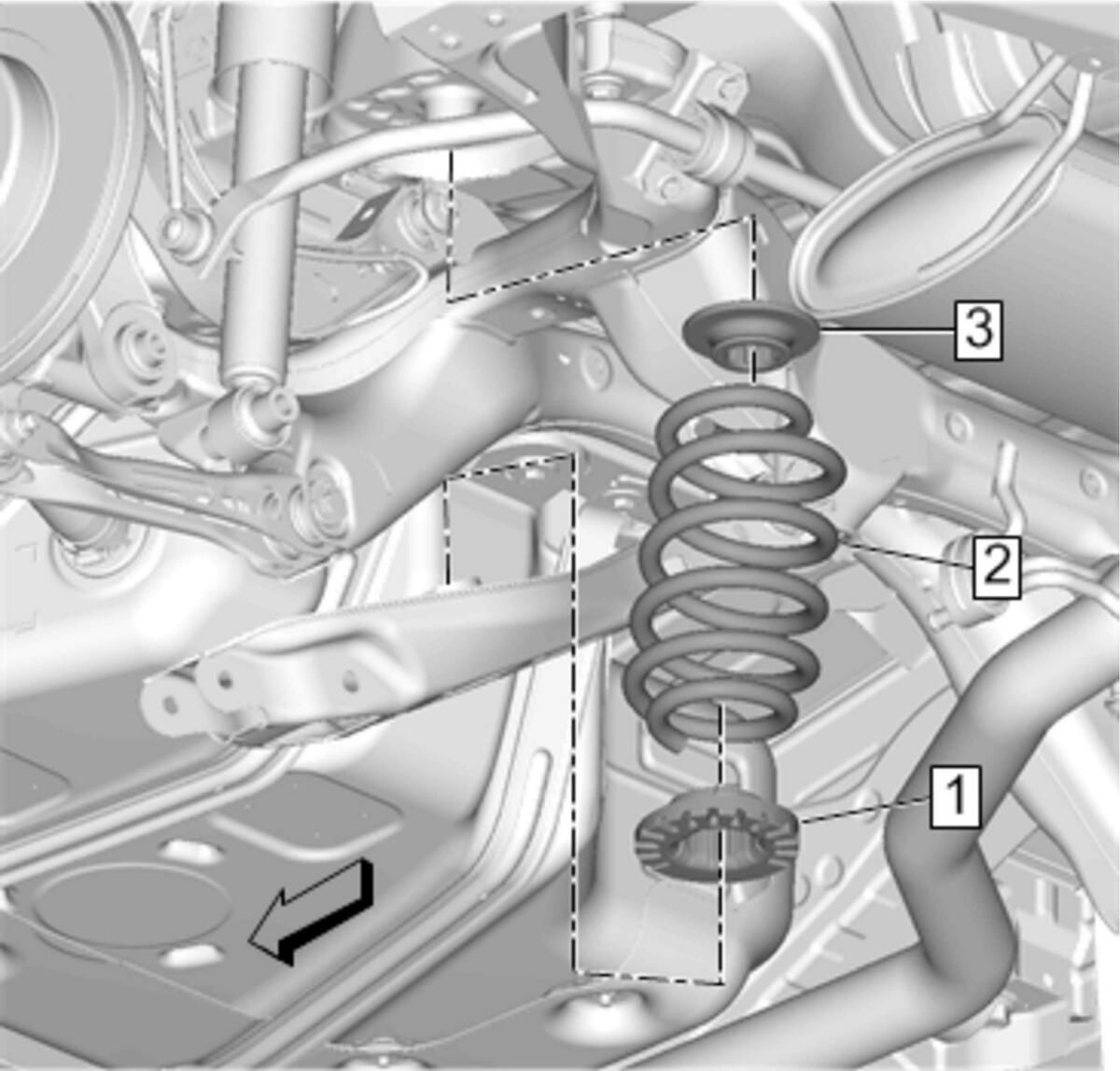

Rear Coil Spring Insulator (3) Install
Rear Coil Spring (2) - Install
Rear Coil Spring Lower Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

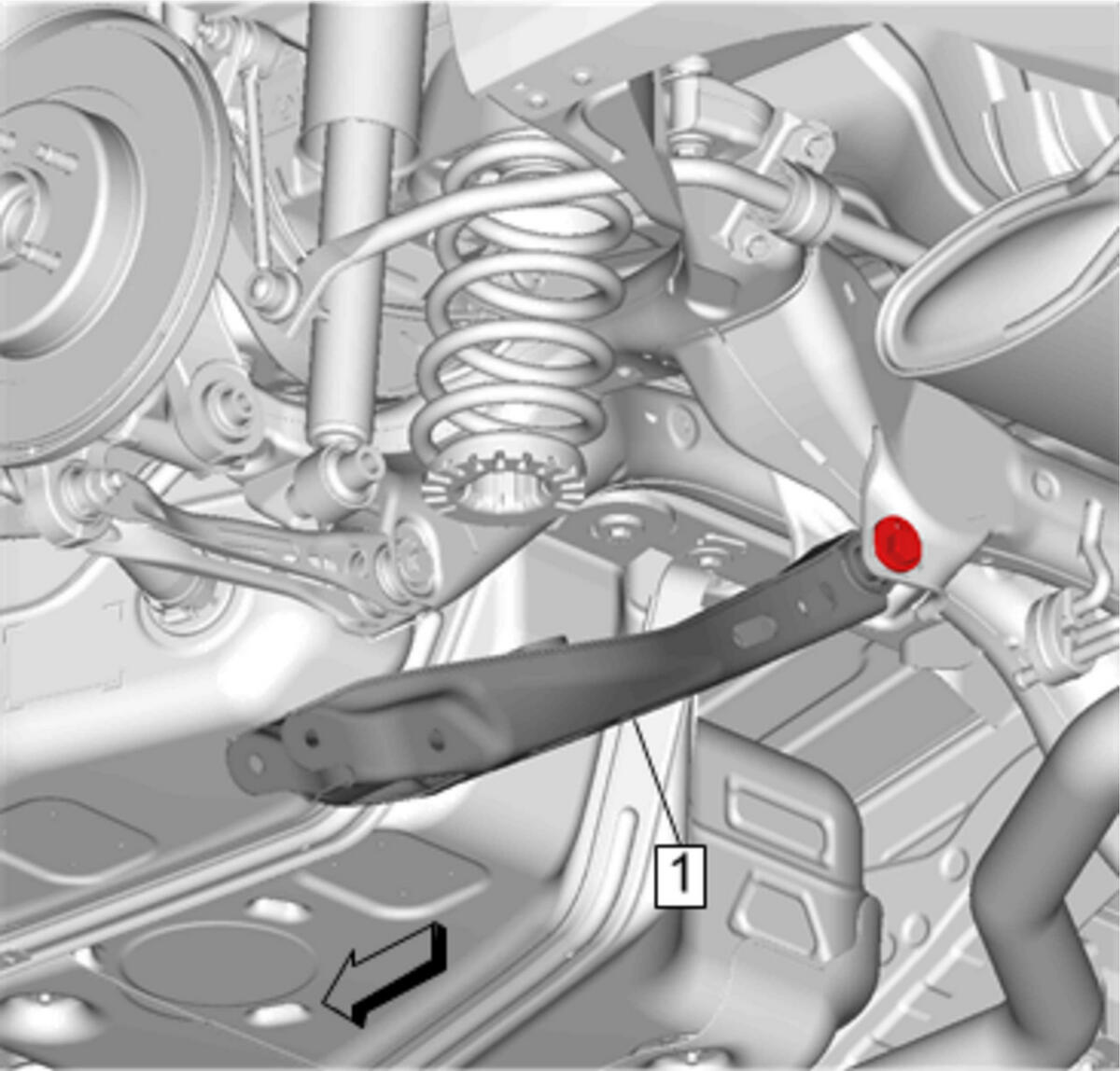

Raise the lower control arm (1) back into position.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

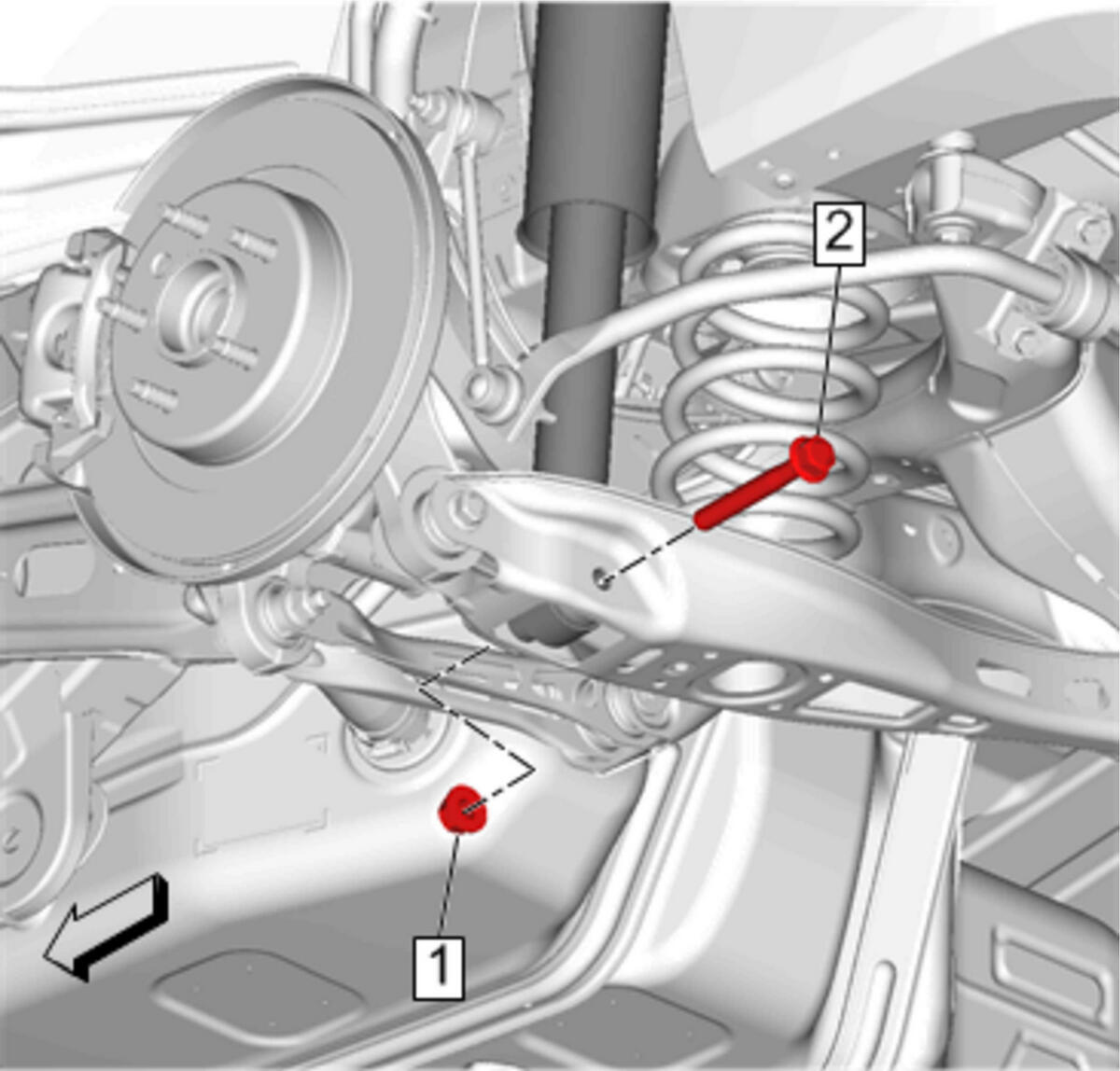

Rear Suspension Lower Control Arm Outer Bolt (2) - Install a NEW bolt.
Rear Suspension Lower Control Arm Outer Nut (1) - Install
Rear Suspension Lower Control Arm Outer Bolt (2) - Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: (90-105 degrees)
Courtesy of GENERAL MOTORS COMPANY

Rear Suspension Lower Control Arm Inner Nut (1) - Tighten 160 N.m (118 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Rear Shock Absorber Bolt (2) - Install a NEW bolt.
Rear Shock Absorber Nut (1) - Install - Shock Absorber Replacement
{ If equipped }Wiring Harness @ Rear Suspension Lower Control Arm - Connect
Remove the support from the rear suspension lower control arm.
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
Verify the rear camber specifications and adjust as necessary. Rear Camber Adjustment
