Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Heater and Air Conditioning User Interface Control (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

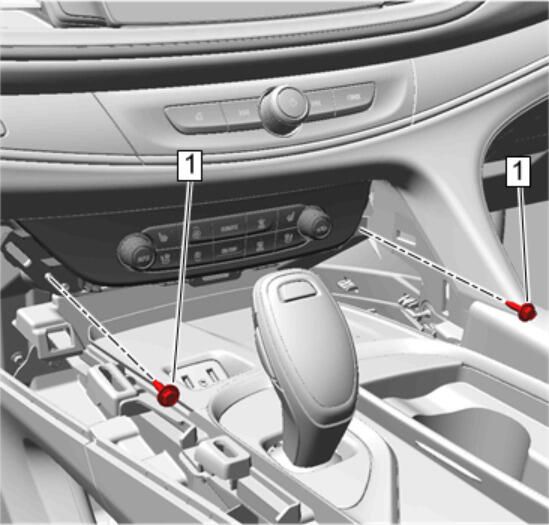

Heater and Air Conditioning User Interface Control Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
