Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

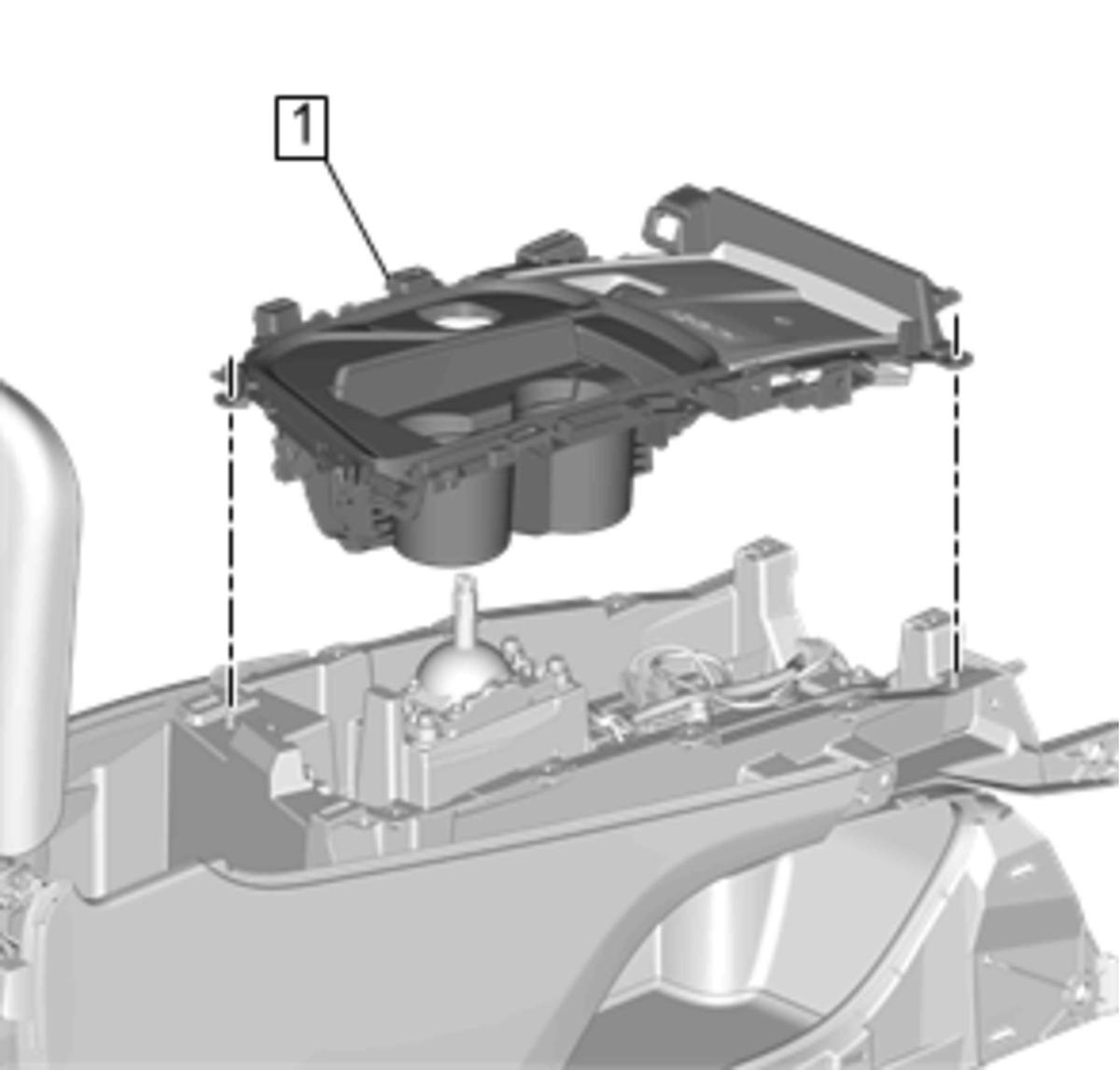

Front Floor Console Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

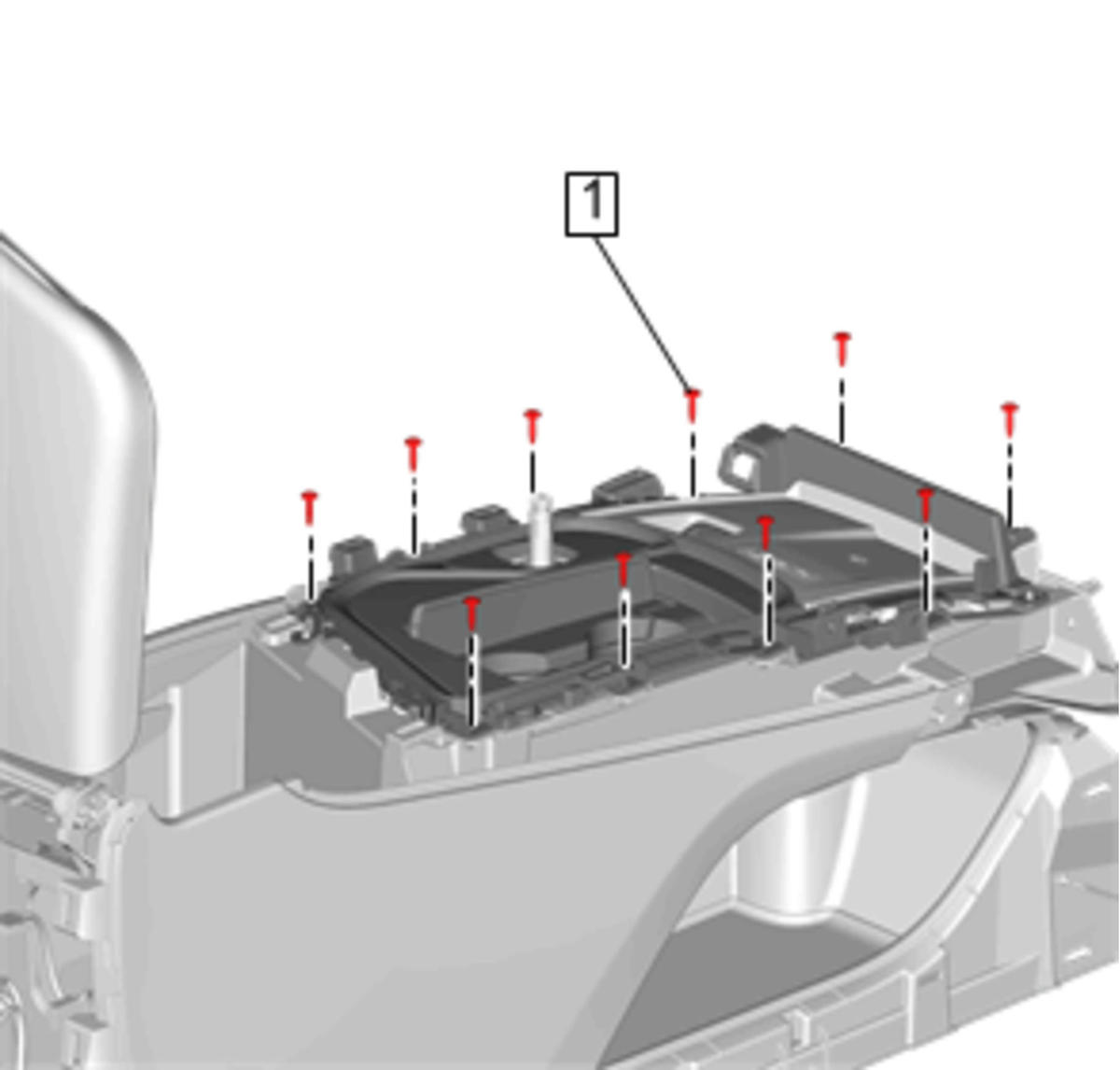

Front Floor Console Bolt (1) - Install and tighten [ 10x ] 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

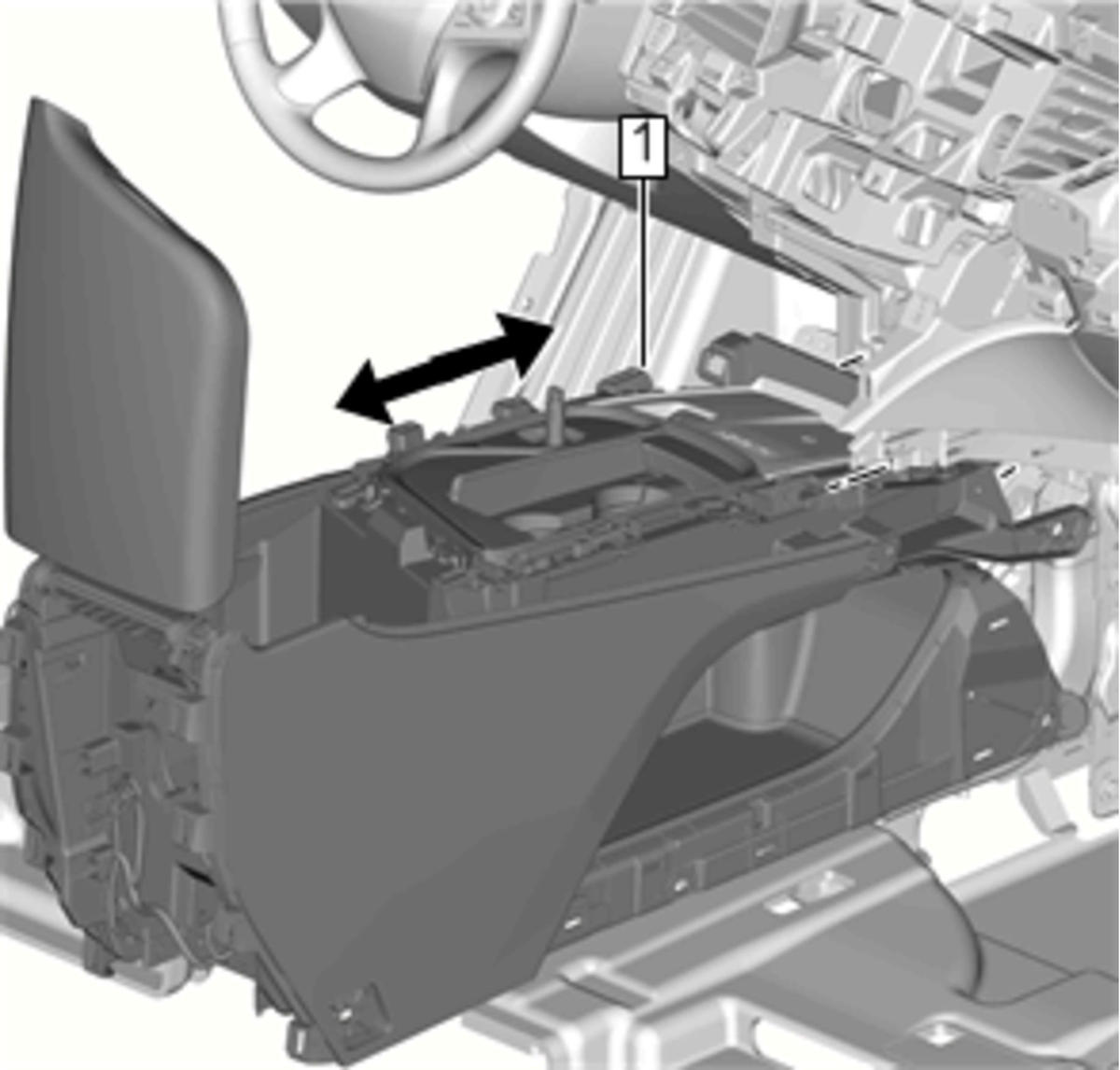

Slide the front floor console (1) back into position.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

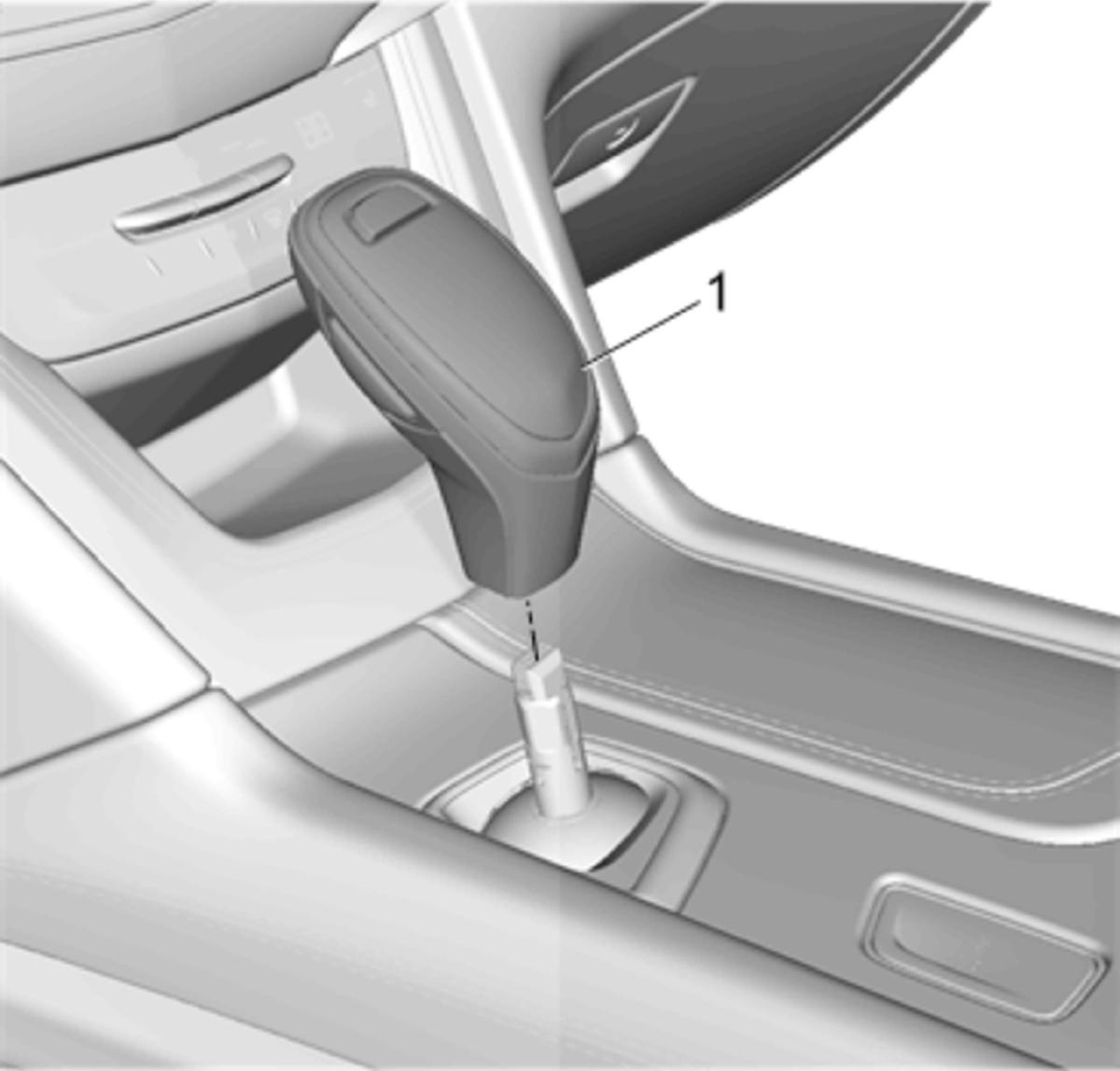

Transmission Control Lever Knob (1) - Install Transmission Control Lever Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment (1) - Install Front Floor Console Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (1) - Install Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side
Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side
