Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

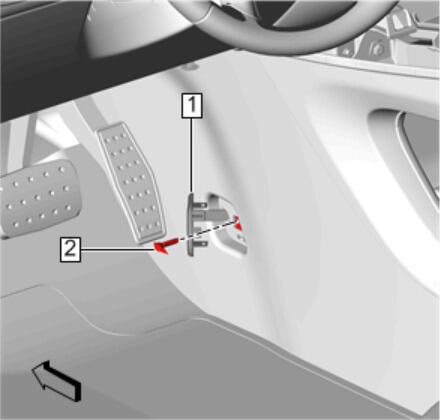

Front Floor Console Extension Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Floor Console Bolt (2) - Install and tighten 2.5 N.m (22 lb/in)
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Close
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
