Installation Procedure
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

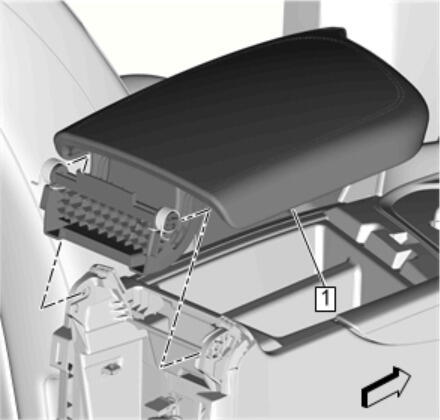

Install the front floor console armrest (1) to the front floor console.

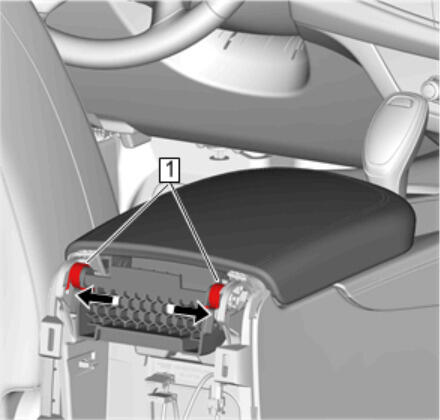

Attach the ends of the front floor console armrest hinge spring (1) to the front floor console.
Install the front floor console compartment door hinge pin (2) to the armrest.

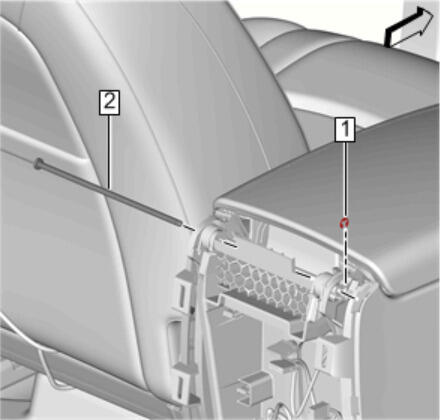

- Install the front floor console compartment door hinge pin retainer (1) to the hinge pin.
Front Floor Console Rear Trim Panel (1) - Install Front Floor Console Rear Trim Panel Replacement
