Removal Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system.

    Cooling System Draining and Filling (GE 47716) , or

    Cooling System Draining and Filling (Static Fill) .

  2. Engine Mount-Right Side - Remove - Engine Mount Replacement - Right Side
  3. Water Pump Pulley - Remove - Water Pump Pulley Replacement

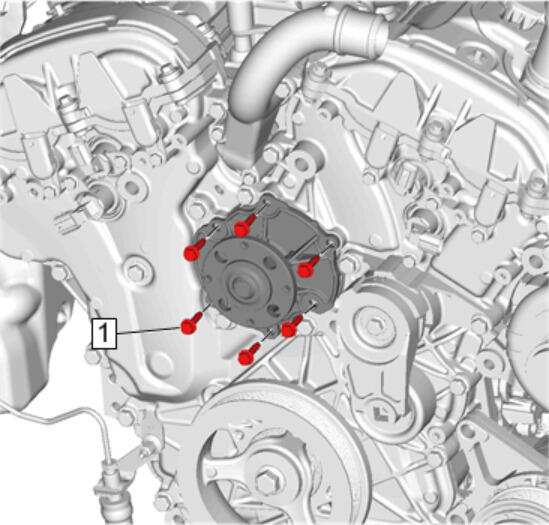

  4. GM4756857Courtesy of GENERAL MOTORS COMPANY

    Water Pump Bolt (1) - Remove [ 6x ]

  5. GM4756875Courtesy of GENERAL MOTORS COMPANY

    Water Pump (1) - Remove

  6. Water Pump Gasket (2) - Remove and DISCARD
  7. Carefully clean the water pump sealing surfaces.
