Liftgate Latch Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

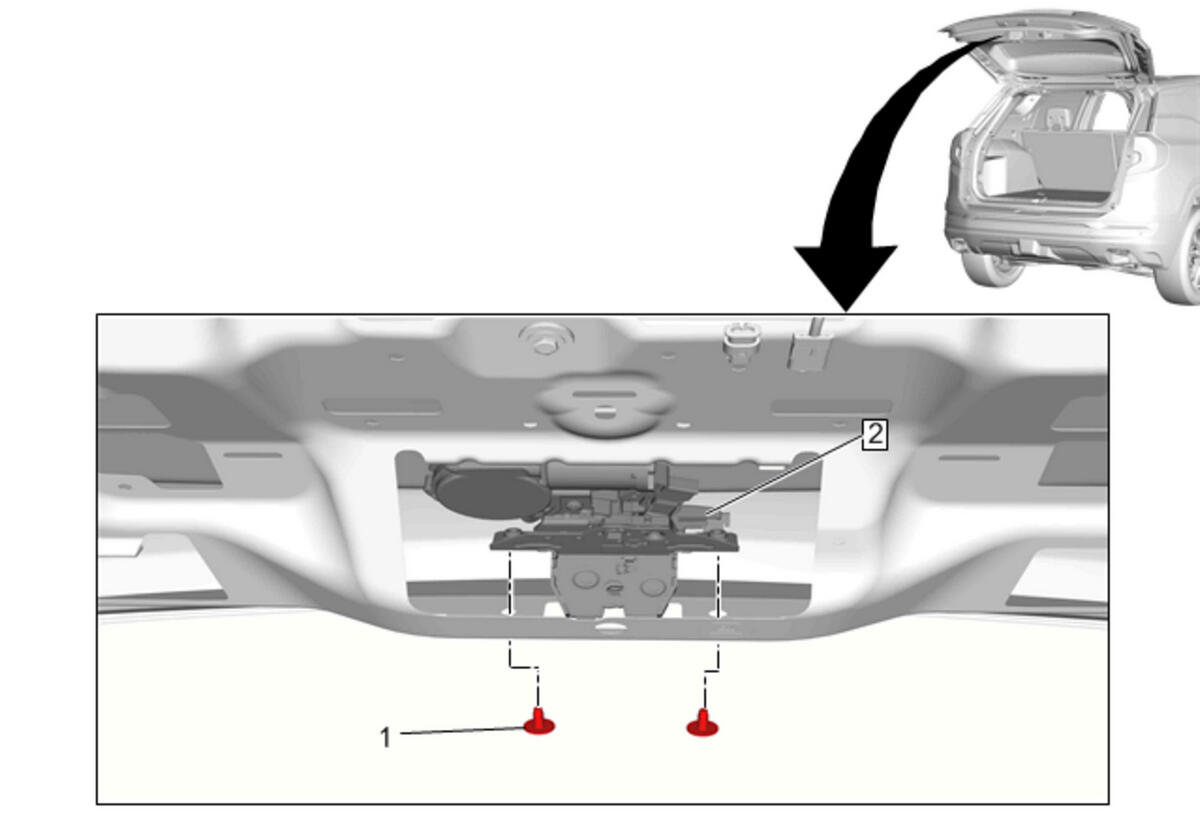

Callout	Component Name
Preliminary Procedure  Liftgate Lower Trim Finish Panel Replacement
1	Liftgate Latch Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Liftgate Latch Procedure  Disconnect the electrical connector.
