Installation Procedure
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

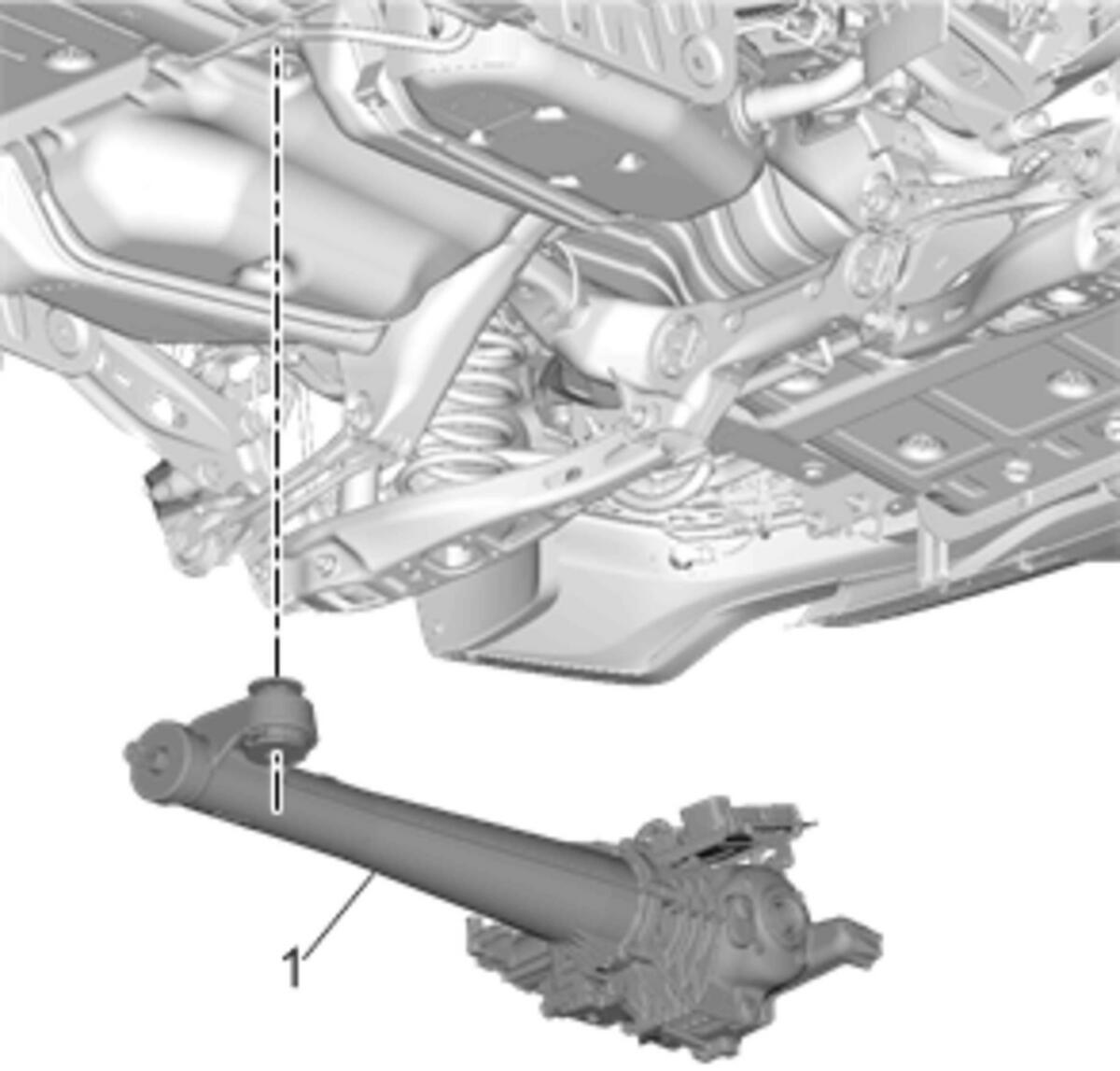

Position the rear differential (1) in the vehicle.

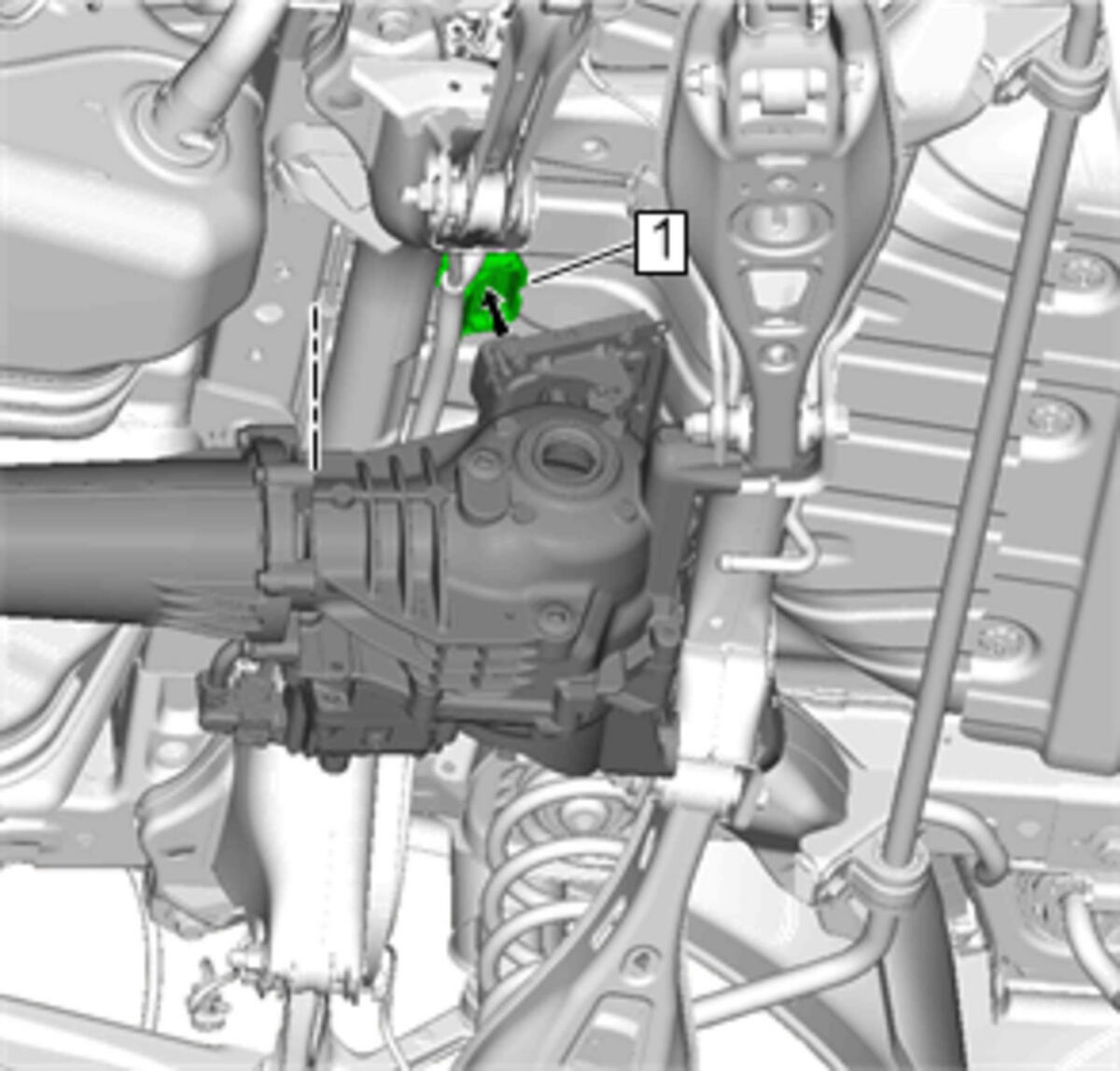

Connect the electrical connector (1) to the electronic clutch control module.
- CAUTION:
Refer to Fastener Caution .

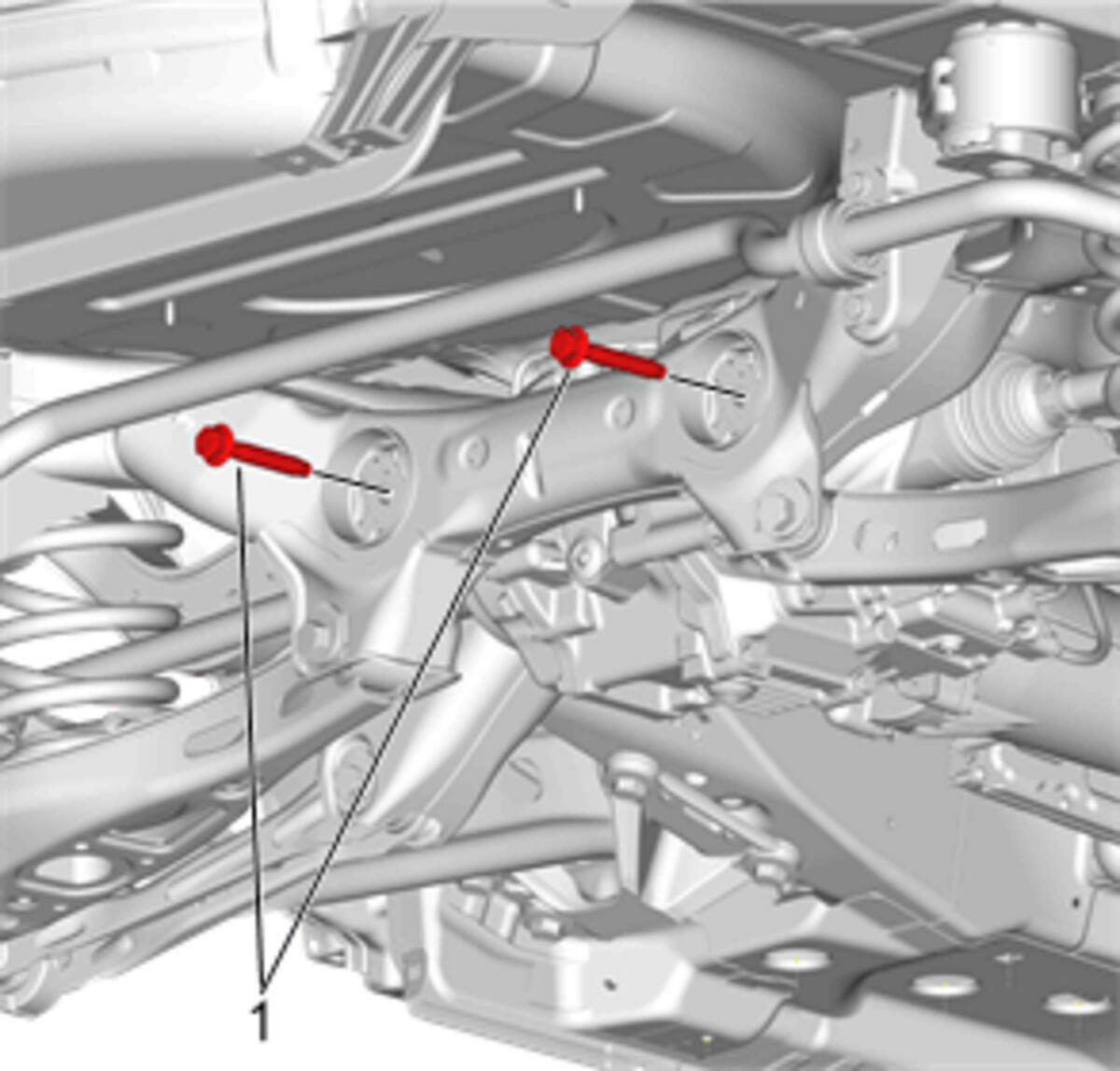

Install the rear differential mounting bolts (1).
Tighten
Tighten the bolts to 100 N.m (74 lb ft).

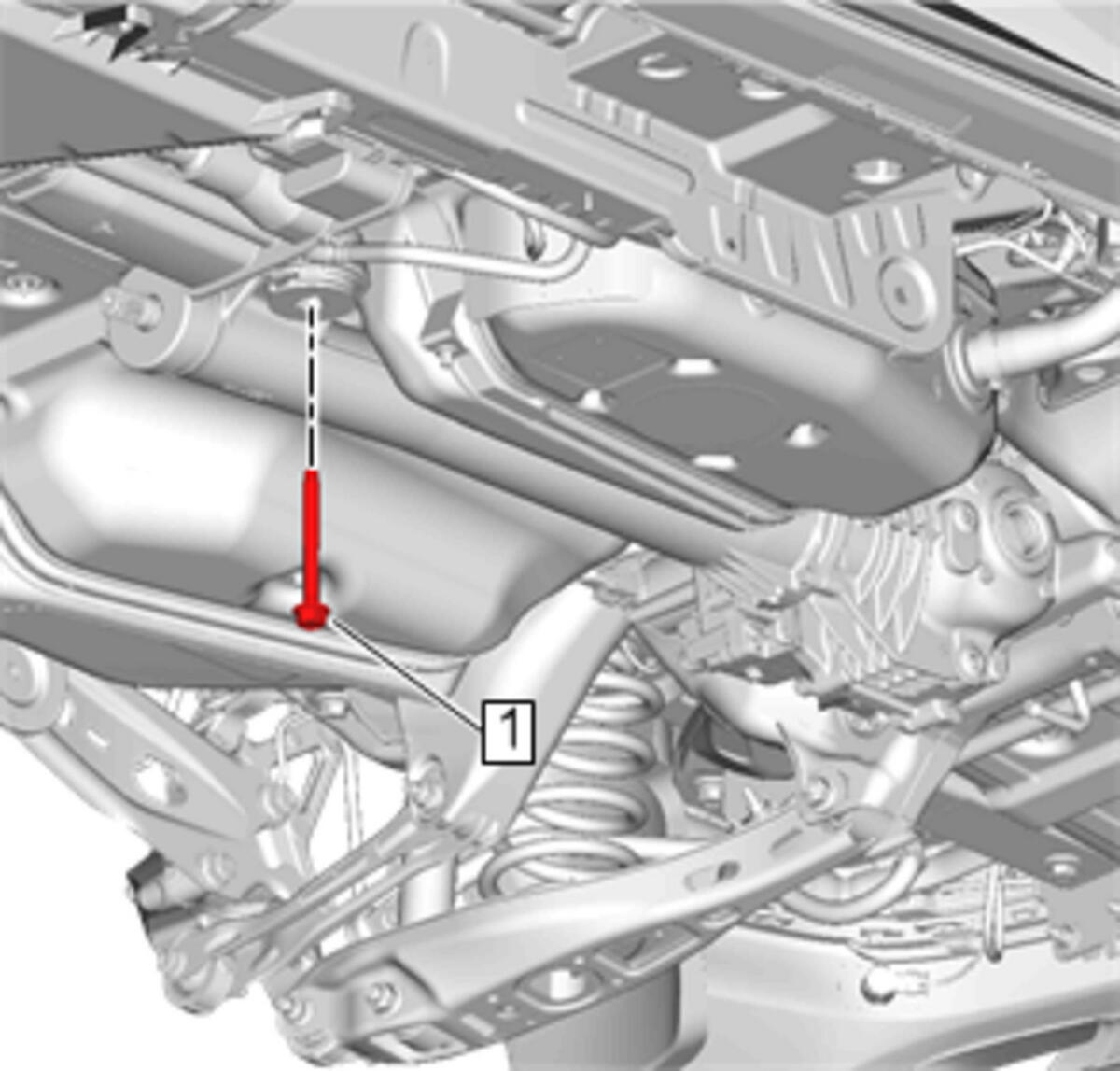

Install the torque tube bolt (1).
Tighten
Tighten the bolt to 160 N.m (118 lb ft).
- Install the propeller shaft assembly. Two-Piece Propeller Shaft Replacement
- Refill the rear differential assembly. Axle Lubricant Change
- Install the rear wheel drive shaft. Rear Wheel Drive Shaft Replacement - Left Side , Rear Wheel Drive Shaft Replacement - Right Side
- Install the tires and wheels. Tire and Wheel Removal and Installation
- Install the underbody rear air deflector. Underbody Rear Air Deflector Replacement (FWD)Underbody Rear Air Deflector Replacement (AWD)
- Remove the support and lower the vehicle.
- Program the K47 Rear Differential Clutch Control Module. Control Module References
