B23B Camshaft Position Sensor - Bank 1 Intake
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

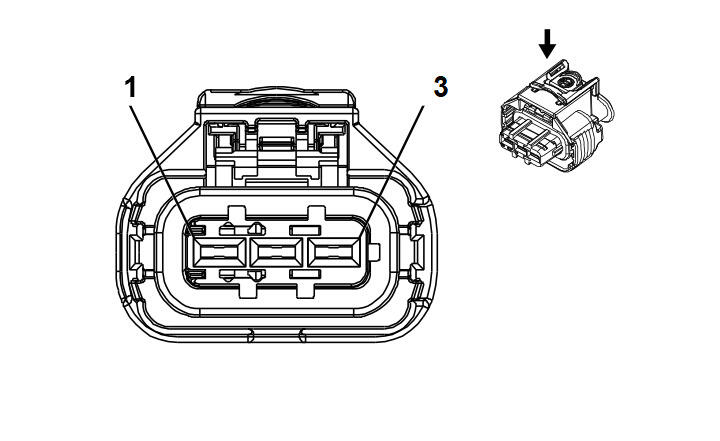

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13343436
- Service Connector: 13384372
- Description: 3-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK / GN |
5301 |
Intake Camshaft Position Sensor Low Reference 1 |
I |
LFY |
| 2 |
0.5 |
YE / VT |
5275 |
Intake Camshaft Position Sensor 1 |
I |
LFY |
| 3 |
0.5 |
GY / BU |
5300 |
Intake Camshaft Position Sensor 1 Voltage Reference |
I |
LFY |
