Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

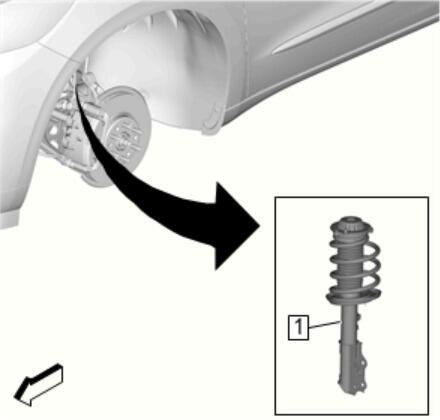

Position the front suspension strut assembly (1) on the vehicle.
Courtesy of GENERAL MOTORS COMPANY

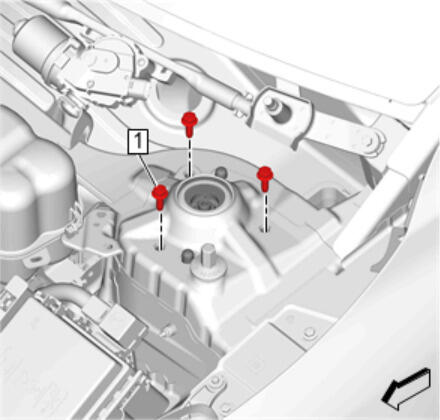

Front Suspension Strut Bolt (1) - Install, but do NOT tighten [ 3x ]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

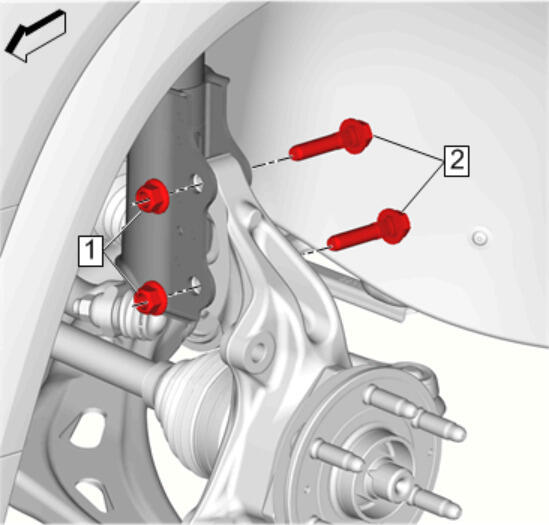

Steering Knuckle Bolt (2) - Install NEW [ 2x ]

CAUTION:

Refer to Fastener Caution .

Steering Knuckle Nut (1) - Install and tighten [ 2x ]
Tighten
1. First Pass: 100 N.m (74 lb-ft)
2. Final Pass: (45 - 60 degrees)
Courtesy of GENERAL MOTORS COMPANY

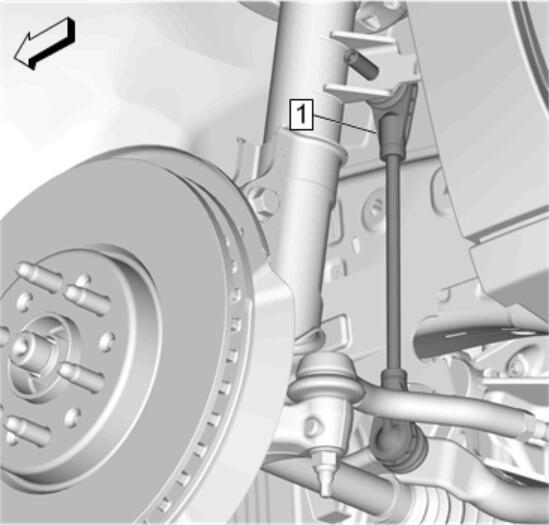

Front Stabilizer Shaft Link (1) @ Strut Assembly - Install - Stabilizer Shaft Link Replacement
Courtesy of GENERAL MOTORS COMPANY

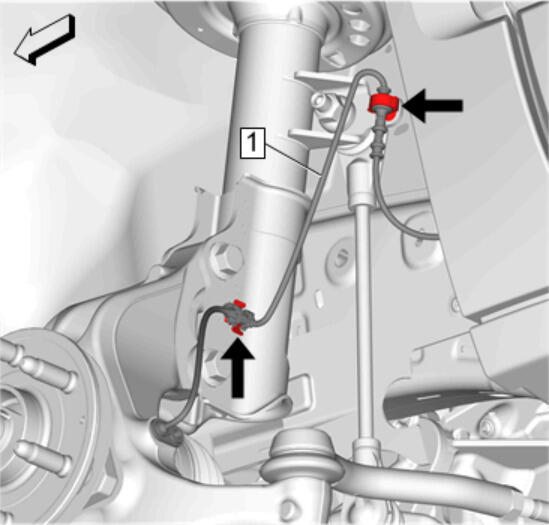

Front Wheel Speed Sensor Wiring Harness (1) @ Strut Assembly - Install
- Front Wheel Speed Sensor Replacement - Left Side
- Front Wheel Speed Sensor Replacement - Right Side
{ If equipped } Electrical Connector @ Strut Assembly - Connect
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Lower the vehicle completely.
Courtesy of GENERAL MOTORS COMPANY

Front Suspension Strut Bolt (1) - Tighten [ 3x ] 22 N.m (16 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

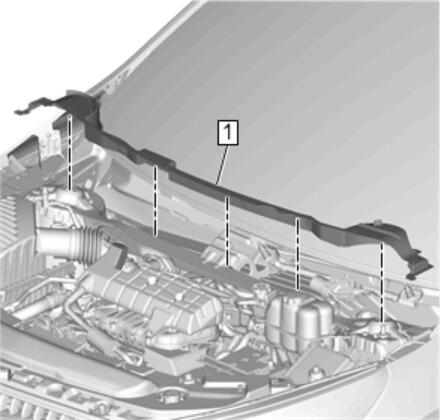

Dash Panel Upper Extension Panel Extension (1) - Install - Dash Upper Extension Panel Extension Replacement
Measure and adjust the wheel alignment. Wheel Alignment Measurement
