Installation Procedure
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

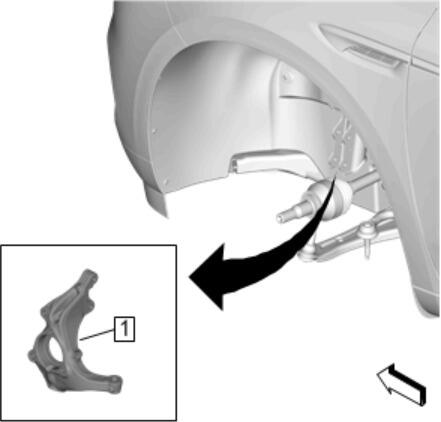

Position the steering knuckle (1) on the vehicle.

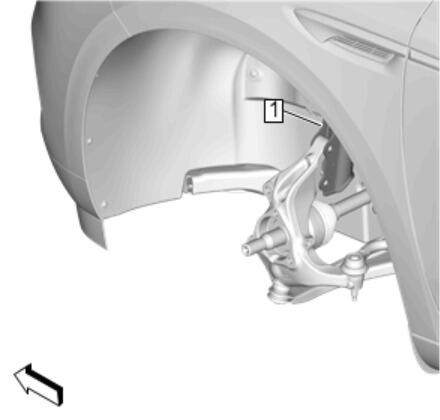

Strut Assembly (1) @ Steering Knuckle - Install - Strut Assembly Removal and Installation

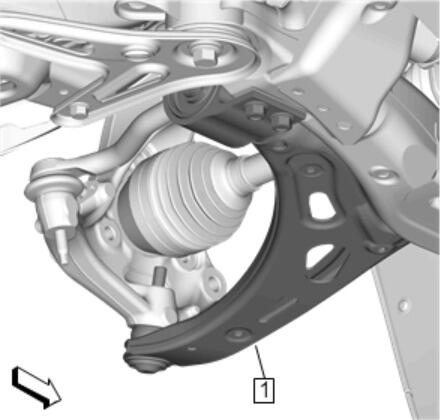

Front Lower Control Arm (1) @ Steering Knuckle - Install - Lower Control Arm Replacement

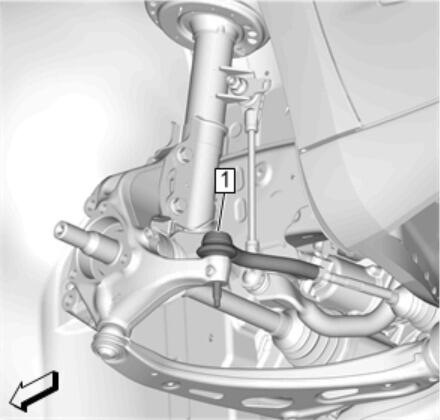

Steering Linkage Outer Tie Rod (1) @ Steering Knuckle - Install - Steering Linkage Outer Tie Rod Replacement

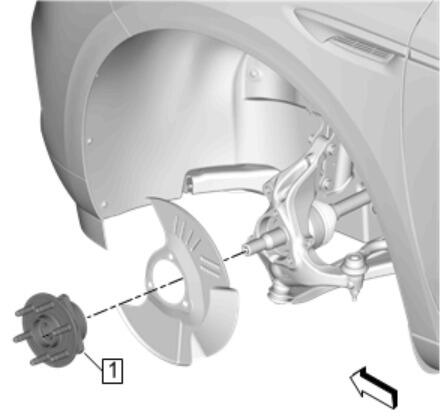

Front Wheel Bearing and Hub Assembly (1) - Install - Front Wheel Bearing and Hub Replacement
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
