Installation Procedure
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

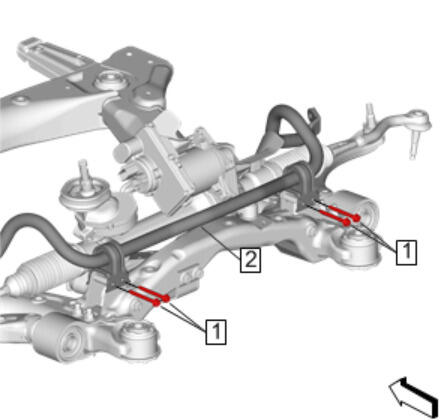

Position the front stabilizer shaft (2) on the drivetrain and front suspension cradle.
- Front Stabilizer Shaft Insulator Clamp Bolt (1) - Install NEW and tighten [ 4x ]
- First Pass: 30 N.m (22 lb-ft)
- Final Pass: 90 - 105 degrees

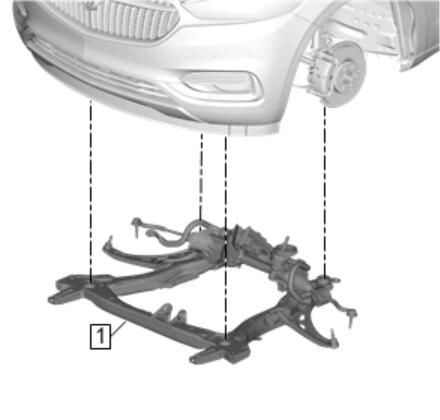

Drivetrain and Front Suspension Cradle (1) - Install - Drivetrain and Front Suspension Cradle Removal and Installation (All Wheel Drive) , or Drivetrain and Front Suspension Cradle Removal and Installation (Front Wheel Drive)
- Remove the support and lower the vehicle.
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
CAUTION:
Refer to Fastener Caution .
