Installation Procedure
- Position the transmission fluid cooler pipe assembly in the vehicle for installation.

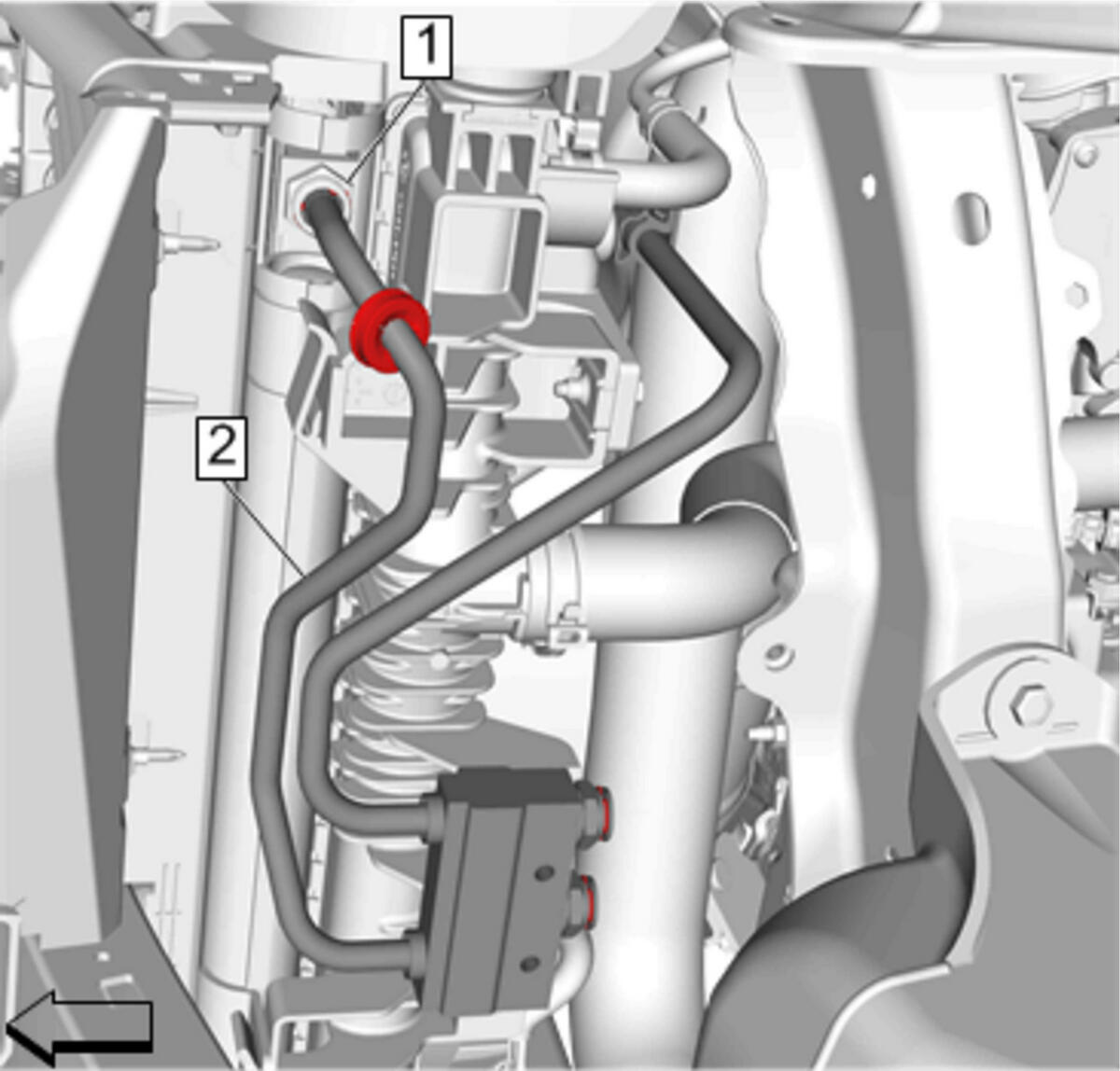

Transmission Fluid Cooler Pipe (2) @ Transmission Fluid Cooler Pipe Connector (1) - Install - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

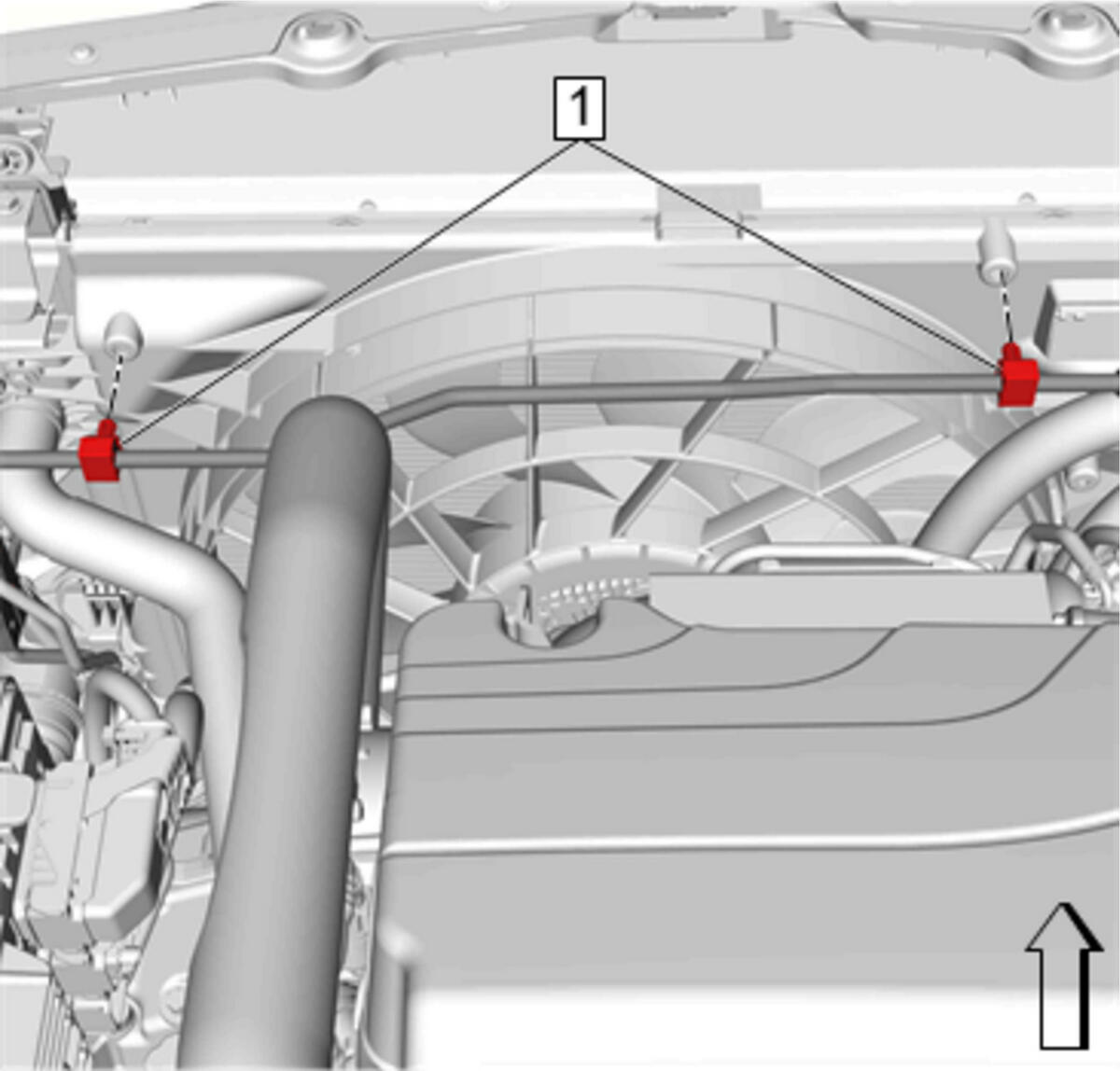

Transmission Fluid Cooler Pipe Clip (1) @ Engine Coolant Fan Shroud - Install

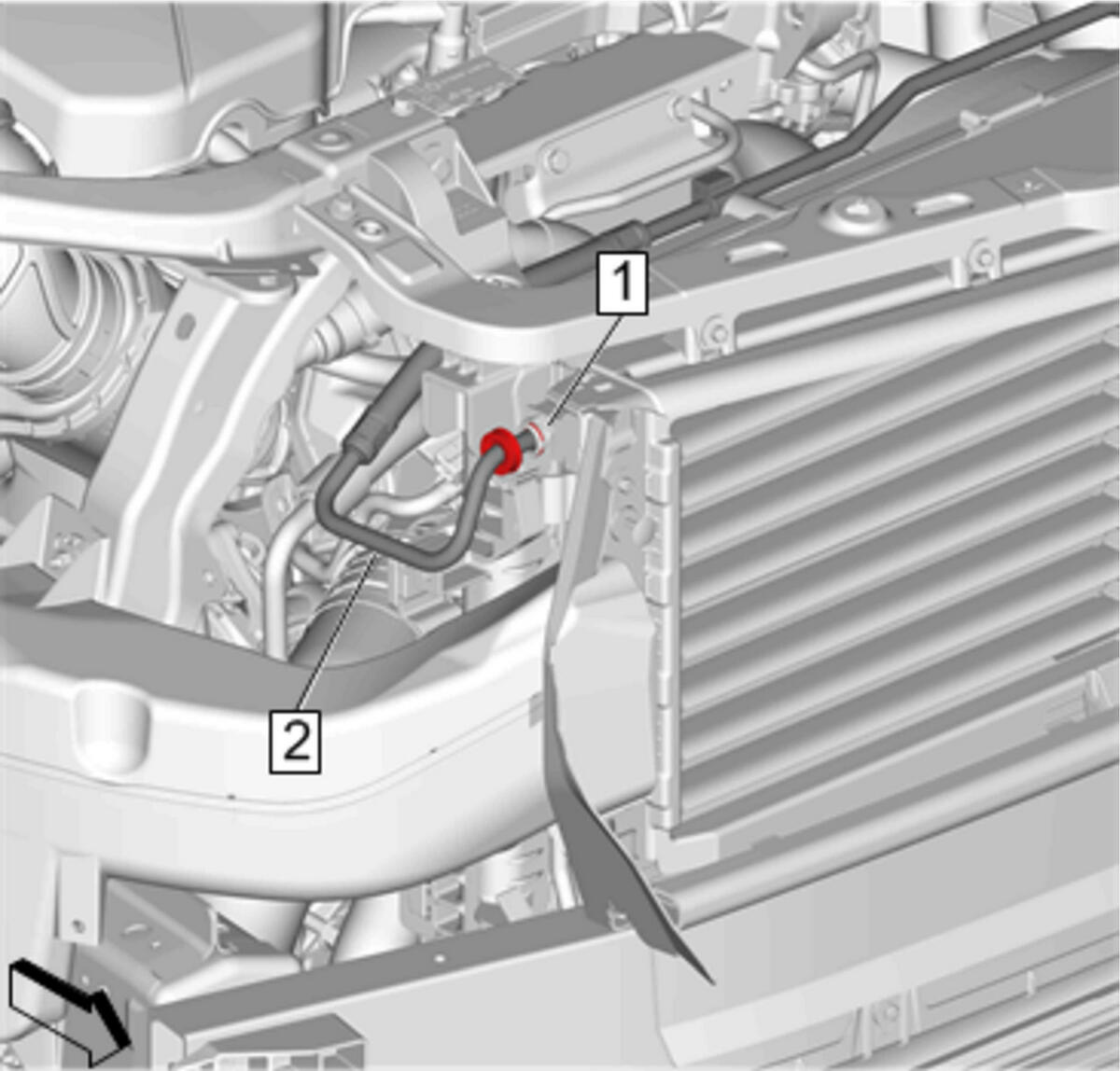

Transmission Fluid Cooler Pipe (2) @ Transmission Fluid Cooler Pipe Connector (1) - Install - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

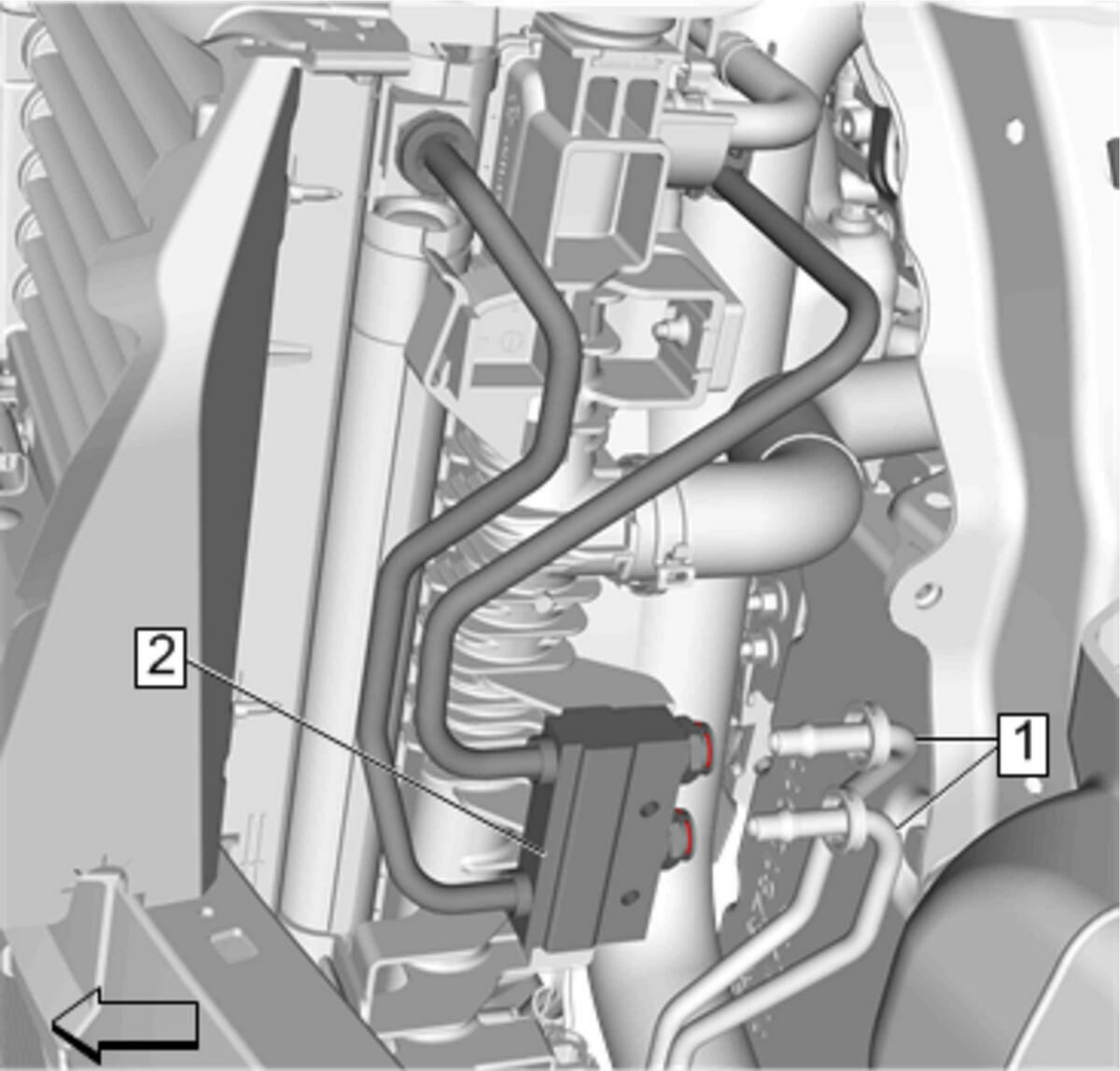

Transmission Fluid Cooler Inlet and Outlet Pipe (1) @ Transmission Fluid Cooler Pipe (2) - Install - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- CAUTION:
Refer to Fastener Caution .

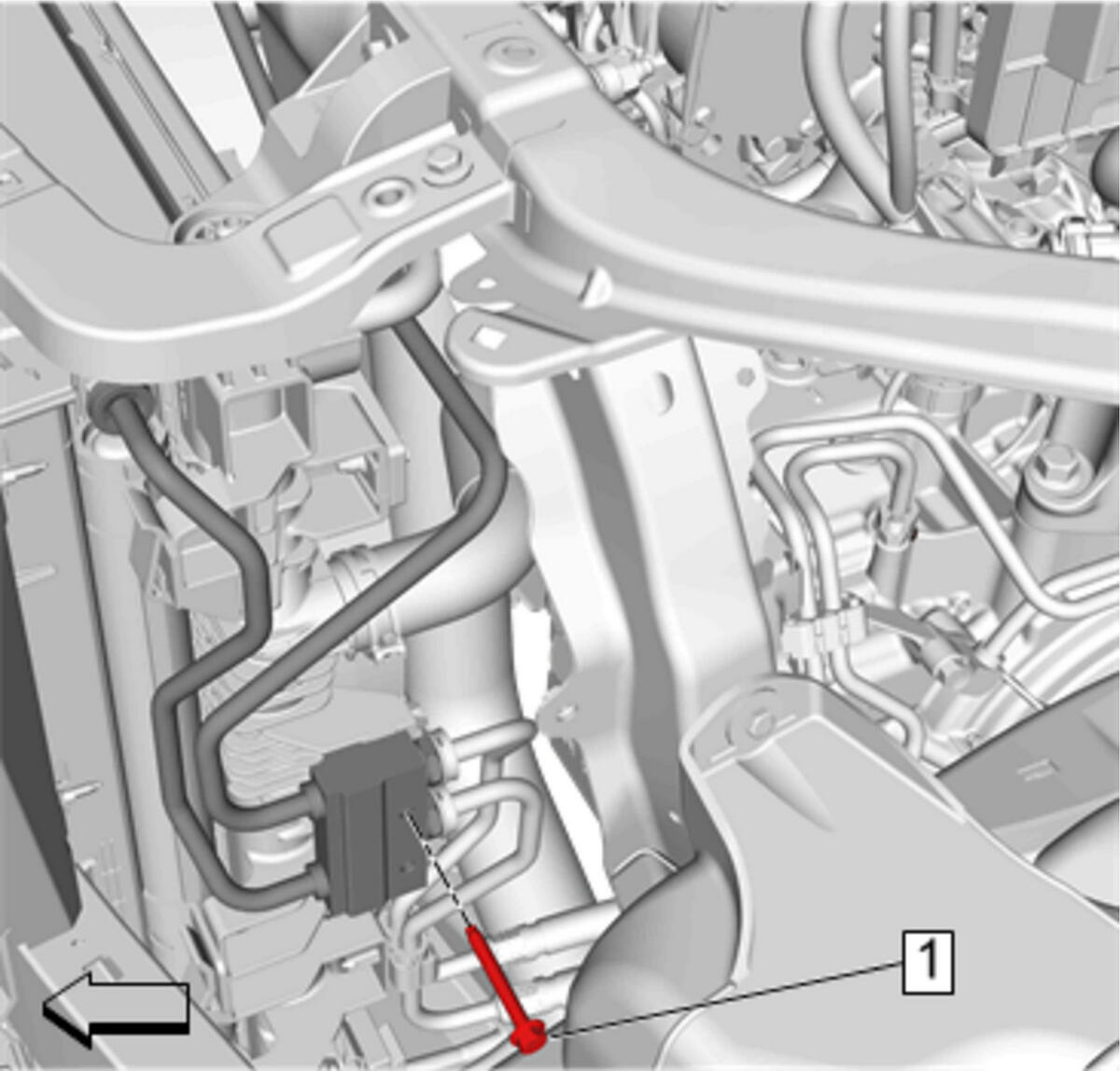

Transmission Fluid Cooler Pipe Bolt (1) - Install and tighten 9 N.m (80 lb in)
- Dual Horn - Install Dual Horn Replacement
- Remove the drain pan.
- Install both headlamps. Front Headlamp Replacement (Chevrolet) , or Front Headlamp Replacement (GMC)
- Fill and inspect the transmission fluid level. Transmission Fluid Level and Condition Check
- Inspect for transmission fluid leaks.
