Power Transfer Unit Propeller Shaft Seal, O-ring and Retainer Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

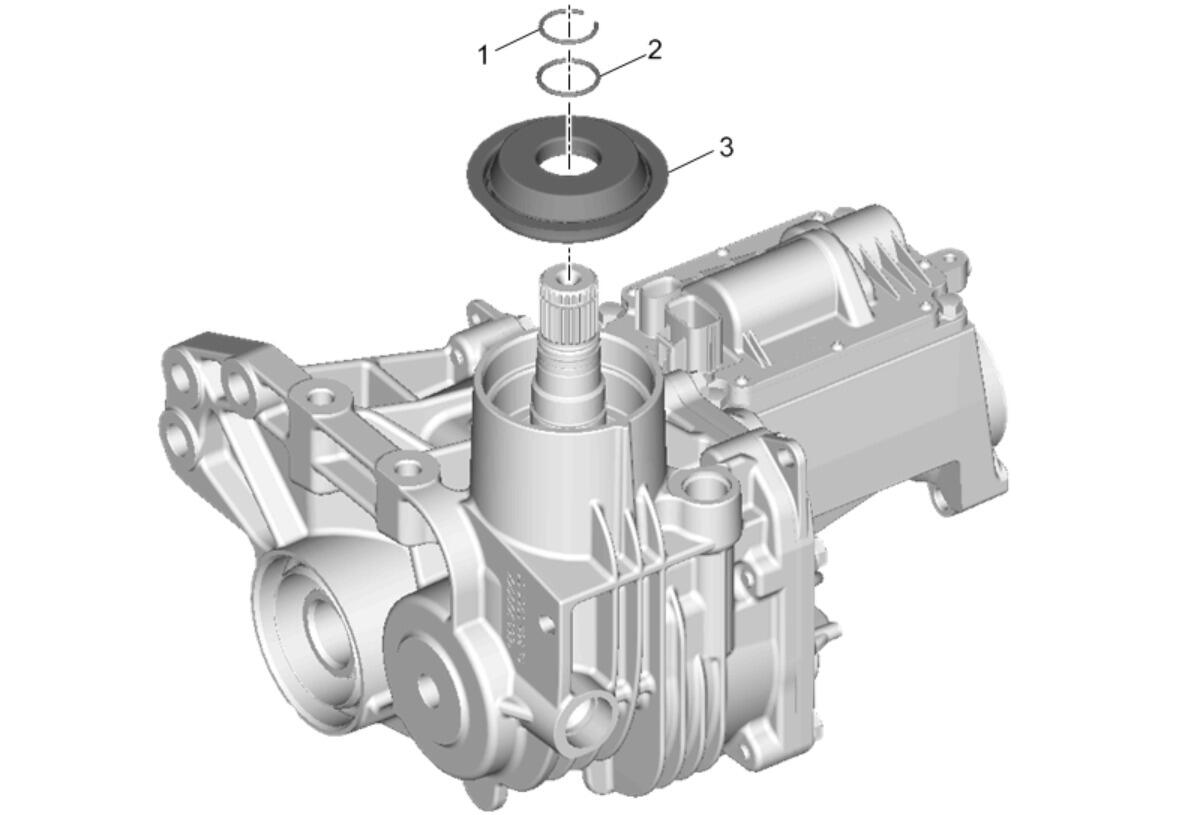

Callout	Component Name
1	Power Transfer Unit Propeller Shaft Retainer Procedure Remove and DISCARD the retainer.
2	Power Transfer Unit Propeller Shaft Seal O-Ring
3	Power Transfer Unit Propeller Shaft Seal Procedure Use a screwdriver to remove the seal from the housing. Remove the inner part of the seal first and then the outer part of the seal. Use care to prevent damage to the housing seal bore or shaft sealing surface. The seal is to be removed in two pieces. Remove and DISCARD the seal.

Callout

Component Name

Power Transfer Unit Propeller Shaft Retainer
Procedure
Remove and DISCARD the retainer.

Power Transfer Unit Propeller Shaft Seal O-Ring

Power Transfer Unit Propeller Shaft Seal

Procedure

Use a screwdriver to remove the seal from the housing. Remove the inner part of the seal first and then the outer part of the seal. Use care to prevent damage to the housing seal bore or shaft sealing surface. The seal is to be removed in two pieces.
Remove and DISCARD the seal.
